Parts Book

103820-2

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 1 Item:

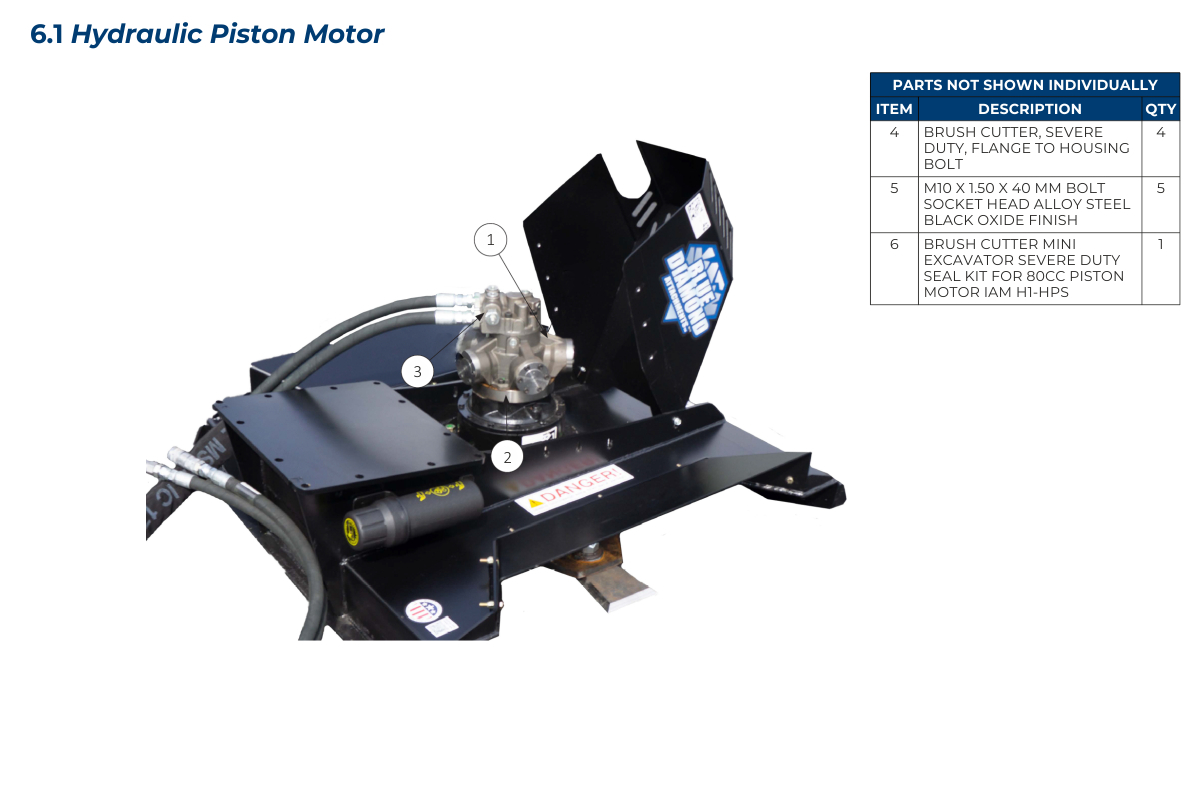

203800 - BRUSH CUTTER, MINI EXCAVATOR, SEVERE DUTY, 80CC PISTON MOTOR WITH INTEGRATED RELIEF BLOCK

 Qty Per: 1 Price:
$2,889.00
Stock:
In Stock
Qty:
Ref: 4 Item:

203811 - BRUSH CUTTER, SEVERE DUTY, FLANGE TO HOUSING BOLT

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 2 Item:

203810 - BRUSH CUTTER, SEVERE DUTY, MINI EXCAVATOR, 80CC MOTOR MOUNT FLANGE

 Qty Per: 1 Price:
$395.38
Stock:
In Stock
Qty:
Ref: 5 Item:

299032 - M10 X 1.50 X 40 MM BOLT SOCKET HEAD ALLOY STEEL BLACK OXIDE FINISH

 Qty Per: 5 Price: N/A Stock:
Unavailable
Ref: 3 Item:

203816 - BRUSH CUTTER MINI EXCAVATOR SEVERE DUTY VALVE CARTRIDGE FOR 80CC IAM MOTOR - DIRECT ACTING (VLP150)

If your unit has FPM P 150 on the valves, use PN 203815

Qty Per: 2 Price:
$397.17
Stock:
In Stock
Qty:
Ref: 6 Item:

203814 - BRUSH CUTTER MINI EXCAVATOR SEVERE DUTY SEAL KIT FOR 80CC PISTON MOTOR IAM H1-HPS (INCLUDES CYL./DIST SEALS)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 7 Item:

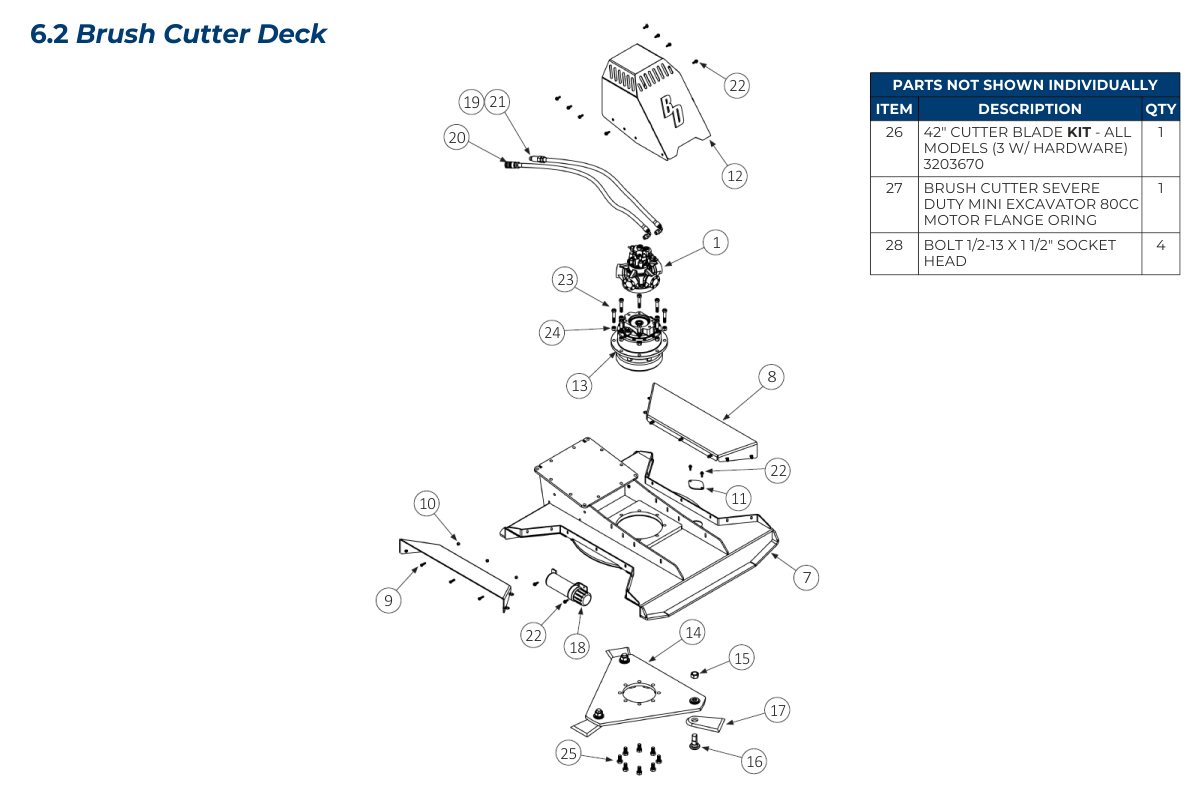

203851-2 - BRUSH CUTTER MINI EXCAVATOR SEVERE DUTY SERIES 2 DECK WELDMENT WITH HOOD FLARES AND ACCESS COVER 42"

 Qty Per: 1 Price:
$4,631.00
Stock:
Low Stock
Qty:
Ref: 12 Item:

203845-2 - BRUSH CUTTER MINI EXCAVATOR SEVERE DUTY SERIES 2 42" MOTOR COVER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 8 Item:

203855 - BRUSH CUTTER, MINI EXCAVATOR, SEVERE DUTY, SIDE DELECTOR WELDMENT (SET OF 2), INCLUDES BOLTS AND NUTS

 Qty Per: 1 Price:
$677.61
Stock:
In Stock
Qty:
Ref: 27 Item:

203831 - BRUSH CUTTER SEVERE DUTY MINI EXCAVATOR 80CC MOTOR FLANGE ORING

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 9 Item:

299428 - BOLT GRADE 8 HEX HEAD 3/8"-16 X 1-1/2"

 Qty Per: 14 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 37 Item:

202816 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BEARING-CUP

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 10 Item:

299625 - NYLOCK NUT GRADE 8 HEX 3/8"-16

 Qty Per: 14 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 38 Item:

202818 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BEARING-CONE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 11 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:
Ref: 45 Item:

202832 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 PLUG-PIPE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 13 Item:

203350 - BRUSH CUTTER DIRECT DRIVE ASSEMBLY FOR SEVERE DUTY SERIES 2 BRUSH CUTTER

If your unit has a PlanStar drive, use PSR100A8

Qty Per: 1 Price:
$3,189.00
Stock:
In Stock
Qty:
Ref: 50 Item:

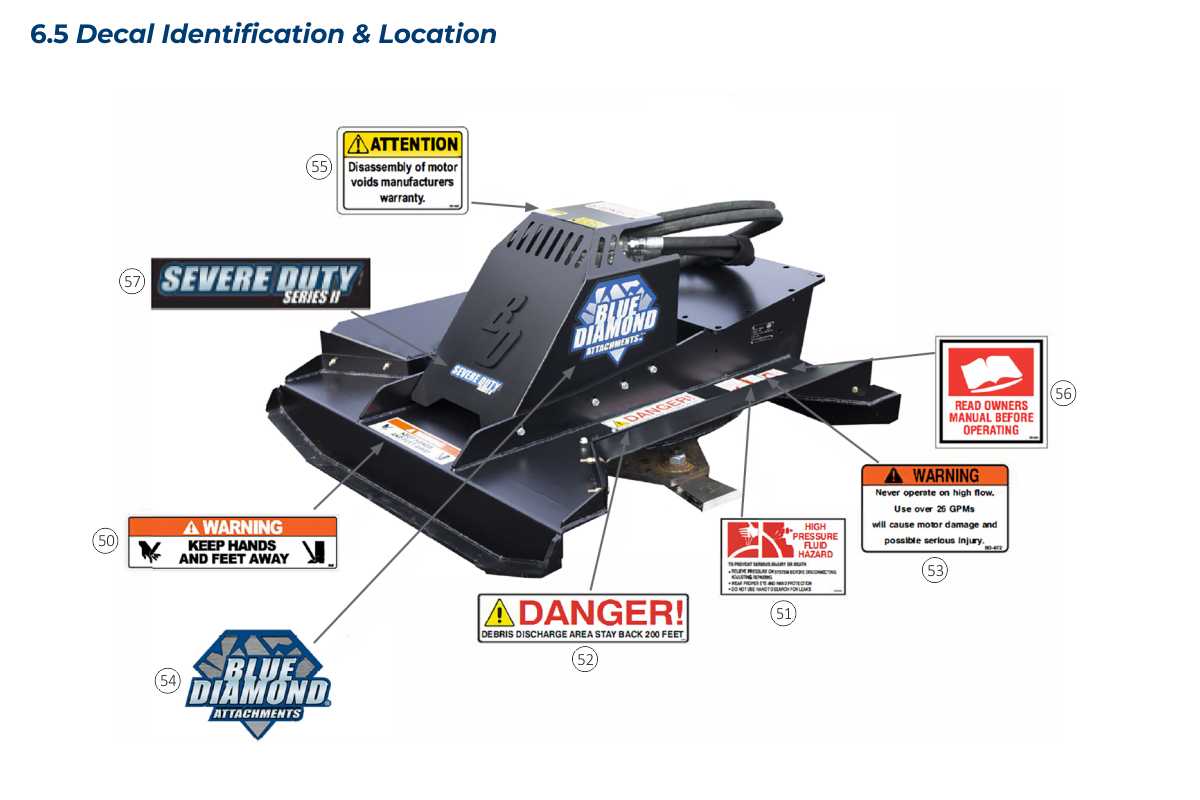

BD-081 - Decal - WARNING Keep Hands and Feet Away 3"x12"

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 14 Item:

203676-2 - BRUSH CUTTER SEVERE DUTY SERIES 2 MINI-EX 42" BLADE CARRIER 3/4" THICK WITH 3/4" BOLT HOLES

 Qty Per: 1 Price:
$1,451.00
Stock:
Low Stock
Qty:
Ref: 51 Item:

BD-007 - DECAL, HIGH PRESSURE FLUID HAZARD 3.0 X 4.75

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 15 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 52 Item:

BD-055 - DECAL, DANGER DEBRIS DISCHARGE AREA STAY BACK 200 FEET 3.0 X 11.9062

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 16 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 53 Item:

BD-072 - DECAL, WARNING - USE OVER 26 GPMs; 2.5 X 4.0

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 17 Item:

203670 - BRUSH CUTTER, MINI-EX BLADE FOR 42" (FITS 3 BLADE STYLE CARRIER)

For complete kit with hardware, use 203670-KIT

Qty Per: 3 Price:
$110.85
Stock:
In Stock
Qty:
Ref: 54 Item:

BD-057 - DECAL, BLUE DIAMOND 2.9' X 17.364' (LRG)

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 18 Item:

216402 - STORAGE TUBE FOR MANUAL

 Qty Per: 1 Price:
$24.53
Stock:
In Stock
Qty:
Ref: 55 Item:

BD-082 - Decal - ATTENTION Disassembly of motor voids warranty 2"x3"

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 19 Item:

203039 - BRUSH CUTTER HOSE SET ASSEMBLY, LOW FLOW W/SLEEVE NO COUPLERS (Heavy Duty Mini Ex and Standard Flow Extreme Duty Skid Steer) STRAIGHT ENDS

 Qty Per: 1 Price:
$483.04
Stock:
In Stock
Qty:
Ref: 56 Item:

BD-001 - DECAL, READ OWNERS MANUAL 3x3

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 20 Item:

224011 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$84.52
Stock:
In Stock
Qty:
Ref: 57 Item:

BD-118-2 - DECAL - SEVERE DUTY SERIES 2 - 1.875" X 8.125"

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 21 Item:

224012 - COUPLER, MALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$70.73
Stock:
In Stock
Qty:
Ref: 22 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 12 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 23 Item:

299445 - BOLT GRADE 8 HEX 5/8-11 X 3 1/4"

 Qty Per: 8 Price:
$11.31
Stock:
In Stock
Qty:
Ref: 24 Item:

299627 - NYLOCK NUT GRADE 8 HEX 5/8"-11

 Qty Per: 8 Price:
$4.24
Stock:
In Stock
Qty:
Ref: 25 Item:

299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2"

Units made 2016 & earlier with 1/2" blade carrier bolts use 203062 and 299655

Qty Per: 8 Price:
$15.39
Stock:
In Stock
Qty:
Ref: 26 Item:

203670-KIT - 42" CUTTER BLADE KIT - ALL MODELS (3 W/ HARDWARE) 3203670

 Qty Per: 1 Price:
$452.39
Stock:
In Stock
Qty:
Ref: 28 Item:

299331 - BOLT 1/2-13 X 1 1/2" SOCKET HEAD (POST DRIVER BOLT 6156)

 Qty Per: 4 Price:
$5.65
Stock:
In Stock
Qty:
Ref: 29 Item:

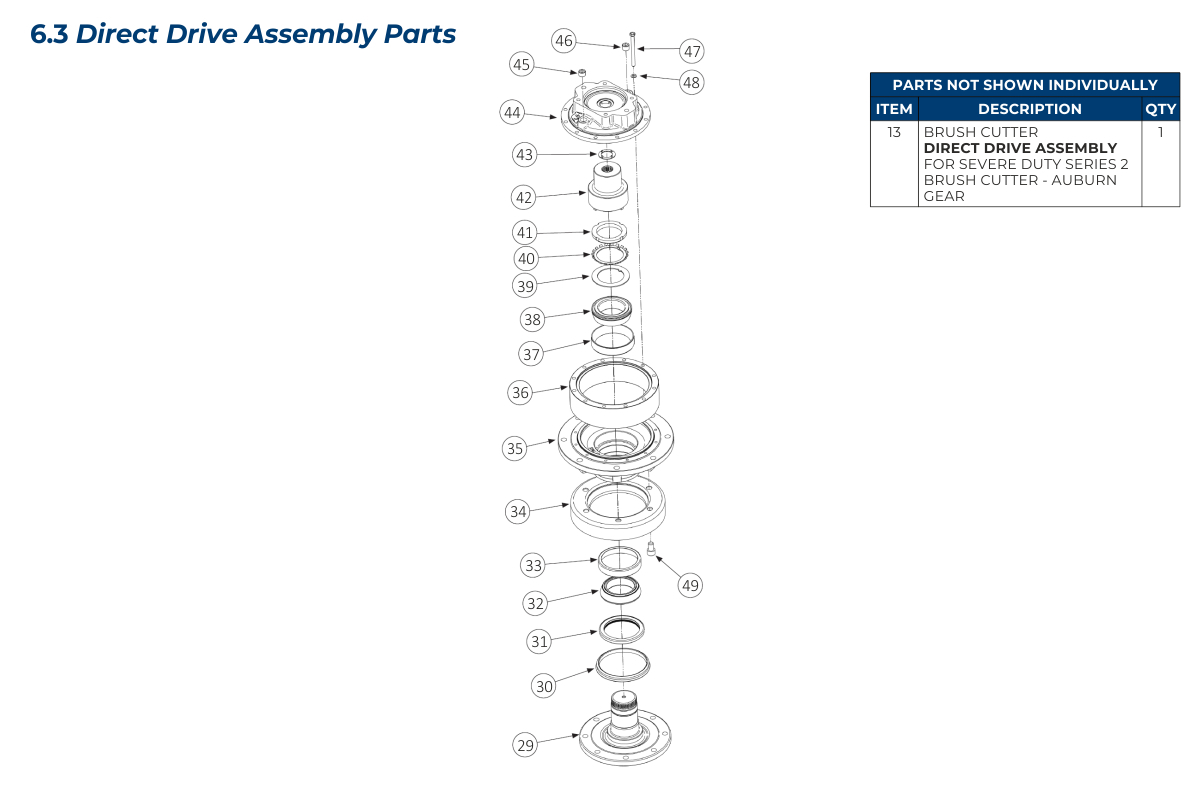

202800 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SHAFT OUT PUT (SPINDLE)

 Qty Per: 1 Price:
$1,803.00
Stock:
Low Stock
Qty:
Ref: 30 Item:

202802 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SEAL - V RING

 Qty Per: 1 Price:
$219.05
Stock:
In Stock
Qty:
Ref: 31 Item:

202804 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SEAL - OIL

 Qty Per: 1 Price:
$84.11
Stock:
Limited Stock - Call for Availability
Qty:
Ref: 32 Item:

202806 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BEARING - CONE

 Qty Per: 1 Price:
$325.84
Stock:
In Stock
Qty:
Ref: 33 Item:

202808 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BEARING - CUP

 Qty Per: 1 Price:
$204.40
Stock:
In Stock
Qty:
Ref: 34 Item:

202810 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 GUARD

 Qty Per: 1 Price:
$265.43
Stock:
In Stock
Qty:
Ref: 35 Item:

202812 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 HUB

 Qty Per: 1 Price:
$1,862.00
Stock:
Low Stock
Qty:
Ref: 36 Item:

202814 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 GEAR - RING

 Qty Per: 1 Price:
$904.73
Stock:
Low Stock
Qty:
Ref: 39 Item:

202820 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - THRUST

 Qty Per: 1 Price:
$36.95
Stock:
In Stock
Qty:
Ref: 40 Item:

202822 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - LOCK

 Qty Per: 1 Price:
$71.71
Stock:
In Stock
Qty:
Ref: 41 Item:

202824 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 NUT - LOCK

 Qty Per: 1 Price:
$187.01
Stock:
Low Stock
Qty:
Ref: 42 Item:

202826 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 COUPLING

 Qty Per: 1 Price:
$655.82
Stock:
Low Stock
Qty:
Ref: 43 Item:

202828 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - THRUST 2

 Qty Per: 1 Price:
$13.01
Stock:
In Stock
Qty:
Ref: 44 Item:

202830 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 COVER

 Qty Per: 1 Price:
$862.77
Stock:
Low Stock
Qty:
Ref: 46 Item:

202834 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 PLUG - PIPE 2

 Qty Per: 1 Price:
$6.04
Stock:
In Stock
Qty:
Ref: 47 Item:

202836 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BOLT - HEX HEAD

 Qty Per: 12 Price:
$10.04
Stock:
In Stock
Qty:
Ref: 48 Item:

202838 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - FLAT

 Qty Per: 12 Price:
$10.87
Stock:
In Stock
Qty:
Ref: 49 Item:

202840 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SCREW - SKT - HD CAP

 Qty Per: 6 Price:
$5.04
Stock:
In Stock
Qty:
