Parts Book

103875

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 5 Item:

203877 - BRUSH CUTTER SWING ARM STYLE MOTOR COVER

 Qty Per: 1 Price:
$302.87
Stock:
Low Stock
Qty:

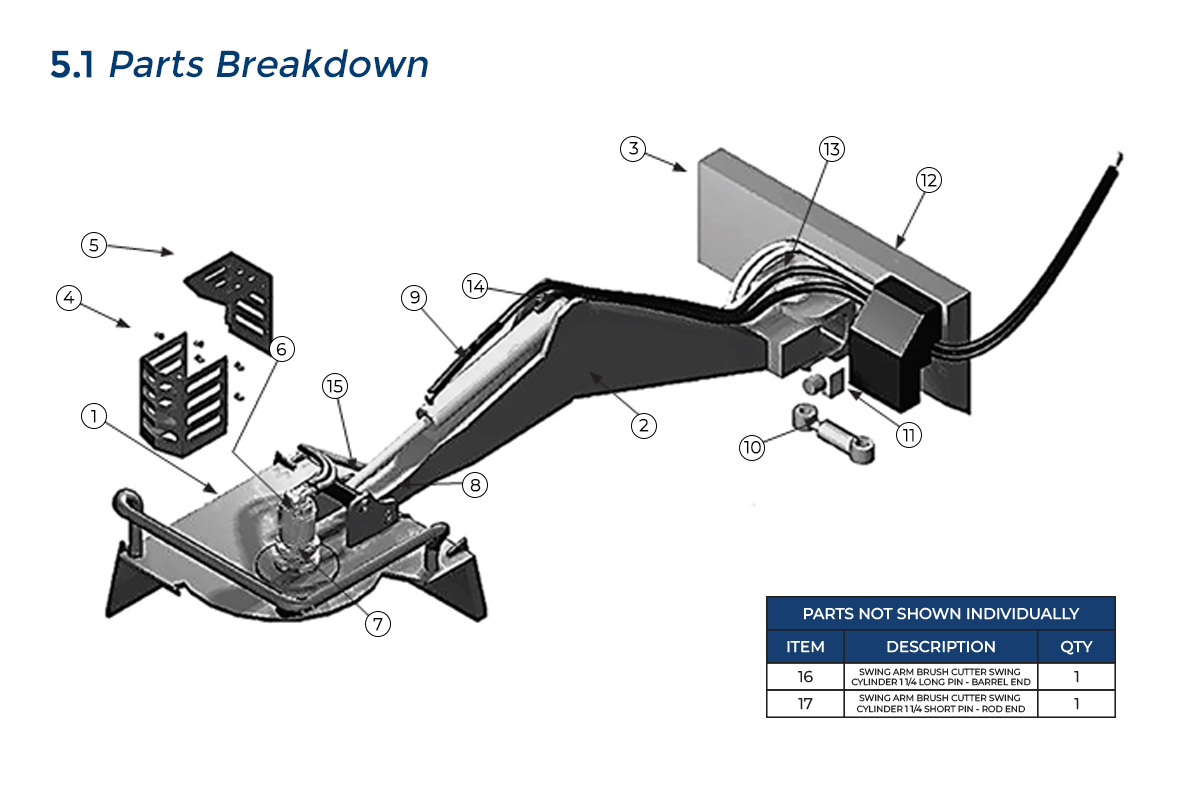

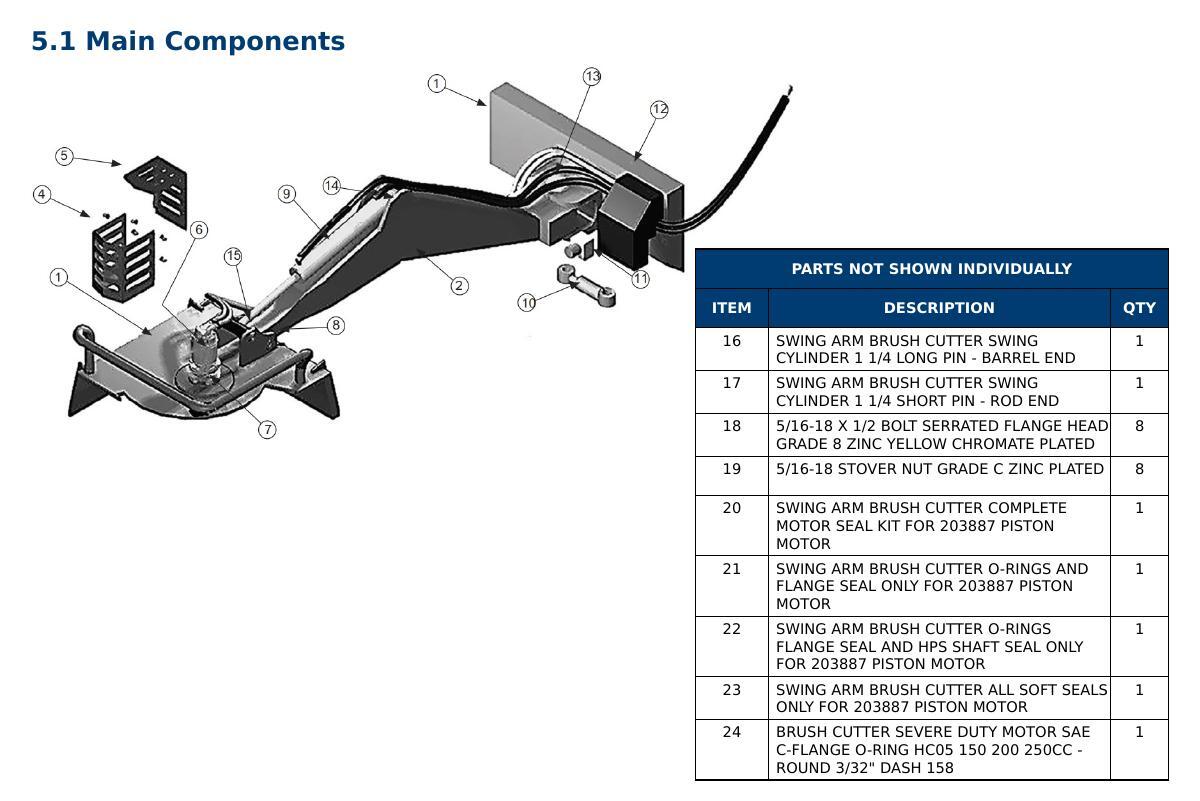

Ref: 1 Item:

203950 - SWING ARM BRUSH CUTTER DECK WELDMENT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 10 Item:

203874 - BRUSH CUTTER SWING ARM SWING CYLINDER 1.25X1.25

 Qty Per: 1 Price:
$644.56
Stock:
In Stock
Qty:
Ref: 2 Item:

203951 - SWING ARM BRUSH CUTTER BOOM WELDMENT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 20 Item:

203872 - BRUSH CUTTER SWING ARM BLADE

 Qty Per: 2 Price:
$198.44
Stock:
In Stock
Qty:
Ref: 3 Item:

203952 - SWING ARM BRUSH CUTTER MOUNT FRAME WELDMENT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 23 Item:

203876 - BRUSH CUTTER SWING ARM BLADE CARRIER ASSEMBLY (W/ BLADES)

 Qty Per: 6 Price:
$1,254.00
Stock:
Low Stock
Qty:
Ref: 4 Item:

203953 - SWING ARM BRUSH CUTTER MOTOR GUARD

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: Item:

203874 - BRUSH CUTTER SWING ARM SWING CYLINDER 1.25X1.25

 Qty Per: 1 Price:
$644.56
Stock:
In Stock
Qty:
Ref: 6 Item:

203887 - Piston Motor 17-30 GPM​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 33 Item:

224009 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" Body 1/2" O-RING #8

 Qty Per: 1 Price:
$99.98
Stock:
In Stock
Qty:
Ref: 7 Item:

203970 - BRUSH CUTTER SWING ARM DIRECT DRIVE ASSEMBLY

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 34 Item:

224010 - COUPLER, MALE FLAT FACE STYLE, 1/2" Body,1/2" O-RING #8

 Qty Per: 1 Price:
$68.59
Stock:
Low Stock
Qty:
Ref: 8 Item:

203957 - SWING ARM BRUSH CUTTER DECK TILT PIVOT PIN

 Qty Per: 3 Price: N/A Stock:
Unavailable
Ref: 45 Item:

203888 - SWING ARM BRUSH CUTTER CASE DRAIN HOSE ONLY 19FT LONG

 Qty Per: 1 Price:
$399.12
Stock:
Limited Stock - Call for Availability
Qty:
Ref: 9 Item:

203884 - SWING ARM BRUSH CUTTER TILT CYLINDER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 49 Item:

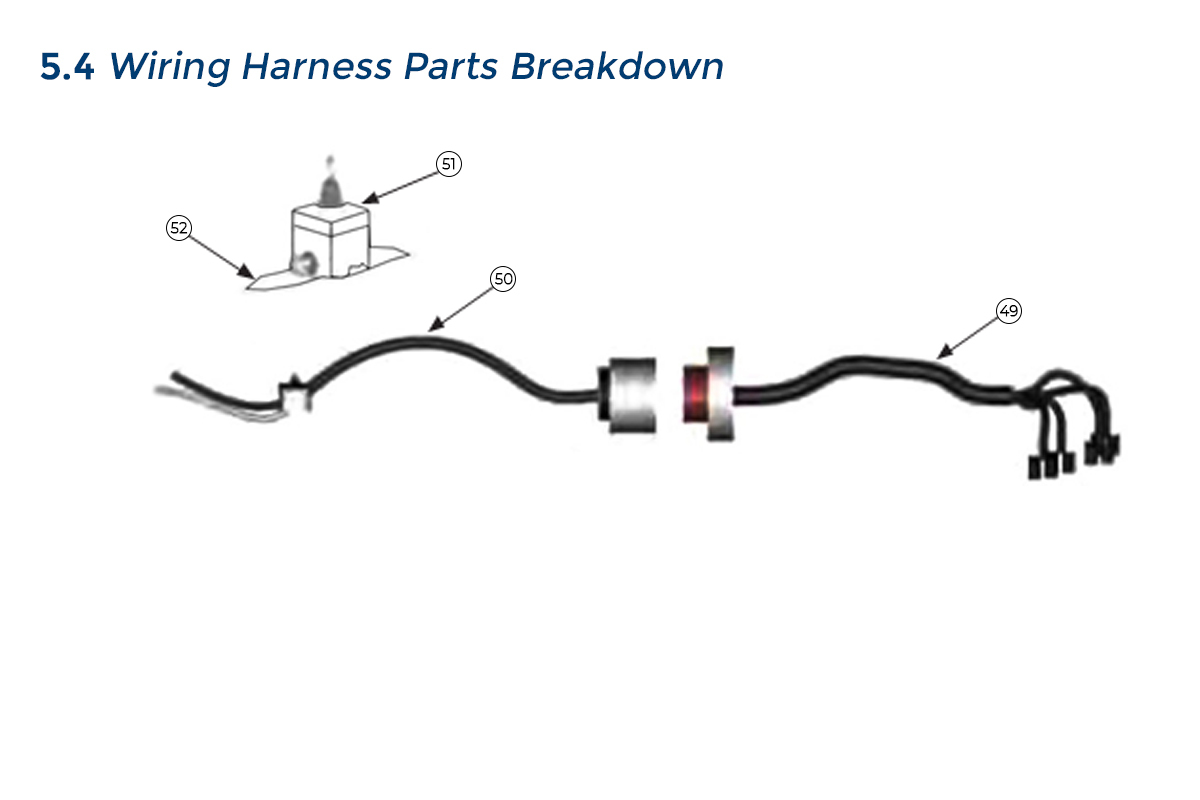

103884 - WIRE HARNESS ATTACHMENT SIDE FOR SWING ARM BRUSH CUTTER AND SEVERE DUTY SERIES 2 ANGLE BROOM

 Qty Per: 1 Price:
$597.79
Stock:
Low Stock
Qty:
Ref: 11 Item:

203955 - SWING ARM BRUSH CUTTER SWING BUMPER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 12 Item:

203956 - SWING ARM BRUSH CUTTER VALVE BLOCK COVER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 13 Item:

203871 - BRUSH CUTTER, SWING ARM STYLE, SWING ARM PIVOT PIN

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 14 Item:

203964 - SWING ARM BRUSH CUTTER TILT CYLINDER PIN - BARREL END

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 15 Item:

203965 - SWING ARM BRUSH CUTTER TILT CYLINDER PIN - ROD END

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 16 Item:

203962 - SWING ARM BRUSH CUTTER SWING CYLINDER 1 1/4 LONG PIN - BARREL END

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 17 Item:

203963 - SWING ARM BRUSH CUTTER SWING CYLINDER 1 1/4 SHORT PIN - ROD END

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 18 Item:

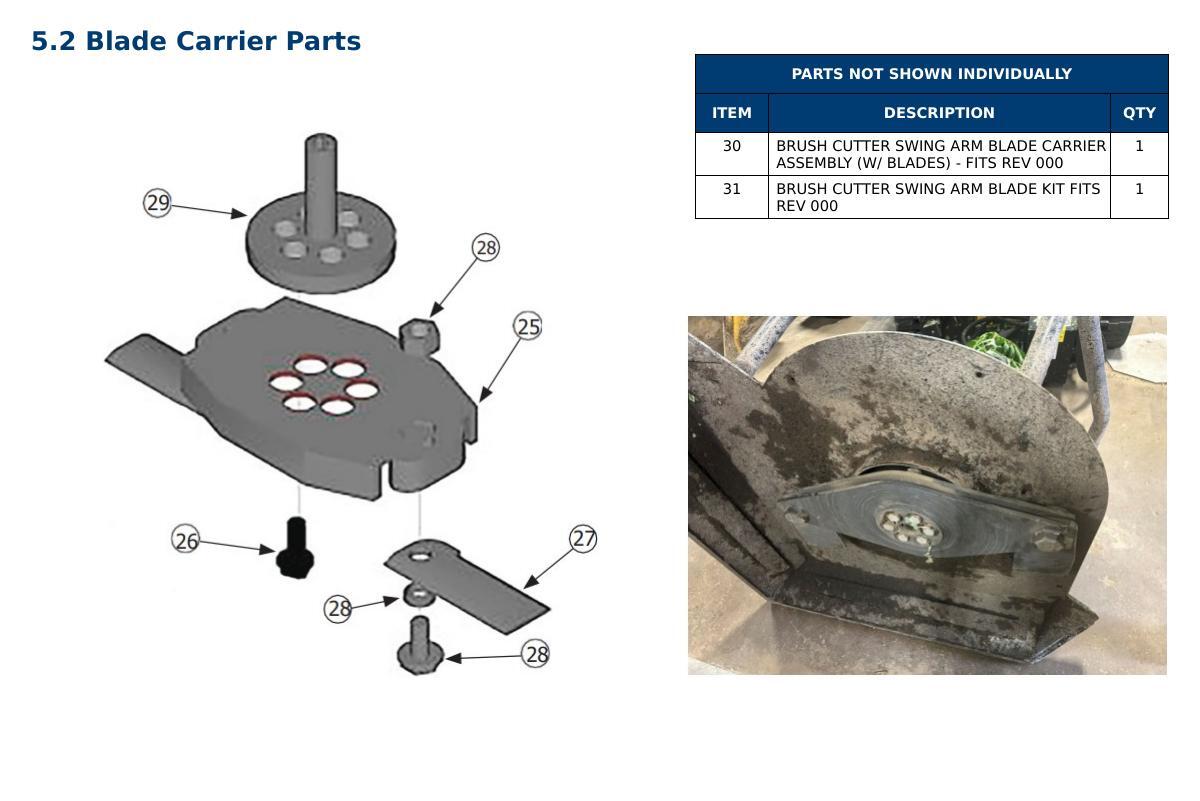

203958 - Blade Carrier

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 19 Item:

299482 - 3/4-16 X 2 3/4 BOLT HEX HEAD GRADE 8 ZINC YELLOW CHROMATE PLATED

 Qty Per: 6 Price: N/A Stock:
Unavailable
Ref: 21 Item:

203873 - REV 000- BRUSH CUTTER SWING ARM BLADE BOLT / BUSHING / NUT SET

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 22 Item:

203966 - SWING ARM BRUSH CUTTER SPINDLE

 Qty Per: 6 Price: N/A Stock:
Unavailable
Ref: 24 Item:

203872-KIT - BRUSH CUTTER SWING ARM BLADE KIT FITS REV 000

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 25 Item:

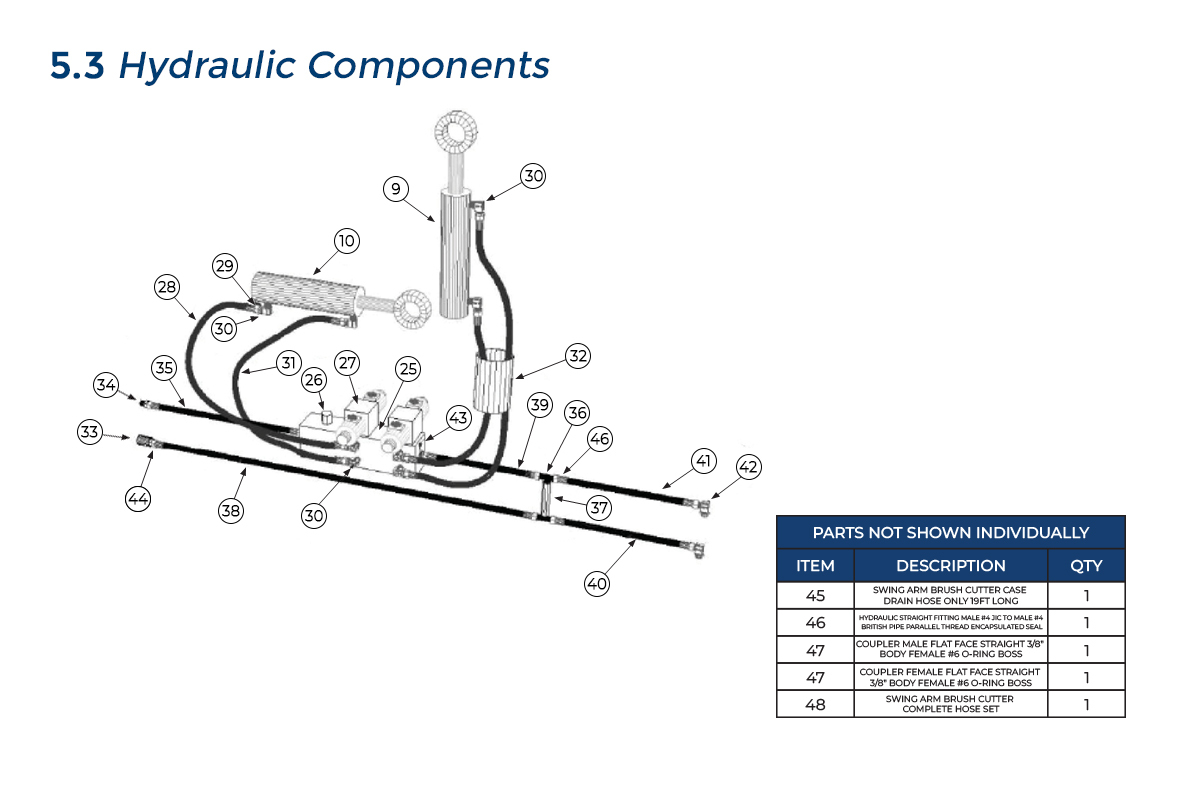

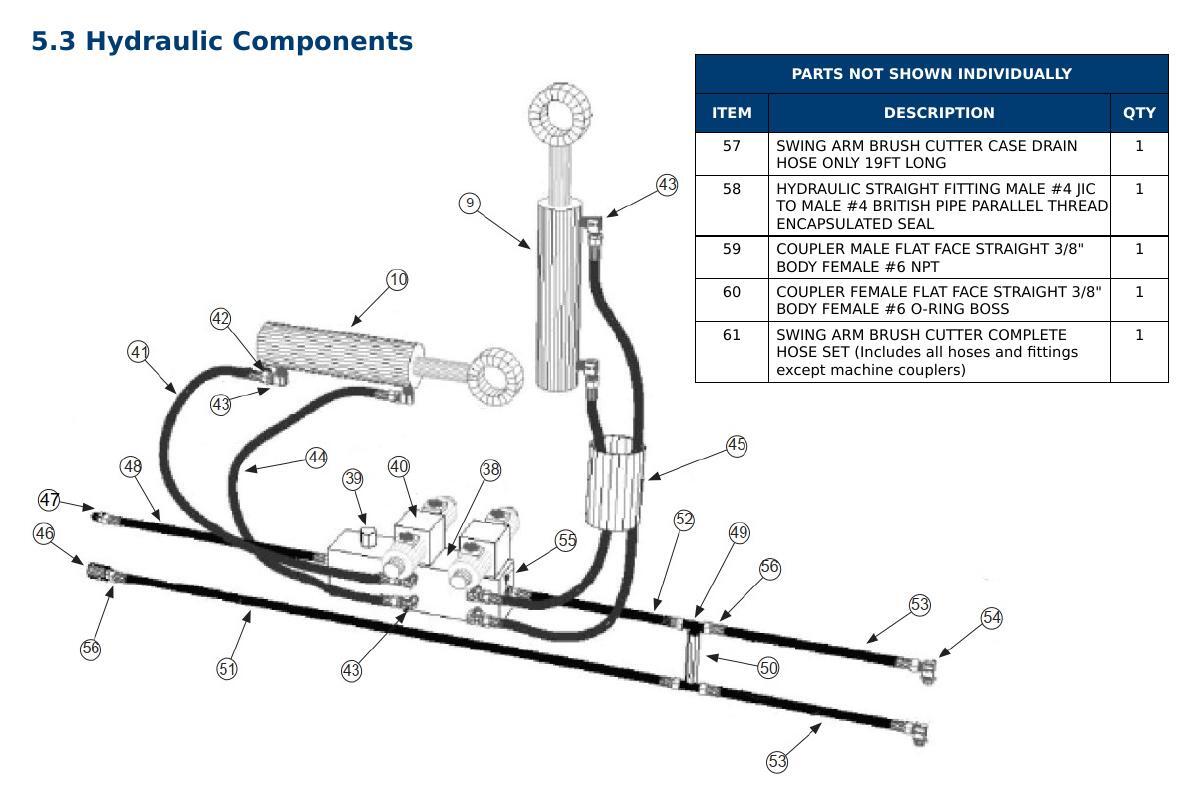

203879 - SWING ARM BRUSH CUTTER HYDRAULIC MANIFOLD

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 26 Item:

203881 - SWING ARM BRUSH CUTTER FLOW CONTROL

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 27 Item:

216351 - BROOM SEVERE DUTY SERIES 2 ANGLE HYDRAULIC ANGLE SOLENOID VALVE - SMALL

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 28 Item:

-

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 29 Item:

-

 Qty Per: 8 Price: N/A Stock:
Unavailable
Ref: 30 Item:

-

 Qty Per: 8 Price: N/A Stock:
Unavailable
Ref: 31 Item:

-

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 32 Item:

-

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 35 Item:

203969 - BRUSH CUTTER SWING ARM STYLE MACHINE RETURN HOSE NO COUPLER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 36 Item:

295050-M12JIC-M12JIC-M12JIC - HYDRAULIC TEE FITTING MALE #12 JIC TO MALE #12 JIC TO MALE #12 JIC

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 37 Item:

203566 - DISC MULCHER H-VALVE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 38 Item:

203968 - BRUSH CUTTER SWING ARM STYLE MACHINE PRESSURE HOSE NO COUPLER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 39 Item:

-

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 40 Item:

-

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 41 Item:

-

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 42 Item:

-

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 43 Item:

-

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: Item:

203884 - SWING ARM BRUSH CUTTER TILT CYLINDER

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 44 Item:

-

 Qty Per: 10 Price: N/A Stock:
Unavailable
Ref: 46 Item:

295010-M04JIC-M04BSPPES - HYDRAULIC STRAIGHT FITTING MALE #4 JIC TO MALE #4 BRITISH PIPE PARALLEL THREAD ENCAPSULATED SEAL

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 47 Item:

224071 - COUPLER MALE FLAT FACE STRAIGHT 3/8" BODY FEMALE #6 O-RING BOSS

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 47 Item:

224067 - COUPLER FEMALE FLAT FACE STRAIGHT 3/8" BODY FEMALE #6 O-RING BOSS

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 48 Item:

203883 - SWING ARM BRUSH CUTTER COMPLETE HOSE SET (Includes all hoses and fittings except machine couplers)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 50 Item:

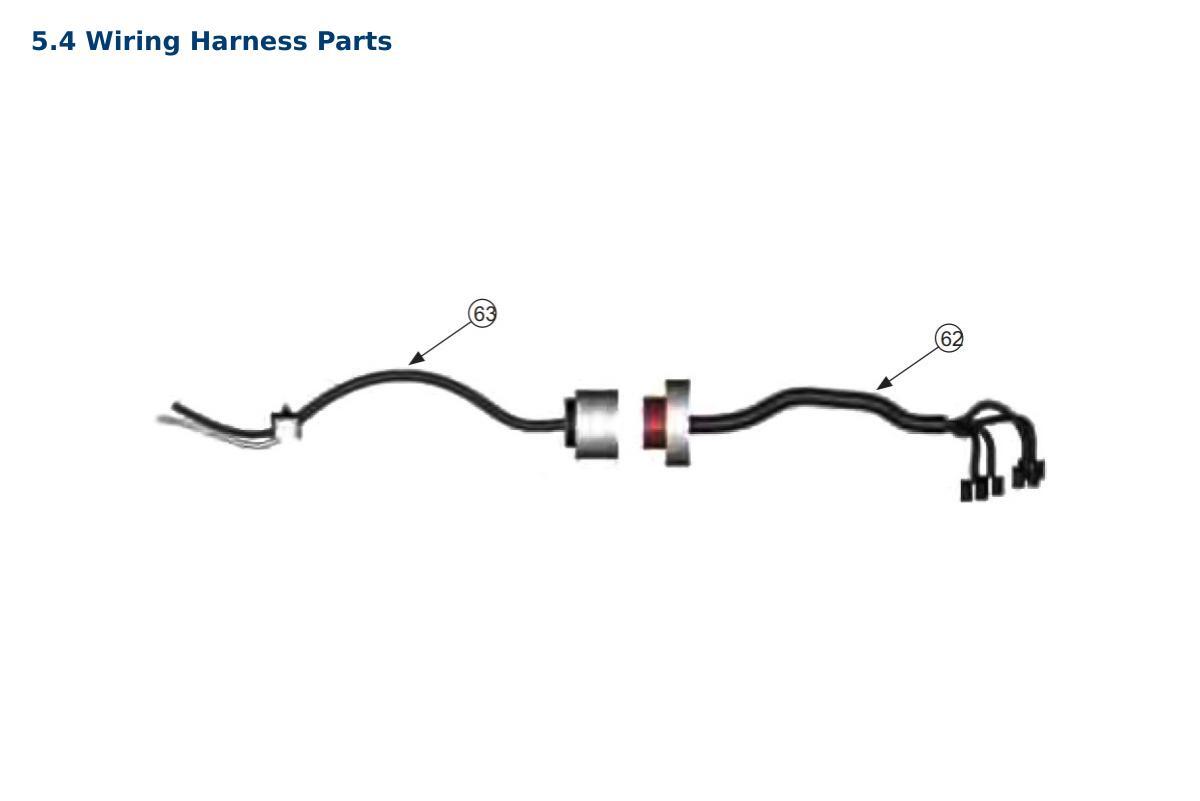

103885​ - Wire Harness Machine Side Universal​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 50 Item:

103887​ - Wire Harness Machine Side 14-Pin​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 50 Item:

103888​ - Wire Harness Machine Side Bobcat 7-Pin​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 50 Item:

103889​ - Wire Harness Machine Side 8-Pin​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 51 Item:

203960 - SWING ARM BRUSH CUTTER JOYSTICK CONTROL

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 52 Item:

203961 - SWING ARM BRUSH CUTTER JOYSTICK LEG STRAP

 Qty Per: 1 Price: N/A Stock:
Unavailable

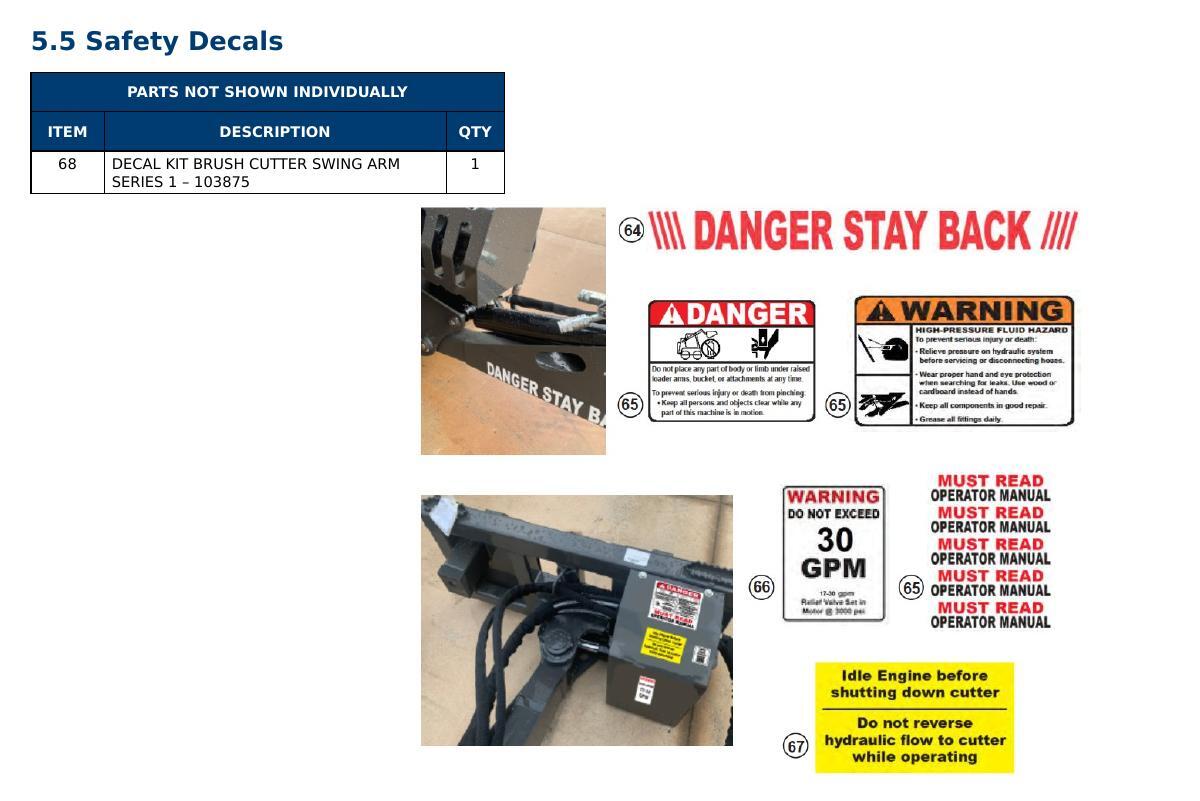

Ref: 53 Item:

- Danger, Stay Back​

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 54 Item:

- Danger, Pinch Points​

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 55 Item:

- Warning, High Pressure Fluid Hazard​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 56 Item:

- Warning, do Not Exceed 30 GPM​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 57 Item:

- Must Read Operator Manual​

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 58 Item:

- Idle Engine Before Disengaging Cutter​

 Qty Per: 1 Price: N/A Stock:
Unavailable
