Parts Book

103920

Revision: 001
Ref Item Qty Per Price Stock Qty
Ref: 7 Item:

299426 - BOLT GRADE 8 HEX HEAD 3/8"-16 X 1-1/4"

 Qty Per: 22 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 1 Item:

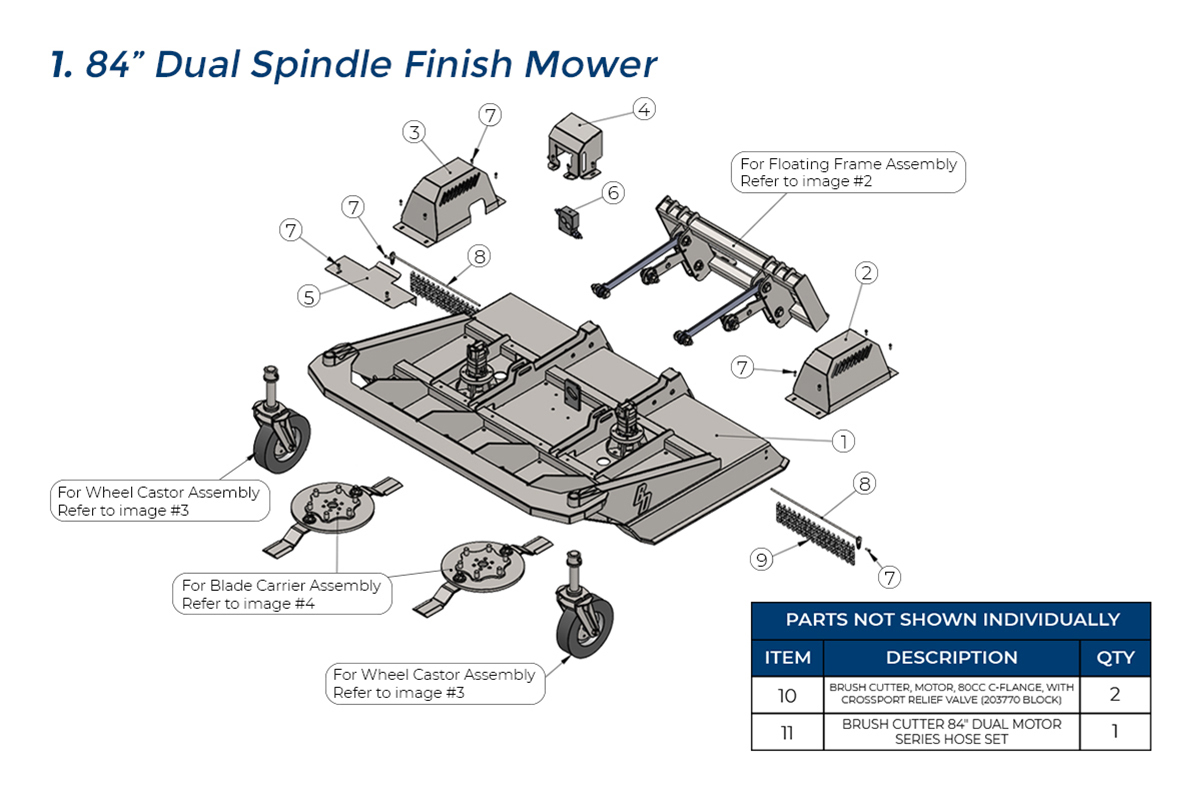

202900 - BRUSH CUTTER 84" DUAL MOTOR SERIES DECK WELDMENT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 9 Item:

203045 - BRUSH CUTTER STD 4 LINK DISCHARGE CHAIN

 Qty Per: 32 Price:
$16.20
Stock:
In Stock
Qty:
Ref: 2 Item:

202902 - BRUSH CUTTER 84" DUAL MOTOR SERIES LEFT MOTOR COVER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 10 Item:

203760 - BRUSH CUTTER, MOTOR, 80CC C-FLANGE, WITH CROSSPORT RELIEF VALVE (203770 BLOCK)

 Qty Per: 2 Price:
$1,757.00
Stock:
In Stock
Qty:
Ref: 3 Item:

202904 - BRUSH CUTTER 84" DUAL MOTOR SERIES RIGHT MOTOR COVER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 17 Item:

299418 - BOLT GRADE 8 HEX HEAD 1/4"-20 X 1-1/2"

 Qty Per: 8 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 4 Item:

202906 - BRUSH CUTTER 84" DUAL MOTOR SERIES RELIEF BLOCK COVER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 18 Item:

299615 - NYLOCK NUT GRADE 8 HEX 1/4"-20

 Qty Per: 8 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 5 Item:

202908 - BRUSH CUTTER 84" DUAL MOTOR SERIES HOSE COVER PLATE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 19 Item:

299630 - NYLOCK NUT 1"

 Qty Per: 10 Price:
$11.66
Stock:
In Stock
Qty:
Ref: 6 Item:

202915 - BRUSH CUTTER 84" DUAL MOTOR SERIES HYDRAULIC RELIEF BLOCK

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 23 Item:

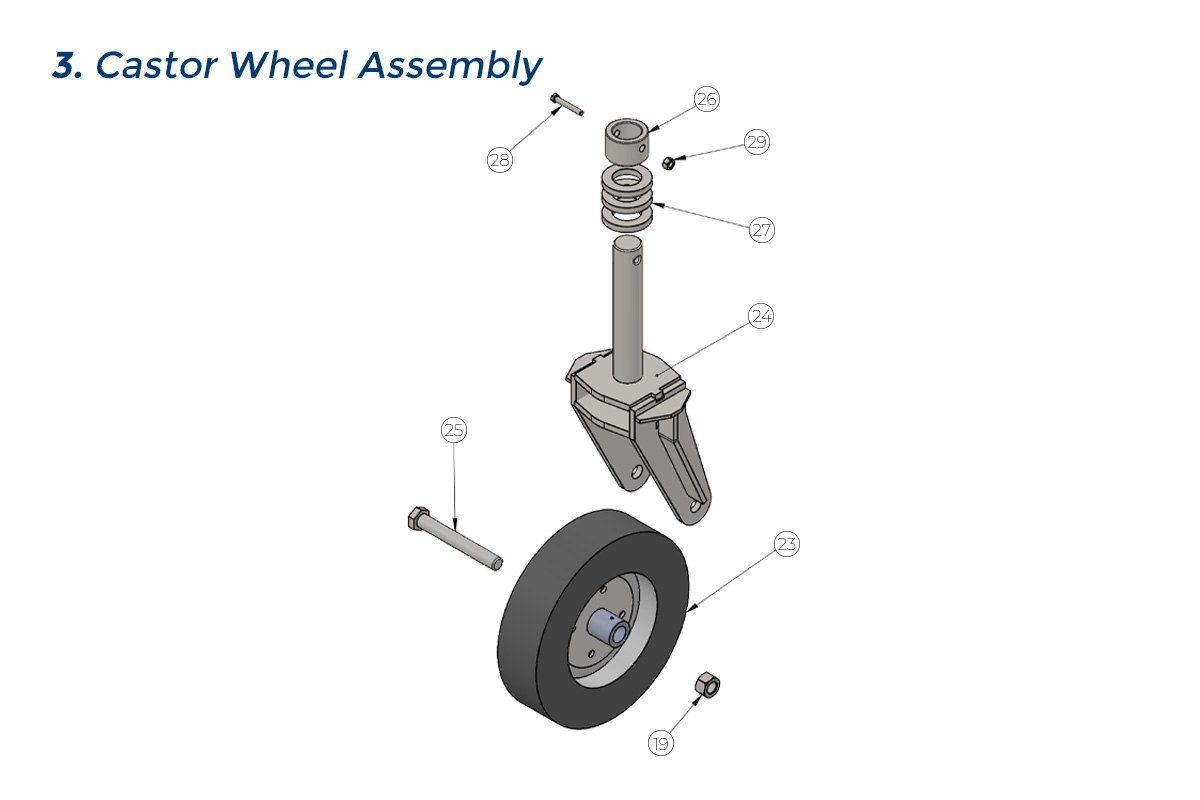

202950 - BRUSH CUTTER 84" DUAL MOTOR SERIES SOLID RUBBER TIRE WITH HUB ASSEMBLY

 Qty Per: 2 Price:
$451.39
Stock:
In Stock
Qty:
Ref: 8 Item:

202920 - BRUSH CUTTER 84" DUAL MOTOR SERIES CHAIN RETAINER BAR (REQ'S 2)

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 27 Item:

202956 - BRUSH CUTTER 84" DUAL MOTOR SERIES TIRE HEIGHT ADJUSTMENT RINGS (REQ'S 3 PER TIRE)

 Qty Per: 6 Price:
$16.20
Stock:
In Stock
Qty:
Ref: 11 Item:

202901 - BRUSH CUTTER 84" DUAL MOTOR SERIES HOSE SET

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 29 Item:

299618 - NYLOCK NUT GRADE 8 HEX HEAD 1/2"-13

 Qty Per: 2 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 12 Item:

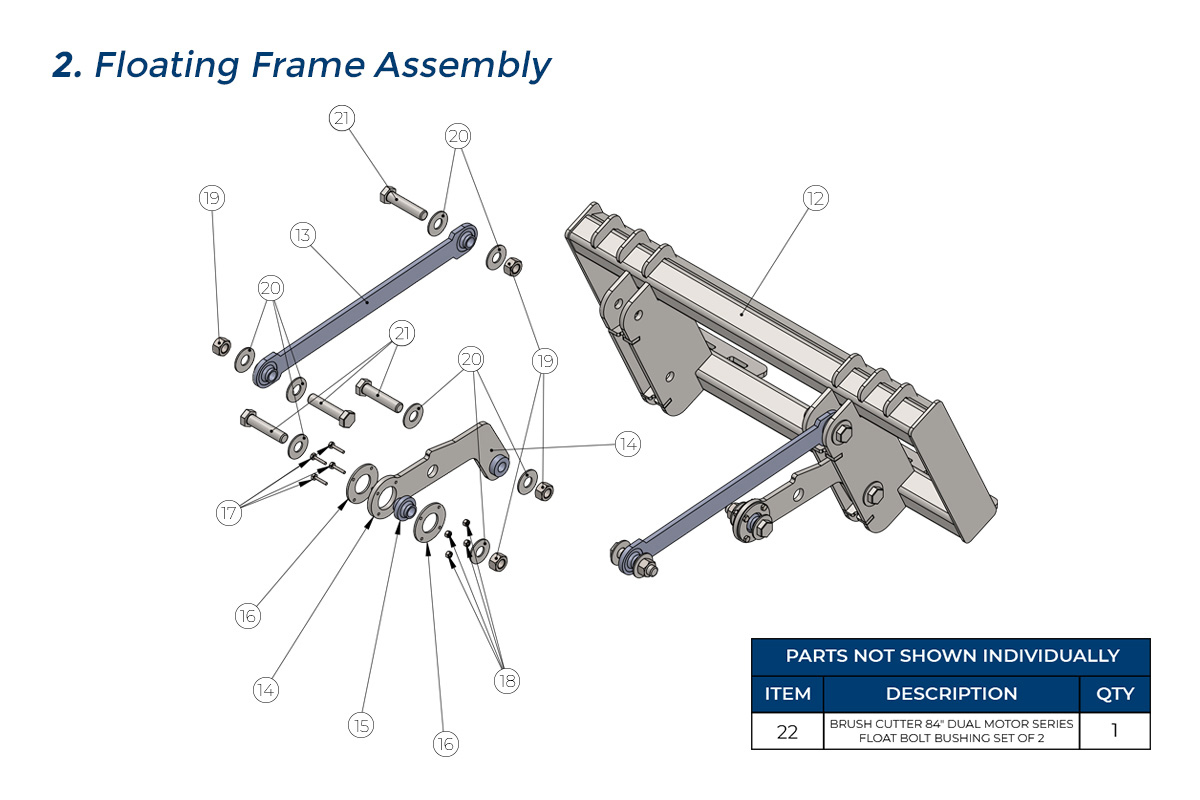

202924 - BRUSH CUTTER 84" DUAL MOTOR SERIES MOUNT PLATE WELDMENT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 31 Item:

203028 - BRUSH CUTTER BLADE, HD Series 2 (13 1/8" LONG FROM THE CENTER OF THE BOLT HOLE) (60" only)

For Kit, use 2030284-KIT

Qty Per: 4 Price:
$117.70
Stock:
In Stock
Qty:
Ref: 21 Item:

299477 - BOLT GRADE 8 HEX HEAD 1" X 4 1/2"

 Qty Per: 8 Price: N/A Stock:
Unavailable
Ref: 32 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 13 Item:

202926 - BRUSH CUTTER 84" DUAL MOTOR SERIES TOP ARM FOR FLOATING PIVOT (REQ'S 2)

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 33 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 14 Item:

202927 - BRUSH CUTTER 84" DUAL MOTOR SERIES BOTTOM ARM FOR FLOATING PIVOT ONE PIECE STYLE (REQ'S 2) - FITS REVISION 002

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 34 Item:

2030284-KIT - FLOATING DECK 84" CUTTER BLADE KIT (4 WITH HARDWARE) 32030284

 Qty Per: 1 Price:
$484.26
Stock:
In Stock
Qty:
Ref: 15 Item:

202940 - BRUSH CUTTER 84" DUAL MOTOR SERIES MAIN FLOATING PIVOT LINK BEARING

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 36 Item:

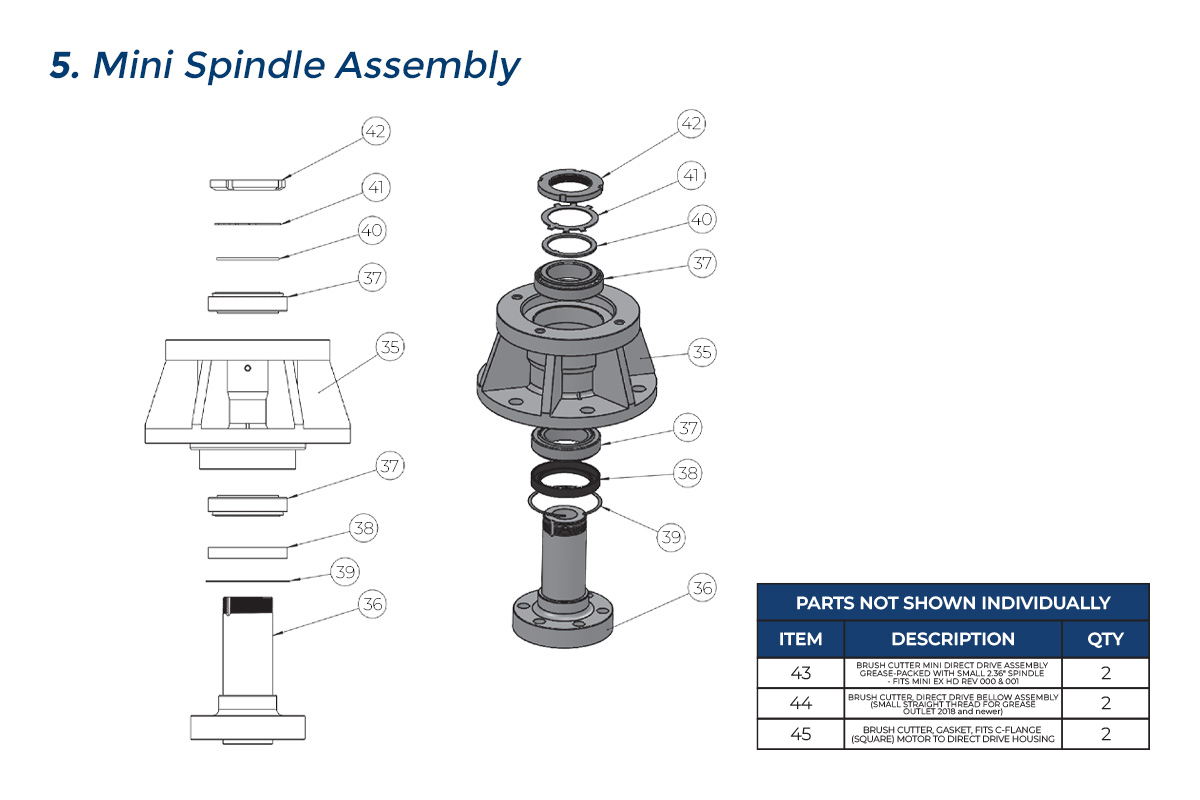

203632 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY, 2.36" DIAMETER

 Qty Per: 2 Price:
$1,126.00
Stock:
Low Stock
Qty:
Ref: 16 Item:

202938 - BRUSH CUTTER 84" DUAL MOTOR SERIES TOP FLOATING ARM BEARING RETAINING PLATE

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 37 Item:

203635 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE, FITS 2.36" SPINDLE

 Qty Per: 4 Price:
$133.85
Stock:
In Stock
Qty:
Ref: 20 Item:

299750 - WASHER ZP 1" SAE

 Qty Per: 16 Price: N/A Stock:
Unavailable
Ref: 38 Item:

203638 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, FITS 2.36" SPINDLE

 Qty Per: 2 Price:
$73.51
Stock:
In Stock
Qty:
Ref: 22 Item:

202903 - BRUSH CUTTER 84" DUAL MOTOR SERIES FLOAT BOLT BUSHING SET OF 2

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 39 Item:

203639 - BRUSH CUTTER DIRECT DRAIN MAIN SEAL KEEPER (SNAP RING) FITS 2.36" SPINDLE

 Qty Per: 2 Price:
$10.60
Stock:
In Stock
Qty:
Ref: 24 Item:

202952 - BRUSH CUTTER 84" DUAL MOTOR SERIES TIRE FORK WELDMENT

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 40 Item:

203640 - BRUSH CUTTER DIRECT DRIVE WASHER, FITS 2.36" SPINDLE

 Qty Per: 2 Price:
$8.10
Stock:
In Stock
Qty:
Ref: 25 Item:

299475 - BOLT GRADE 8 HEX HEAD 1" X 7 1/2"

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 41 Item:

203642 - BRUSH CUTTER DIRECT DRIVE LOCK WASHER, FITS 2.36" SPINDLE

 Qty Per: 2 Price:
$8.10
Stock:
In Stock
Qty:
Ref: 26 Item:

202954 - BRUSH CUTTER 84" DUAL MOTOR SERIES TIRE BUSING 3" OD 2" ID

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 42 Item:

203645 - BRUSH CUTTER DIRECT DRIVE NUT, FITS 2.36" SPINDLE

 Qty Per: 2 Price:
$34.63
Stock:
In Stock
Qty:
Ref: 28 Item:

299437 - BOLT GRADE 8 HEX HEAD 1/2"-13 X 4"

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 43 Item:

203629 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, SMALL 2.36" SPINDLE

 Qty Per: 2 Price:
$1,991.00
Stock:
In Stock
Qty:
Ref: 30 Item:

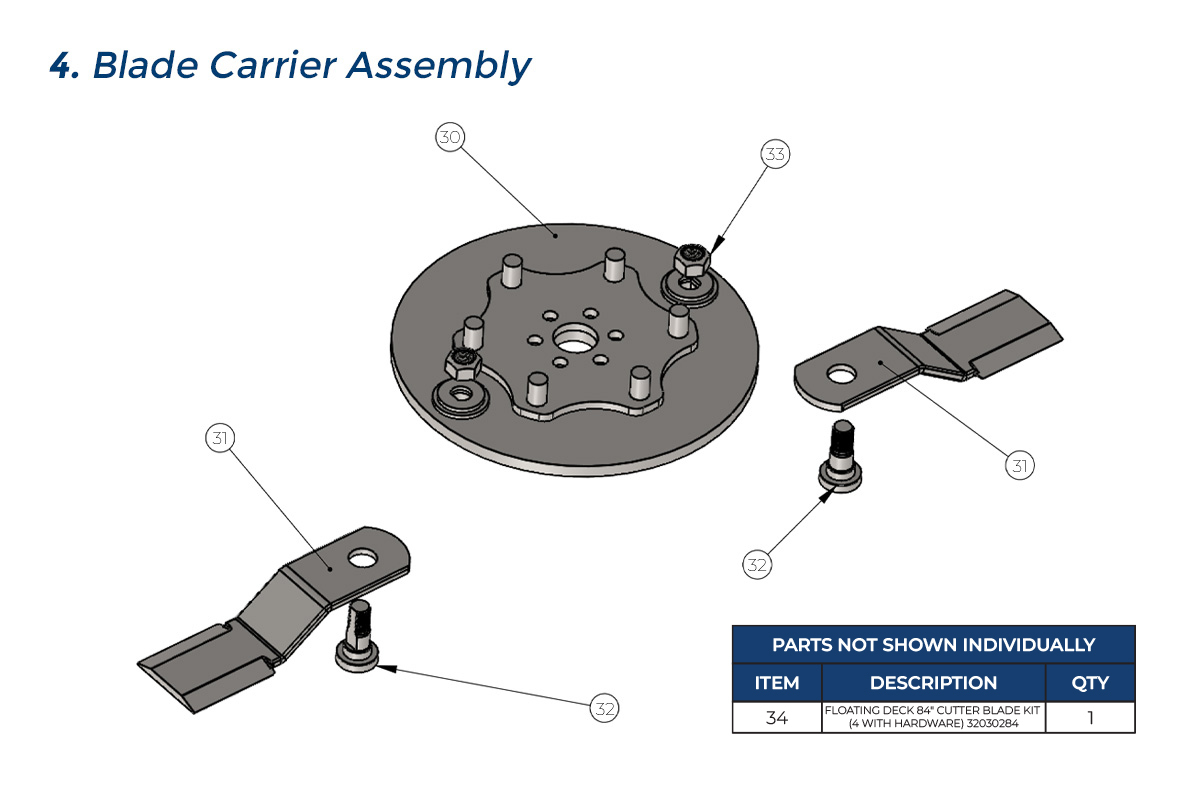

202960 - BRUSH CUTTER 84" DUAL MOTOR SERIES BLADE CARRIER

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 44 Item:

203109 - BRUSH CUTTER, DIRECT DRIVE BELLOW ASSEMBLY (SMALL STRAIGHT THREAD FOR GREASE OUTLET)

 Qty Per: 2 Price:
$61.09
Stock:
In Stock
Qty:
Ref: 35 Item:

203630 - BRUSH CUTTER, DIRECT DRIVE, HOUSING ONLY (for 2.36" spindle)(Mini cutters only SEP 2019 fwrd)

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 45 Item:

203775 - BRUSH CUTTER, GASKET, FITS C-FLANGE (SQUARE) MOTOR TO DIRECT DRIVE HOUSING

 Qty Per: 2 Price:
$41.51
Stock:
In Stock
Qty:
