106033-36

Name: Blue Diamond Attachments
Address: 4512 Anderson Rd, Knoxville, Tennessee, 37918, US
Price range: $

Revision: 003

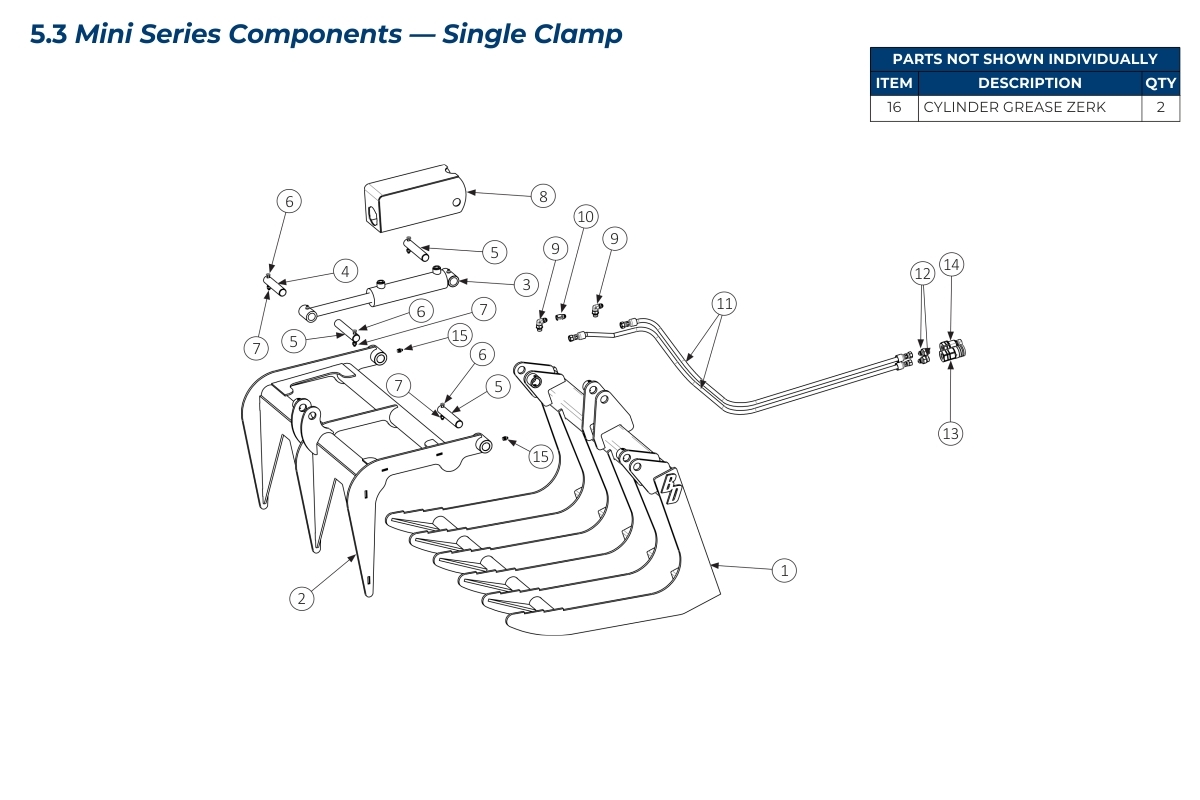

Ref	Item	Qty Per	Price	Stock	Qty
Ref:	Item: 295030-M06ORB-M06JIC - HYDRAULIC 90 DEGREE FITTING MALE #6 ORING BOSS X MALE #6 JIC Fits units with 4.5" stroke or 10" stroke studded cylinders. For 10" stroke non-studded cylinder units, contact Blue Diamond Product Support	Qty Per: 1	Price: $8.95	Stock: Miscellaneous Parts In Stock In Stock SKU: 295030-M06ORB-M06JIC	Qty:
Ref:	Item: 206172-36 - ROOT GRAPPLE 44" MINI SERIES ASV RC30 MOUNT SINGLE CLAMP	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 224009 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" Body 1/2" O-RING #8 Fits units with 4.5" cylinders or 10" studded cylinders. Units with 10" non-studded cylinders, use 224005	Qty Per: 1	Price: $99.98	Stock: Log Splitters In Stock In Stock SKU: 224009	Qty:
Ref:	Item: 206165 - GRAPPLE BUCKET MINI SERIES SINGLE CLAMP TOP CLAMP WELDMENT Revision 000003	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 224010 - COUPLER, MALE FLAT FACE STYLE, 1/2" Body,1/2" O-RING #8 Fits units with 4.5" cylinders or 10" studded cylinders. Units with 10" non-studded cylinders, use 224006	Qty Per: 1	Price: $68.59	Stock: Brooms In Stock In Stock SKU: 224010	Qty:
Ref:	Item: 208993 - CYLINDER 2" BORE X 6" STROKE X 14" RETRACTED LENGTH WELDED STYLE 3/8" ORB FLUSH PORTS 1" CROSS TUBES - FITS MINI FRONT DUMP BUCKETS / MINI GRAPPLES REVISION 000003 / HEAVY DUTY SERIES 2 ANGLE BROOM MINI 4 IN 1 BUCKETS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206051 - GRAPPLE MINI SERIES FRONT CYLINDER PIN 1 X 4.75	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206046 - ROOT GRAPPLE MINI SERIES GRAPPLE ARM TO FRAME PIN	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 299415 - 1/4-20 X 2 BOLT HEX HEAD ZINC YELLOW CHROMATE FINISH	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 299653 - 1/4-20 STOVER NUT GRADE C ZINC PLATED	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206166 - GRAPPLE MINI SERIES CYLINDER COVER FOR 2" X 6" CYLINDER Revision 000003	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206052 - GRAPPLE CYLINDER RESTRICTOR FITTING FEMALE #6 JIC TO MALE #6 JIC WITH .0625 HOLE	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206096 - GRAPPLE MINI SERIES MACHINE SIDE HOSE SET 6'0" & 6'3" (NO COUPLERS)- FITS SINGLE CLAMP UNITS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 295010-M06JIC-M08ORB - HYDRAULIC STRAIGHT FITTING MALE #6 JIC X MALE #8 ORING BOSS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 299016 - 1/8" NPT STEEL GREASE ZERK FITTING	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: — - CYLINDER GREASE ZERK	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-060 - DECAL, 2.4375 X 3.3750: BLUE DIAMOND ATTACHMENTS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-003 - DECAL, CRUSH HAZARD STAY CLEAR 2.5 X 2.5	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-092 - DECAL, WARRANTY REGISTRATION QR CODE 1.5"x2"	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-001 - DECAL, READ OWNERS MANUAL 3x3	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-004 - DECAL, 2.0 X 4.0: GREASE ALL FITTINGS EVERY 8 HOURS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-123 - DECAL HIGH PRESSURE FLUID HAZARD 3.0 X 3.0	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-056 - DECAL, BLUE DIAMOND SMALL (2' X 12')	Qty Per:	Price: N/A	Stock: Unavailable
