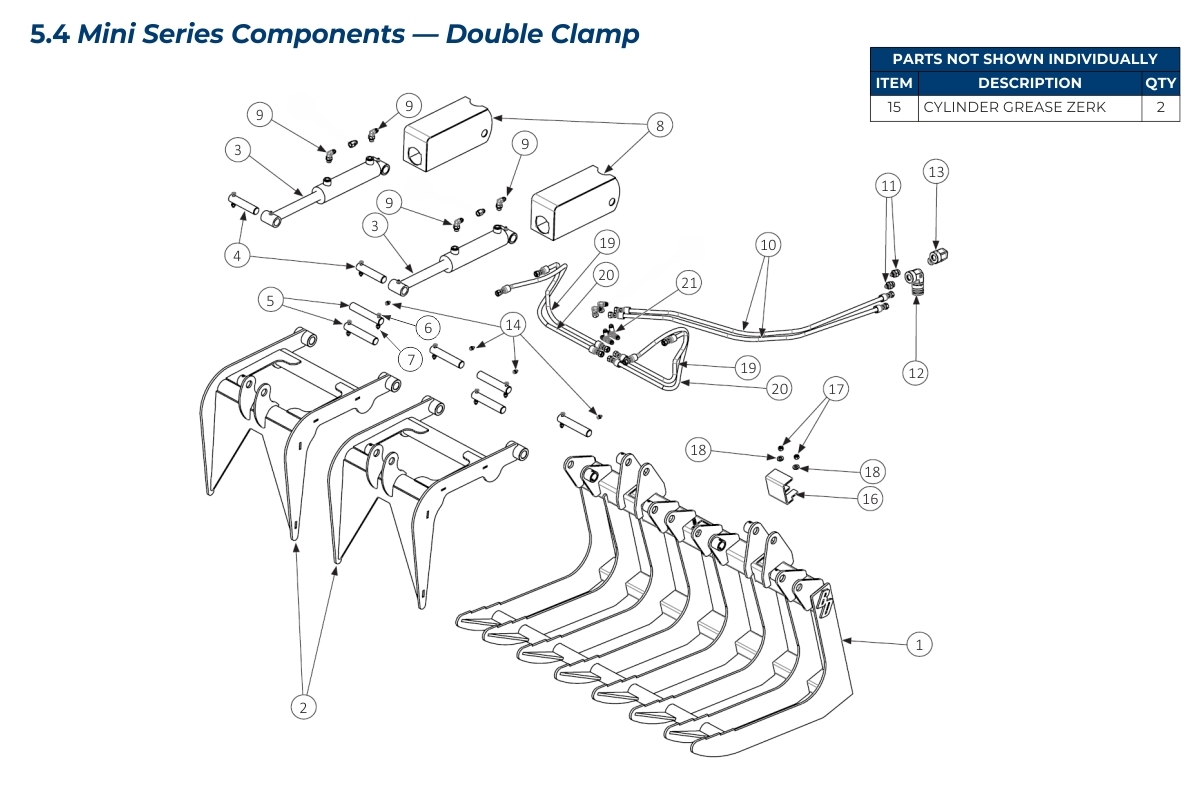

106043-35

Name: Blue Diamond Attachments
Address: 4512 Anderson Rd, Knoxville, Tennessee, 37918, US
Price range: $

Revision: 002

Ref	Item	Qty Per	Price	Stock	Qty
Ref:	Item: 207002 - GRAPPLE CYLINDER FOR MINI SERIES REV 00002 2X4.5" STROKE Fits units with 4.5" stroke cylinder. 10" stroke studded cylinder, use 207003. 10" stroke non-studded cylinder use 206305-KIT	Qty Per: 1	Price: $496.48	Stock: Grapples In Stock In Stock SKU: 207002	Qty:
Ref:	Item: — - 50” Main Frame Double Clamp	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 295030-M06ORB-M06JIC - HYDRAULIC 90 DEGREE FITTING MALE #6 ORING BOSS X MALE #6 JIC Fits units with 4.5" stroke or 10" stroke studded cylinders. For 10" stroke non-studded cylinder units, contact Blue Diamond Product Support	Qty Per: 1	Price: $8.95	Stock: Miscellaneous Parts In Stock In Stock SKU: 295030-M06ORB-M06JIC	Qty:
Ref:	Item: 206139-2 - MINI GRAPPLE TOP CLAMP FOR DUAL CLAMP UNITS REV 00002	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 224015 - COUPLER FEMALE FLAT FACE 1/2" ORING THREAD W/ 90 DEGREE ANGLE	Qty Per: 1	Price: $220.73	Stock: Grapples In Stock In Stock SKU: 224015	Qty:
Ref:	Item: 206051 - GRAPPLE MINI SERIES FRONT CYLINDER PIN 1 X 4.75	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 208550 - ROCK BUCKET HD GRAPPLE, 3/8" STOVER LOCK NUT	Qty Per: 1	Price: $3.26	Stock: Grapples In Stock In Stock SKU: 208550	Qty:
Ref:	Item: 206046 - ROOT GRAPPLE MINI SERIES GRAPPLE ARM TO FRAME PIN	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 299725 - FLAT WASHER 3/8" GRADE 8	Qty Per: 1	Price: $1.41	Stock: Miscellaneous Parts In Stock In Stock SKU: 299725	Qty:
Ref:	Item: 299415 - 1/4-20 X 2 BOLT HEX HEAD ZINC YELLOW CHROMATE FINISH	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206355 - GRAPPLE, EXTREME / SEVERE BULKHEAD BRANCH T FITTING, JOINS MACHINE HOSES TO GRAPPLE	Qty Per: 1	Price: $10.43	Stock: Grapples In Stock In Stock SKU: 206355	Qty:
Ref:	Item: 299653 - 1/4-20 STOVER NUT GRADE C ZINC PLATED	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206036 - CYLINDER COVER - FITS 2" BORE 4.5" STROKE FITS MINI GRAPPLES REVISION 000002	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206096 - GRAPPLE MINI SERIES MACHINE SIDE HOSE SET 6'0" & 6'3" (NO COUPLERS)- FITS SINGLE CLAMP UNITS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 295010-M06JIC-M08ORB - HYDRAULIC STRAIGHT FITTING MALE #6 JIC X MALE #8 ORING BOSS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 224016 - COUPLER MALE FLAT FACE 1/2" ORING THREAD W/ 90 DEGREE ANGLE	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: — - CLAMP PIVOT PIN GREASE ZERK	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: — - CYLINDER GREASE ZERK	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206054 - GRAPPLE BUCKET MINI SERIES DUAL CLAMP HOSE BULKHEAD	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206056 - GRAPPLE BUCKET MINI SERIES DUAL CLAMP SHORT CYLINDER HOSE	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: 206055 - GRAPPLE BUCKET MINI SERIES DUAL CLAMP LONG CYLINDER HOSE	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-060 - DECAL, 2.4375 X 3.3750: BLUE DIAMOND ATTACHMENTS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-003 - DECAL, CRUSH HAZARD STAY CLEAR 2.5 X 2.5	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-092 - DECAL, WARRANTY REGISTRATION QR CODE 1.5"x2"	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-001 - DECAL, READ OWNERS MANUAL 3x3	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-004 - DECAL, 2.0 X 4.0: GREASE ALL FITTINGS EVERY 8 HOURS	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-123 - DECAL HIGH PRESSURE FLUID HAZARD 3.0 X 3.0	Qty Per:	Price: N/A	Stock: Unavailable
Ref:	Item: BD-056 - DECAL, BLUE DIAMOND SMALL (2' X 12')	Qty Per:	Price: N/A	Stock: Unavailable
