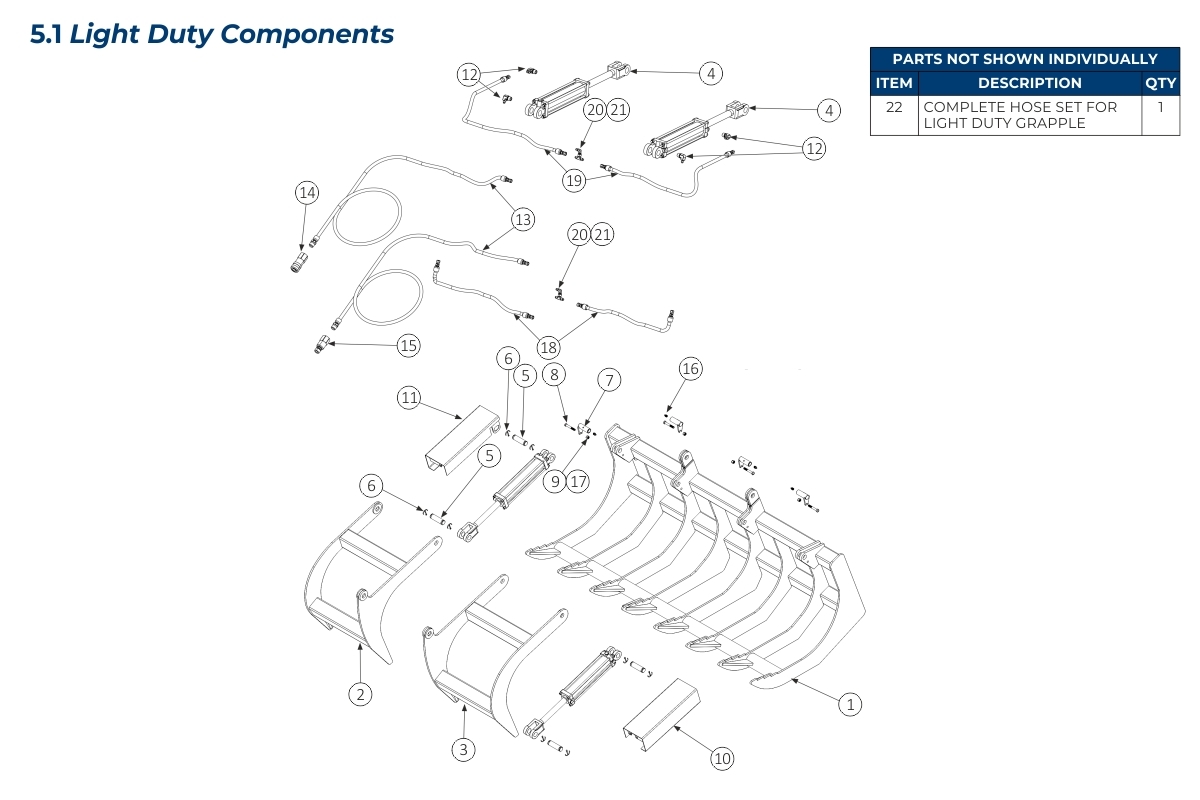

Parts Book

106065

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 2 Item:

206140 - GRAPPLE LIGHT DUTY & ROCK GRAPPLE STANDARD DUTY TOP CLAMP RIGHT SIDE (LEFT SIDE FOR 48")

 Qty Per: 1 Price:
$517.69
Stock:
Low Stock
Qty:
Ref: 1 Item:

— - 66" Main Frame Double Clamp

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 3 Item:

206145 - GRAPPLE LIGHT DUTY & ROCK GRAPPLE STANDARD DUTY TOP CLAMP LEFT SIDE (RIGHT SIDE FOR 48")

 Qty Per: 1 Price:
$517.69
Stock:
Low Stock
Qty:
Ref: 8 Item:

299446 - BOLT GRADE 8 HEX HEAD 3/8"-16 X 3-1/4"

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 4 Item:

206110 - CYLINDER, AG STYLE 2"BORE X 8" STROKE MAXIM CYLINDER NEEDED IF USED WITH CYLINDER COVER)LIGHT AND HEAVY DUTY GRAPPLES)

 Qty Per: 2 Price:
$323.17
Stock:
In Stock
Qty:
Ref: 12 Item:

295030-M04JIC-M06NPT - HYDRAULIC 90 DEGREE FITTING MALE #4 JIC X MALE #6 PIPE THREAD

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 5 Item:

206115 - GRAPPLE, CYLINDER PIN AND RETAINER (LD, HD GRAPPLES & ROCK BUCKETS)

 Qty Per: 4 Price:
$78.17
Stock:
In Stock
Qty:
Ref: 13 Item:

206160 - GRAPPLE LIGHT DUTY HOSE SET MACHINE SIDE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 6 Item:

299517 - COTTER PIN - Ø5/32" X 2"

Included in Item 5

Qty Per: 8 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 16 Item:

299016 - 1/8" NPT STEEL GREASE ZERK FITTING

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 7 Item:

206105 - GRAPPLE, PIVOT PINS GREASEABLE (FITS ROCK BUCKETS, LD & HD GRAPPLES)

 Qty Per: 4 Price:
$70.01
Stock:
In Stock
Qty:
Ref: 18 Item:

208251 - ROCK BUCKET STANDARD DUTY GRAPPLE SHORT CYLINDER HOSE 21" F04JIC X 2 FITS 60" 66" 72"

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 9 Item:

299625 - NYLOCK NUT GRADE 8 HEX 3/8"-16

 Qty Per: 4 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 19 Item:

208252 - ROCK BUCKET STANDARD DUTY GRAPPLE LONG CYLINDER HOSE 31" F04JIC X 2 FITS 60" 66" 72"

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 10 Item:

206206 - GRAPPLE, CYLINDER COVER, LEFT SIDE, FITS LIGHT DUTY ROOT (FOR 3/8" TINE MODELS ONLY)

 Qty Per: 1 Price:
$133.65
Stock:
Low Stock
Qty:
Ref: 20 Item:

295051 - HYDRAULIC BULKHEAD TEE FITTING W/NUT M04JICBH x M04JIC x MO4JIC FITS LD, HD, STANDARD DUTY

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 11 Item:

206205 - GRAPPLE, CYLINDER COVER, RIGHT SIDE, FITS LIGHT DUTY ROOT (FOR 3/8" TINE MODELS ONLY)

 Qty Per: 1 Price:
$80.47
Stock:
Low Stock
Qty:
Ref: 21 Item:

295030-M04JIC-F04JIC - HYDRAULIC 90 DEGREE FITTING MALE #4 JIC X FEMALE #4 JIC SWIVEL

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 14 Item:

224005 - COUPLER, FEMALE FLAT FACE STYLE 1/2" BODY, 1/2" PIPE THREAD

 Qty Per: 1 Price:
$98.93
Stock:
In Stock
Qty:
Ref: 23 Item:

BD-060 - DECAL, 2.4375 X 3.3750: BLUE DIAMOND ATTACHMENTS

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 15 Item:

224006 - COUPLER, MALE FLAT FACE STYLE 1/2" BODY, 1/2" PIPE THREAD

 Qty Per: 1 Price:
$73.91
Stock:
In Stock
Qty:
Ref: 24 Item:

BD-003 - DECAL, CRUSH HAZARD STAY CLEAR 2.5 X 2.5

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 17 Item:

299725 - FLAT WASHER 3/8" GRADE 8

 Qty Per: 8 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 25 Item:

BD-092 - DECAL, WARRANTY REGISTRATION QR CODE 1.5"x2"

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 22 Item:

206150 - COMPLETE HOSE SET FOR LIGHT DUTY GRAPPLE (SHORT CYLINDER TO T FITTING AND MACHINE SIDE HOSES)

 Qty Per: 1 Price:
$372.34
Stock:
Low Stock
Qty:
Ref: 26 Item:

BD-001 - DECAL, READ OWNERS MANUAL 3x3

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 27 Item:

BD-004 - DECAL, 2.0 X 4.0: GREASE ALL FITTINGS EVERY 8 HOURS

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 28 Item:

BD-123 - DECAL HIGH PRESSURE FLUID HAZARD 3.0 X 3.0

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 29 Item:

BD-056 - DECAL, BLUE DIAMOND SMALL (2' X 12')

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 30 Item:

BD-065 - DECAL - Light Duty Small

 Qty Per: 2 Price: N/A Stock:
Unavailable
