Parts Book

303728-35

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 3 Item:

216402 - STORAGE TUBE FOR MANUAL

 Qty Per: 1 Price:
$24.53
Stock:
In Stock
Qty:
Ref: 1 Item:

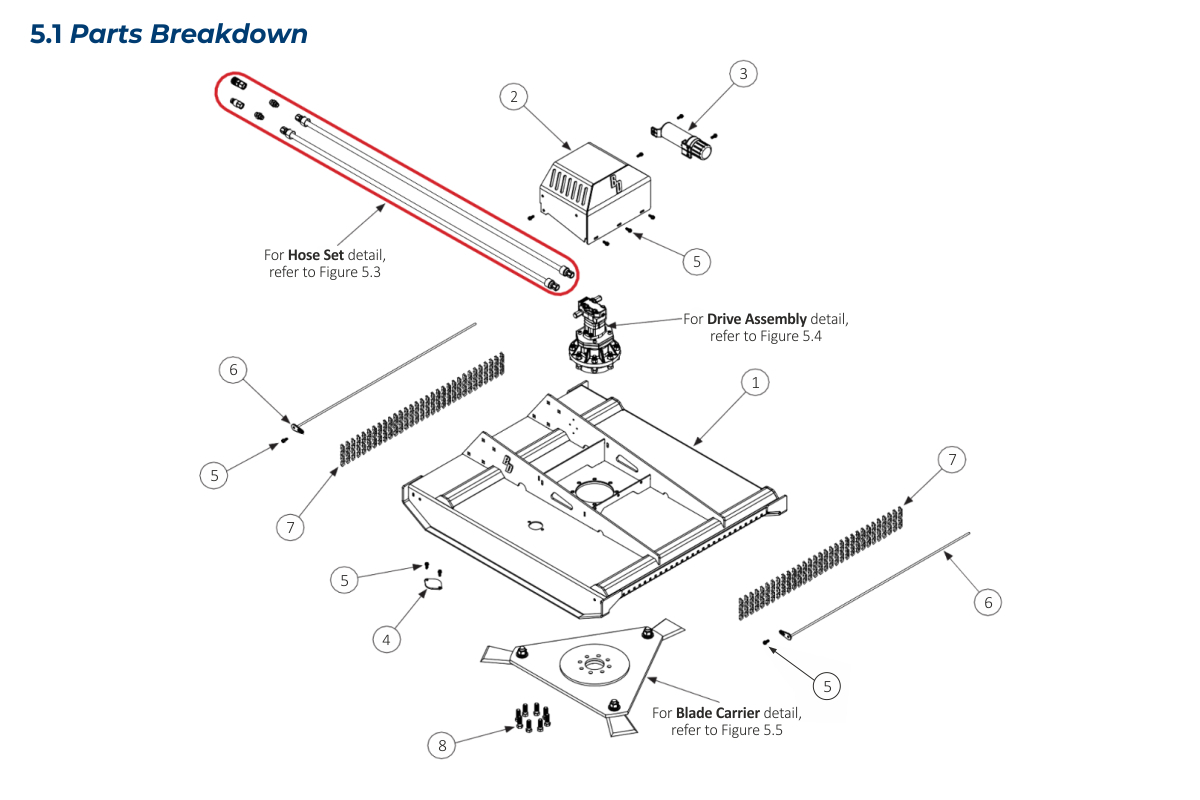

203146 - *not available yet* BRUSH CUTTER MINI SKID STEER SERIES 2 OPEN FRONT 42" CUT DECK WELDMENT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 4 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:
Ref: 2 Item:

203161 - BRUSH CUTTER MINI SKID STEER SERIES 2 MOTOR COVER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 5 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 11 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 6 Item:

203655 - BRUSH CUTTER MINI SKID 42" CHAIN RETAINER BAR

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 7 Item:

203600 - BRUSH CUTTER MINI-EX/MINI SKID STEER 3 LINK DISCHARGE CHAIN (36" req pc, 42" req 54, 50" requires )

 Qty Per: 26 Price:
$20.07
Stock:
In Stock
Qty:
Ref: 9 Item:

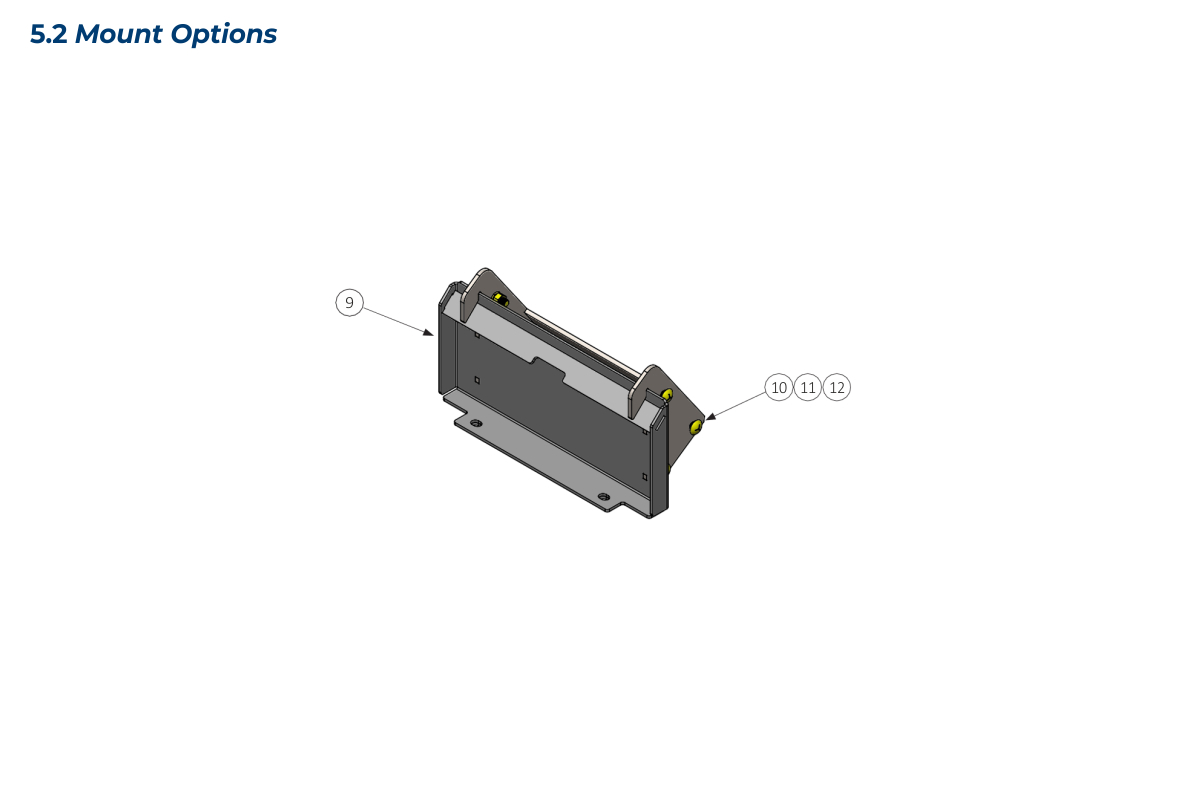

103740-35 - BRUSH CUTTER MINI SKID STEER SERIES 2 MOUNT - AVANT (INCLUDES HARDWARE)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 8 Item:

299469-F - BOLT GRADE 8 HEX HEAD 3/4"-16 X 2 1/4" (FINE THREAD)

 Qty Per: 8 Price:
$15.79
Stock:
In Stock
Qty:
Ref: 13 Item:

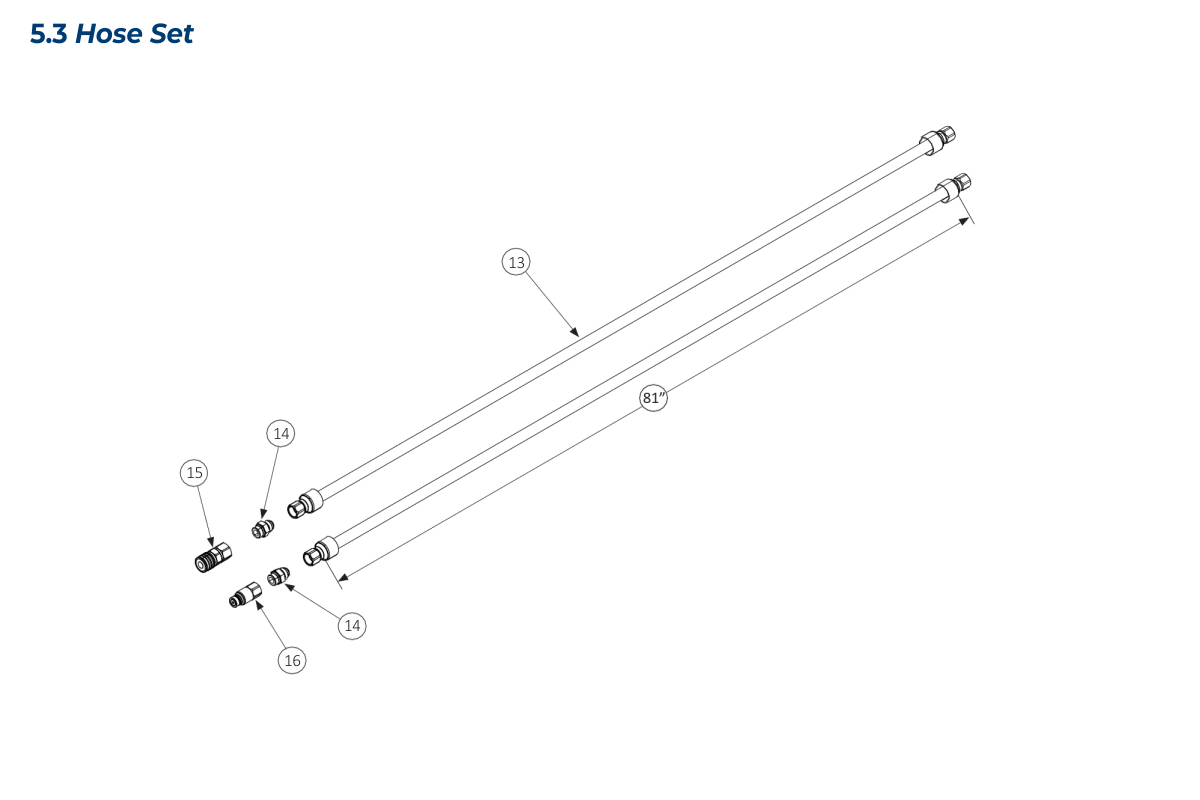

203792 - BRUSH CUTTER HOSE ASSEMBLY FITS MINI SERIES 2 (with sleeve) (no couplers)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 10 Item:

220827 - SNOW BLADE AUTOWING CUTTING EDGE BOLT FOR SIDE WING 5/8-11 X 2 CARRIAGE BOLT G5

 Qty Per: 6 Price:
$8.65
Stock:
In Stock
Qty:
Ref: 17 Item:

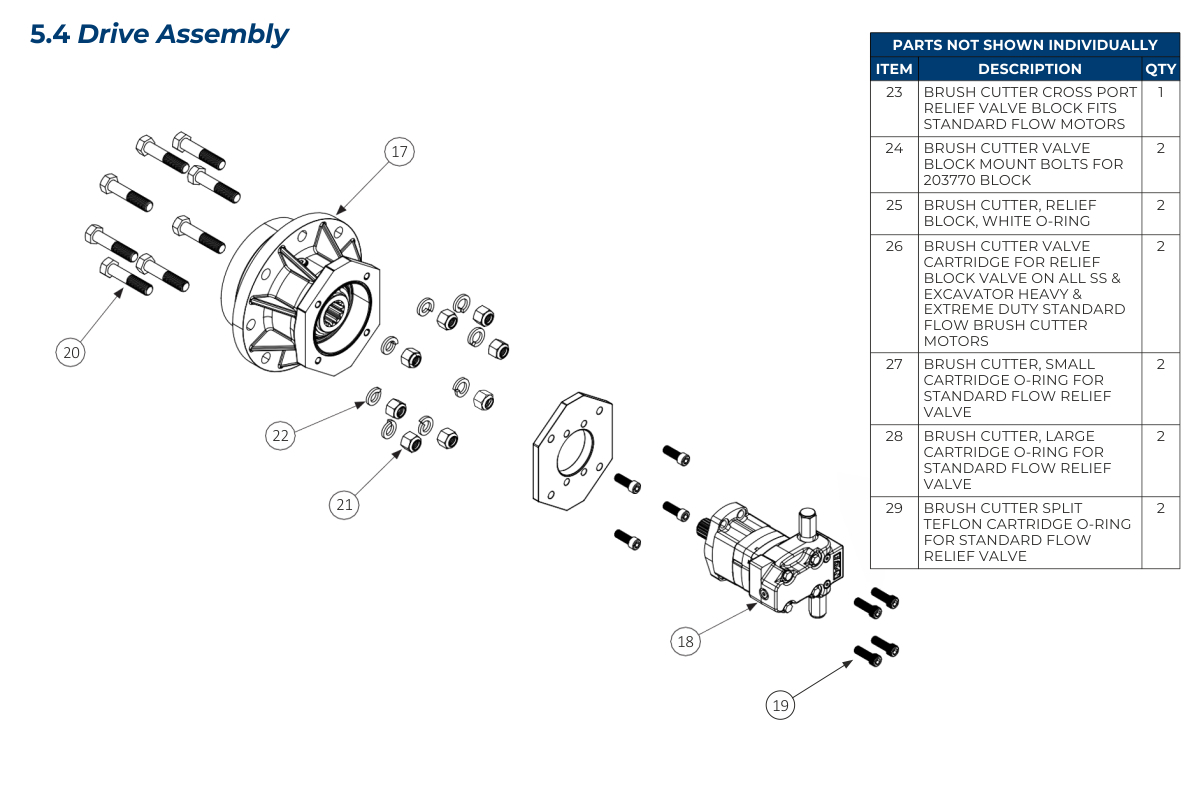

BC75-SAE-C - FLUIDGEAR DIRECT DRIVE ASSEMBLY BC75-SAE-C

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 11 Item:

299845 - LOCK WASHER 5/8" GRADE 8

 Qty Per: 6 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 19 Item:

299463-A - BOLT GRADE 8 ALLEN HEAD 1/2"-20 X 1 1/2"

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 12 Item:

109177 - NUT, 5/8-11 ALL METAL LOCKNUT FOR BOLT-ON EDGE, AUGER TOOTH RETAINER, EXCAVATOR MOUNTS

 Qty Per: 6 Price:
$3.43
Stock:
In Stock
Qty:
Ref: 22 Item:

299856 - 0.188 X 3/4 X 1.265 WASHER LOCK GRADE 8 ZINC YELLOW CHROMATE PLATED

 Qty Per: 8 Price: N/A Stock:
Unavailable
Ref: 14 Item:

295010-M12JIC-M12ORB - HYDRAULIC STRAIGHT FITTING MALE #12 JIC X MALE #12 ORING BOSS

 Qty Per: 2 Price:
$11.63
Stock:
In Stock
Qty:
Ref: 30 Item:

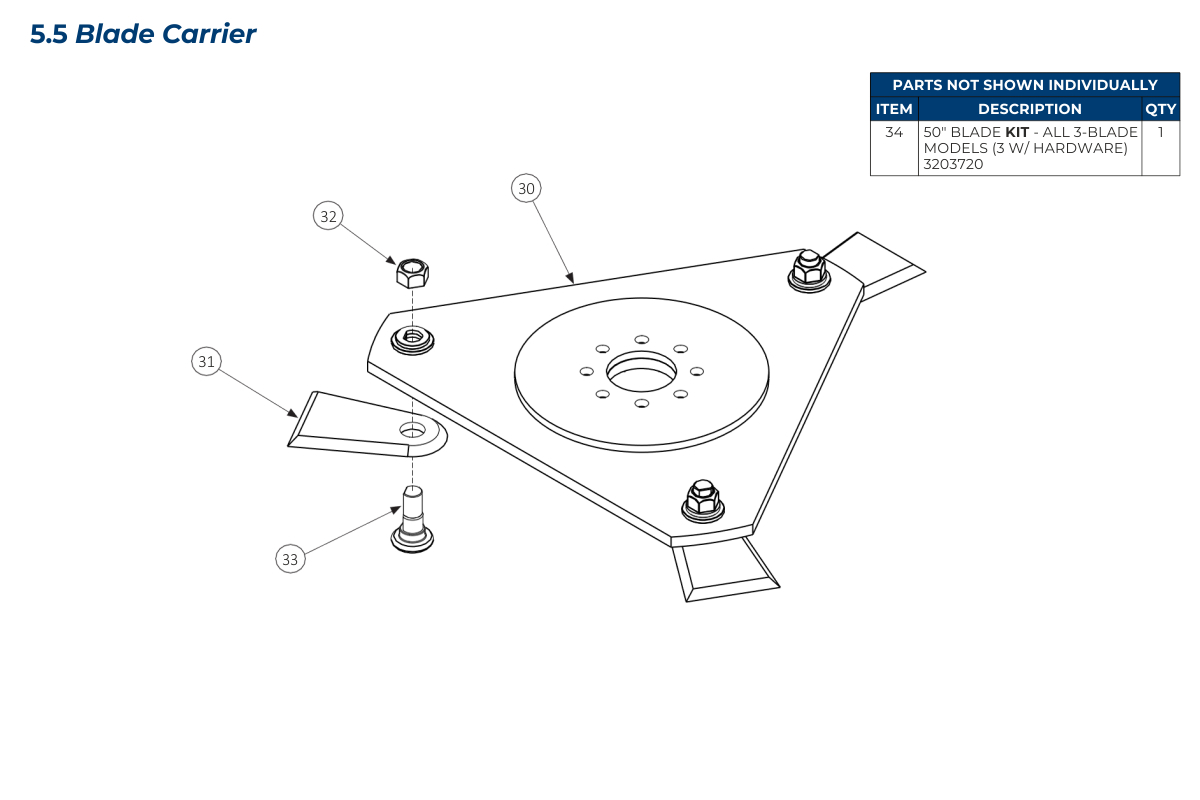

203148 - BRUSH CUTTER SERIES 2 BLADE CARRIER 42"

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 15 Item:

224011 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$92.97
Stock:
In Stock
Qty:
Ref: 35 Item:

BD-081 - Decal - WARNING Keep Hands and Feet Away 3"x12"

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 16 Item:

224012 - COUPLER, MALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$77.80
Stock:
In Stock
Qty:
Ref: 36 Item:

BD-119 - DECAL - ATTENTION - CLEAN MOTOR AREA DAILY TO PREVENT OVERHEATING OR POSSIBLE FIRE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 20 Item:

299470 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 3 1/2"

 Qty Per: 8 Price:
$11.61
Stock:
In Stock
Qty:
Ref: 37 Item:

BD-008 - DECAL - IMPORTANT - SEE OWNER'S MANUAL FOR LUBRICATION INSTRUCTIONS

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 21 Item:

299628 - NYLOCK NUT GRADE 8 HEX 3/4"-10

 Qty Per: 8 Price:
$6.60
Stock:
In Stock
Qty:
Ref: 38 Item:

BD-113 - DECAL BLUE DIAMOND ATTACHMENTS DIAMOND SHAPE 5 X 6.35

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 23 Item:

203770 - BRUSH CUTTER, CROSS PORT RELIEF VALVE BLOCK, FITS STANDARD FLOW MOTORS

For units manufactured before 4/17/2024 only (203760 motor)

Qty Per: 1 Price:
$885.90
Stock:
In Stock
Qty:
Ref: 39 Item:

BD-001 - DECAL, READ OWNERS MANUAL 3x3

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 24 Item:

203771 - BRUSH CUTTER VALVE BLOCK MOUNT BOLTS FOR 203770 BLOCK

For units manufactured before 4/17/2024 only (203760 motor)

Qty Per: 2 Price:
$10.97
Stock:
In Stock
Qty:
Ref: 40 Item:

BD-072 - DECAL, WARNING - USE OVER 26 GPMs; 2.5 X 4.0

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 25 Item:

203908 - BRUSH CUTTER, RELIEF BLOCK, WHITE O-RING

For units manufactured before 4/17/2024 only (203760 motor)

Qty Per: 2 Price:
$23.18
Stock:
In Stock
Qty:
Ref: 41 Item:

BD-007 - DECAL, HIGH PRESSURE FLUID HAZARD 3.0 X 4.75

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 26 Item:

203136-1 - BRUSH CUTTER VALVE CARTRIDGE FOR RELIEF BLOCK VALVE ON ALL SS & EXCAVATOR HEAVY & EXTREME DUTY STANDARD FLOW BRUSH CUTTER MOTORS

 Qty Per: 2 Price:
$185.86
Stock:
In Stock
Qty:
Ref: 42 Item:

BD-055 - DECAL, DANGER DEBRIS DISCHARGE AREA STAY BACK 200 FEET 3.0 X 11.9062

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 27 Item:

203916 - BRUSH CUTTER, SMALL CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

 Qty Per: 2 Price:
$13.81
Stock:
In Stock
Qty:
Ref: 43 Item:

BD-060 - DECAL, 2.4375 X 3.3750: BLUE DIAMOND ATTACHMENTS (BD)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 28 Item:

203917 - BRUSH CUTTER, LARGE CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

 Qty Per: 2 Price:
$18.02
Stock:
In Stock
Qty:
Ref: 44 Item:

BD-092 - DECAL, WARRANTY REGISTRATION QR CODE 1.5"x2"

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 29 Item:

203919 - BRUSH CUTTER SPLIT TEFLON CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

 Qty Per: 2 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 31 Item:

203670 - BRUSH CUTTER, MINI-EX BLADE FOR 42" (FITS 3 BLADE STYLE CARRIER)

For complete kit with hardware, use 203670-KIT

Qty Per: 3 Price:
$110.85
Stock:
In Stock
Qty:
Ref: 32 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 33 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 34 Item:

203670-KIT - 42" CUTTER BLADE KIT - ALL MODELS (3 W/ HARDWARE) 3203670

 Qty Per: 1 Price:
$452.39
Stock:
In Stock
Qty:
