DRUM MULCHER - HEAVY duty

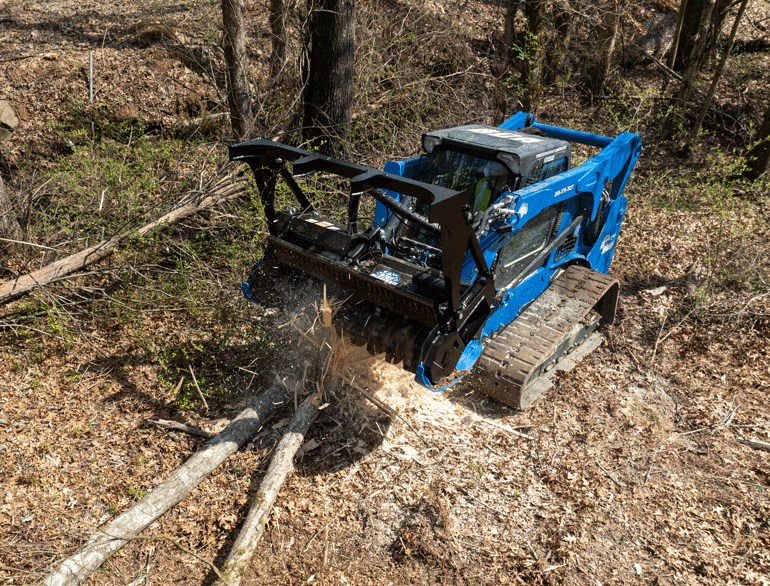

The Blue Diamond® Heavy Duty Drum Mulcher is built to tackle the toughest mulching and brush clearing jobs. Compatible with a wide range of skid steers and compact track loaders, the Heavy Duty model features a 60" bite control drum and requires only 22-46 GPM hydraulic flow for optimal performance. Perfect for applications in forestry, land clearing & property development, this skid steer mulcher attachment is a cut above the competition!

Find a Dealer

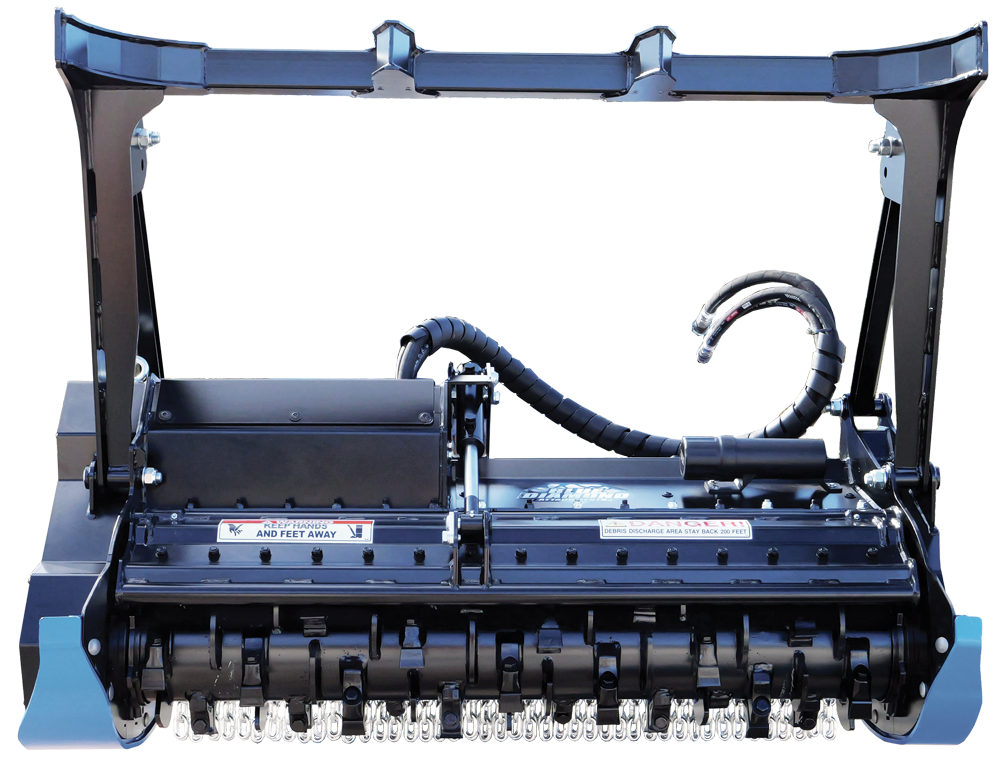

Drum Mulcher Skid Steer HD st4 front web2

Product Details

Download Brochure

60” bite control drum rotor
4-sided high-speed chipping or single-sided carbide tooth options
Requires: 22-46 GPM hydraulic flow
Variable displacement hydraulic piston motor with built-in anti-cavitation valve

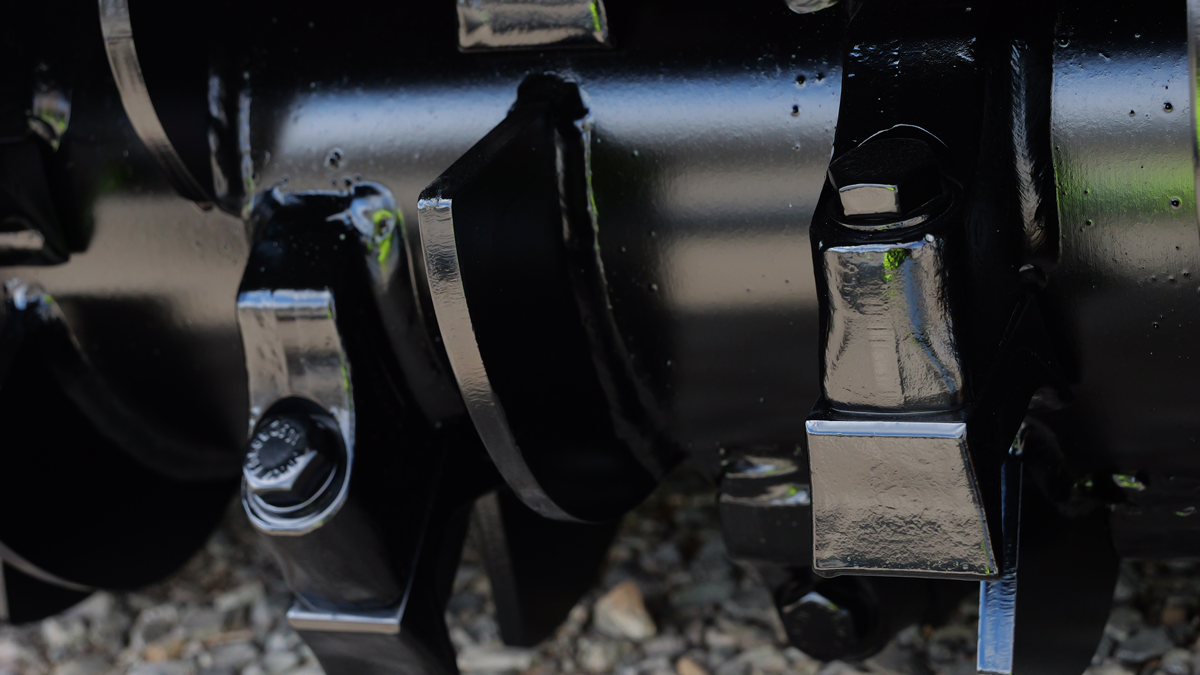

Rotor with replaceable shafts and with fixed teeth in helical position with “P-CUT” bite limiters
Polychain carbon fiber drive belts
Hydraulic gate comes standard
Body built of high strength steel

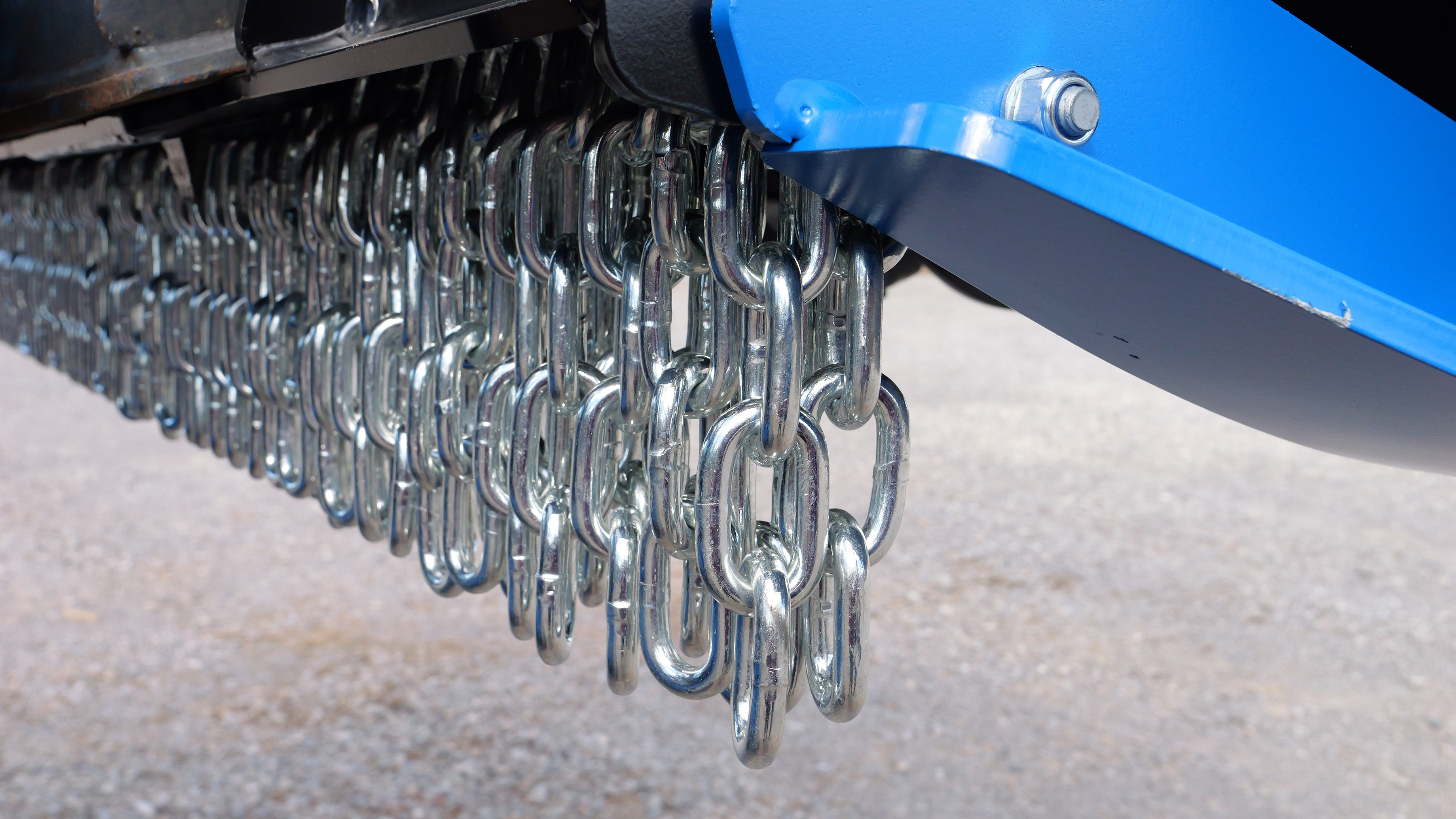

Adjustable push bar and rear chain guard provide operator protection

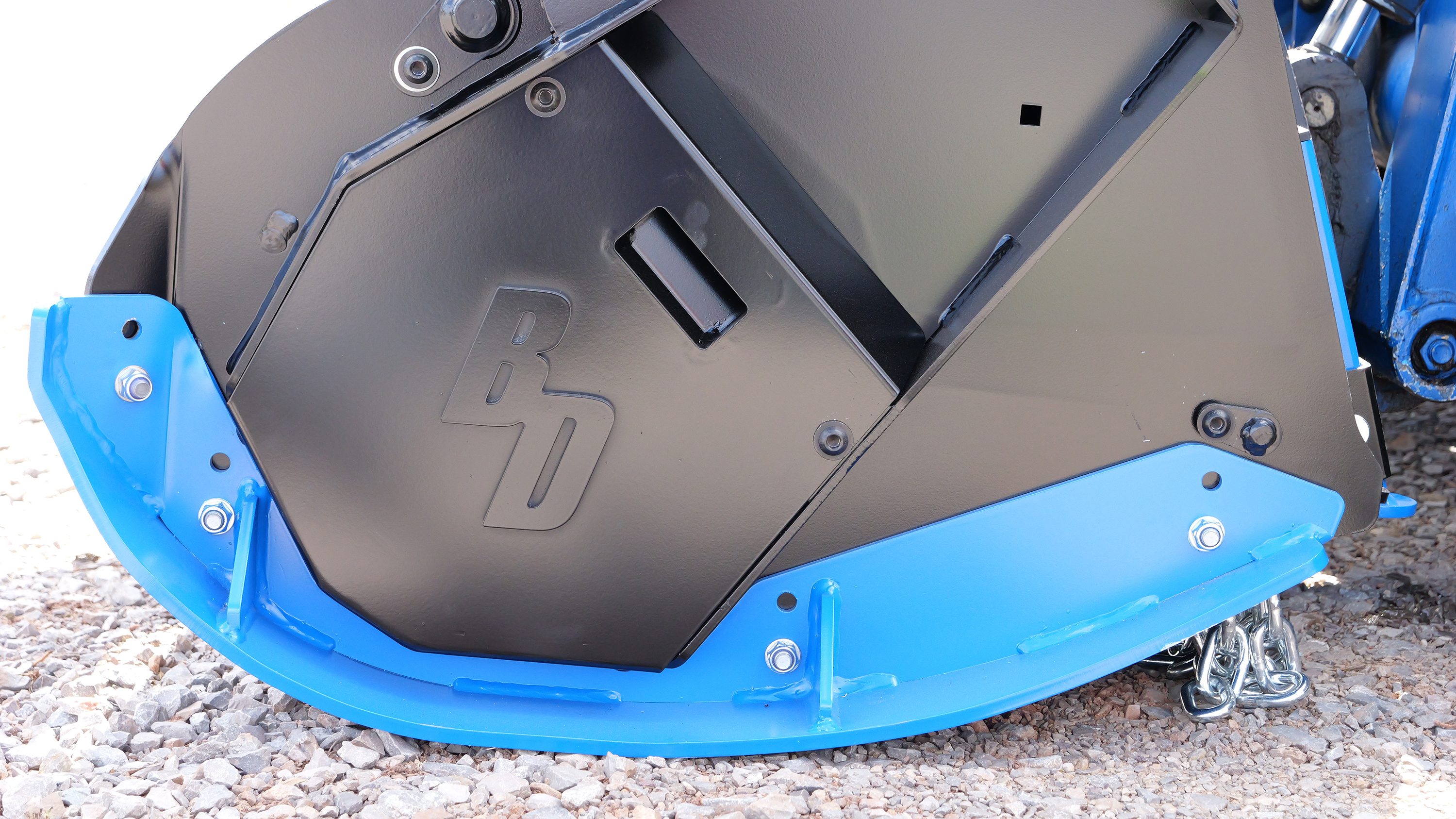

Adjustable depth skid shoes
Side extension device between motor and pulleys with ESB system
1/2” or 3/4” coupler options
Requires universal wiring harness kit w/control box - 290680
Case drain required
Universal skid steer mount
Chipping Tooth Kit - 60" HD - (290508-KIT-60)
Carbide Tooth Kit - 60" HD - (290509-KIT-60)

Part Number	Model	Teeth	Required Flow	Coupler	Weight
Part Number390100	Model60” HD Drum Mulcher, 3-line	TeethChipping	Required Flow22-46 GPM	Coupler1/2"	Weight2,105 lbs.
Part Number390101	Model60” HD Drum Mulcher, 3-line	TeethCarbide	Required Flow22-46 GPM	Coupler1/2"	Weight2,105 lbs.
Part Number390104	Model60” HD Drum Mulcher, 3-line	TeethChipping	Required Flow22-46 GPM	Coupler3/4"	Weight2,105 lbs.
Part Number390105	Model60” HD Drum Mulcher, 3-line	TeethCarbide	Required Flow22-46 GPM	Coupler3/4"	Weight2,105 lbs.
