EXCAVATOR ATTACHMENTS
PLATE COMPACTOR

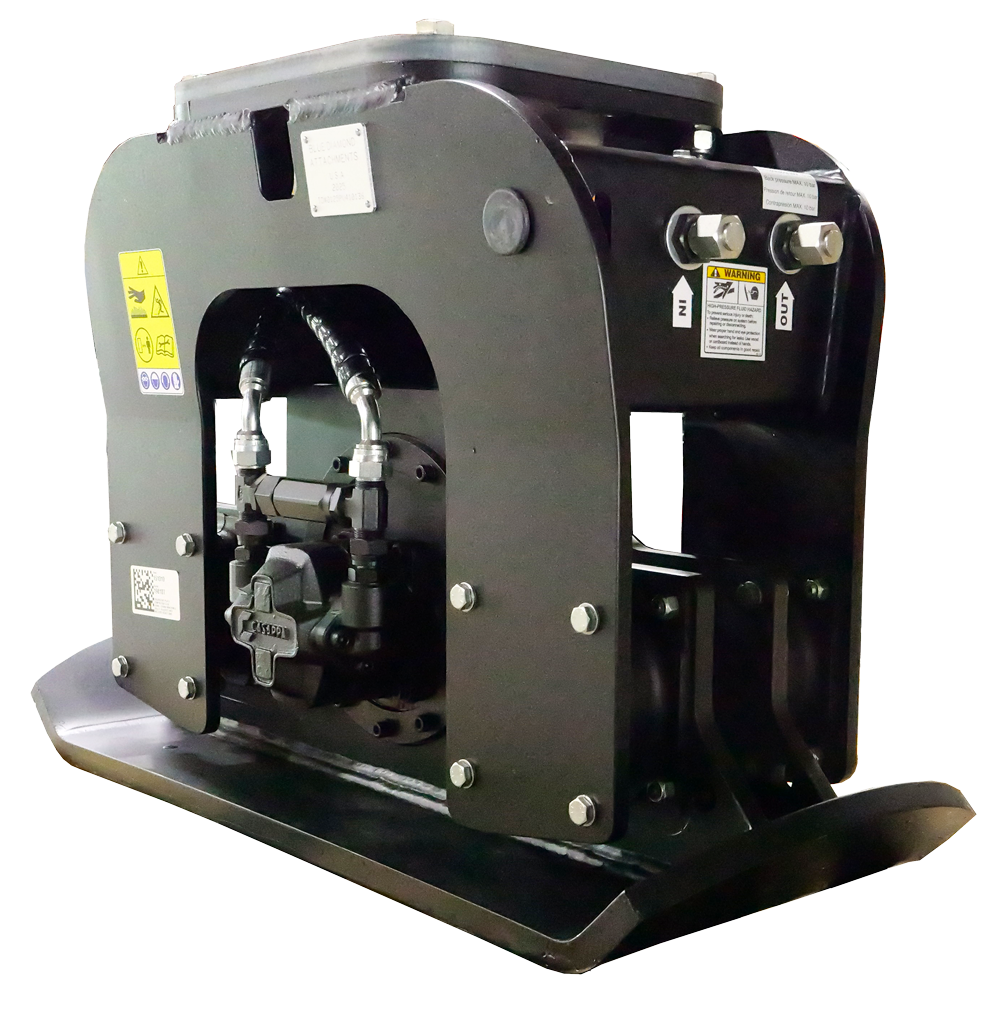

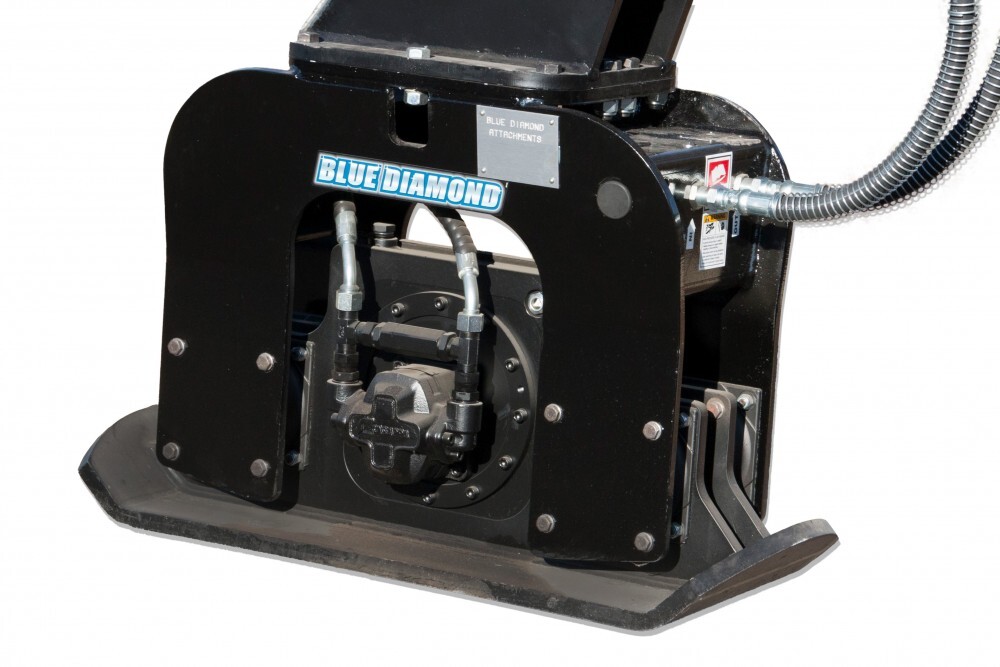

Blue Diamond® Plate Compactor attachments for excavators are essential tools for soil compaction in trenching, slope work, and foundation prep. These hydraulic attachments use vibratory force and the weight of the excavator to efficiently compact soil, gravel, or asphalt. Industry leading technology protects the machine from excessive vibrations yet offers excellent compaction ability. They're ideal for contractors working on utility installations, retaining walls, or foundation prep.
Product Details
Download Brochure- Three compactor models for carrier weights from 5,000 - 42,000 lbs.

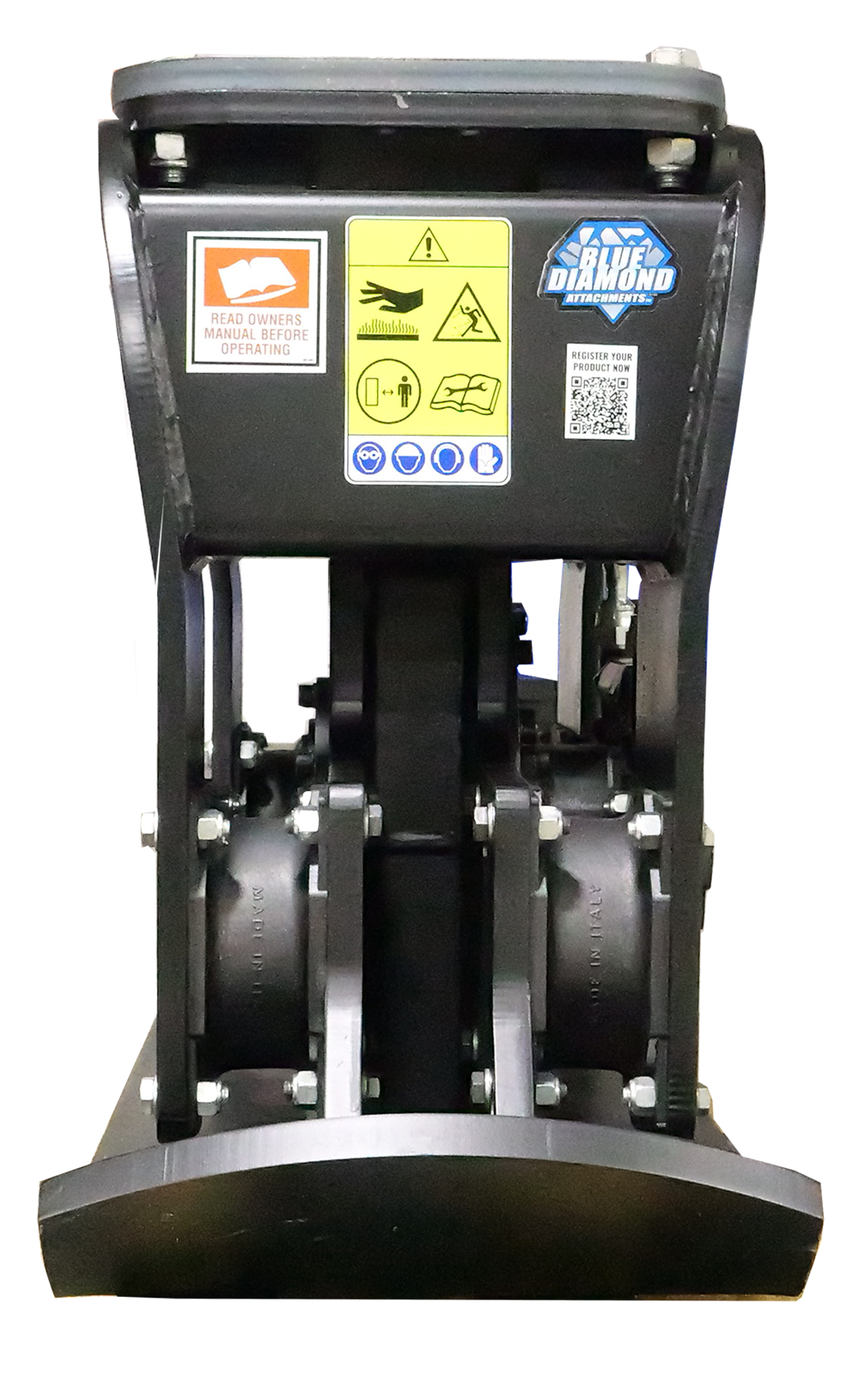

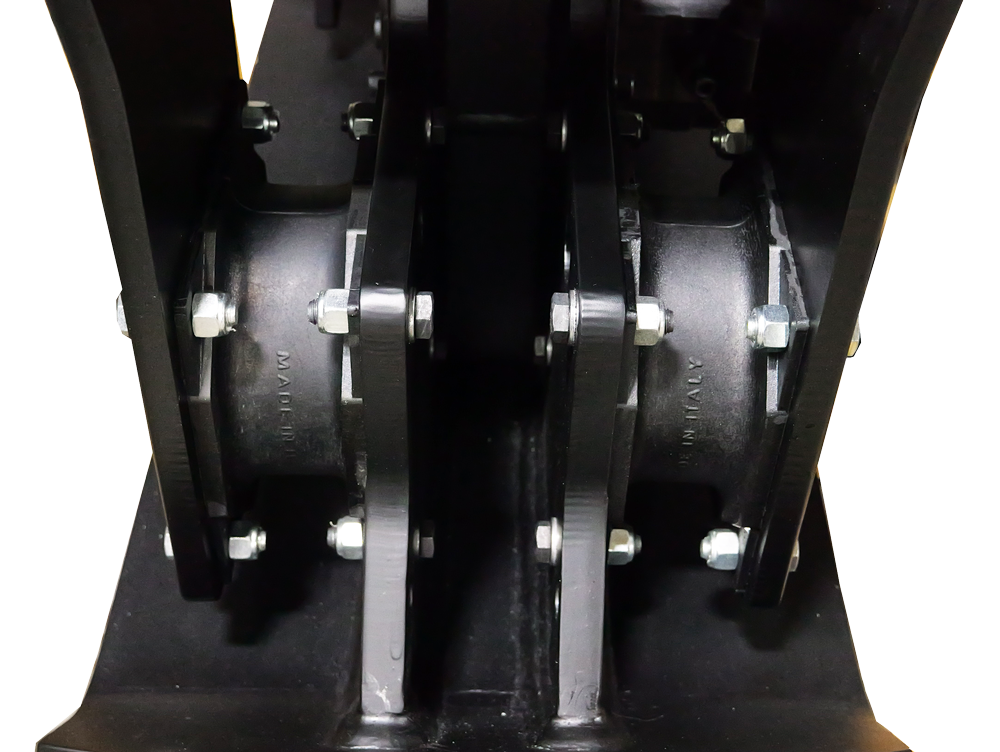

- Compact steel frame with large rubber shock absorbers provides strength and low vibration
- Engineered with heavy compaction plates sized to match standard trenching bucket widths

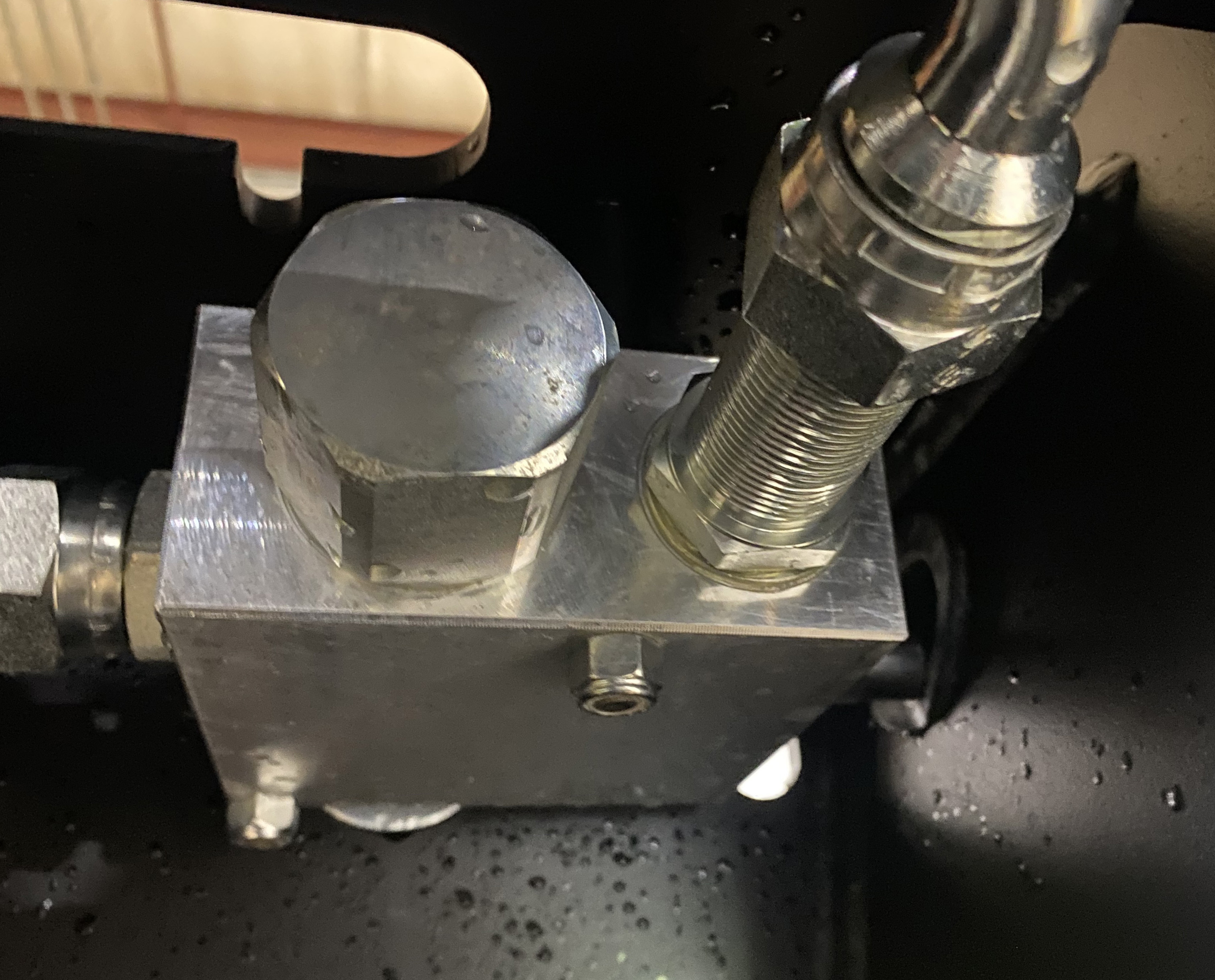

- Internal flow regulation and anti-cavitation valves protect the motor and seals
- Low maintenance sealed exciter unit with oil bath bearing design
Part Number | Model | Excavator Weight | Plate Size | Weight | Max Oil Flow | Max Psi | Power (LBS/Kn) |
---|---|---|---|---|---|---|---|
Part Number151005 | ModelC310 | Excavator Weight5,000-12,000 lbs. | Plate Size12" W x 24" L | Weight552 | Max Oil Flow13 | Max Psi2,610 | Power (LBS/Kn)4,046/18 |
Part Number151010 | ModelC410 | Excavator Weight12,000-22,000 lbs. | Plate Size16" W x 32" L | Weight880 | Max Oil Flow23 | Max Psi2,610 | Power (LBS/Kn)7,391/32 |
Part Number151015 | ModelC610 | Excavator Weight24,000-42,000 lbs. | Plate Size24" W x 48" L | Weight2,000 | Max Oil Flow37 | Max Psi2,610 | Power (LBS/Kn)14,612/65 |
Part NumberCouplers and hoses sold separately. | ModelRequires blank back mount, sold separately. | Excavator Weight | Plate Size | Weight | Max Oil Flow | Max Psi | Power (LBS/Kn) |
