ROCK BUCKET grapple – HDX

The Blue Diamond® HDX Rock Bucket Grapple is engineered for skid steers and compact loaders up to 75 horsepower. Positioned between our Heavy Duty and Severe Duty models, the HDX series bridges the gap with enhanced performance and durability. Constructed from 1/2-inch steel, these grapples feature dual top clamps with a maximum opening of 32 inches, fully welded cylinders and upgraded cylinder protection. The rock bucket features 3" tine spacing with reinforced gussets and works great as a land plane and for light clearing.

The Blue Diamond® HDX Series also includes the HDX Root Grapple and the HDX Grapple Bucket.

Find a Dealer

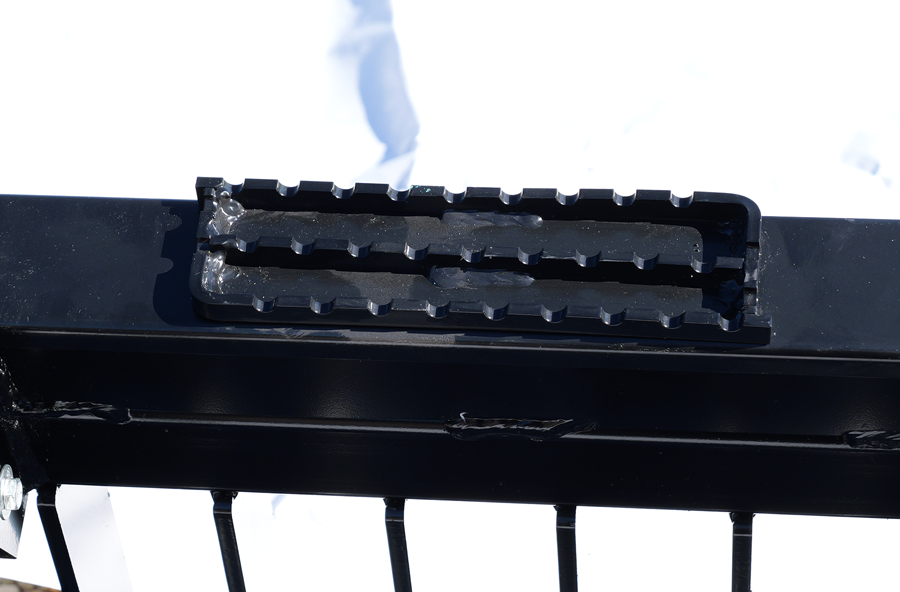

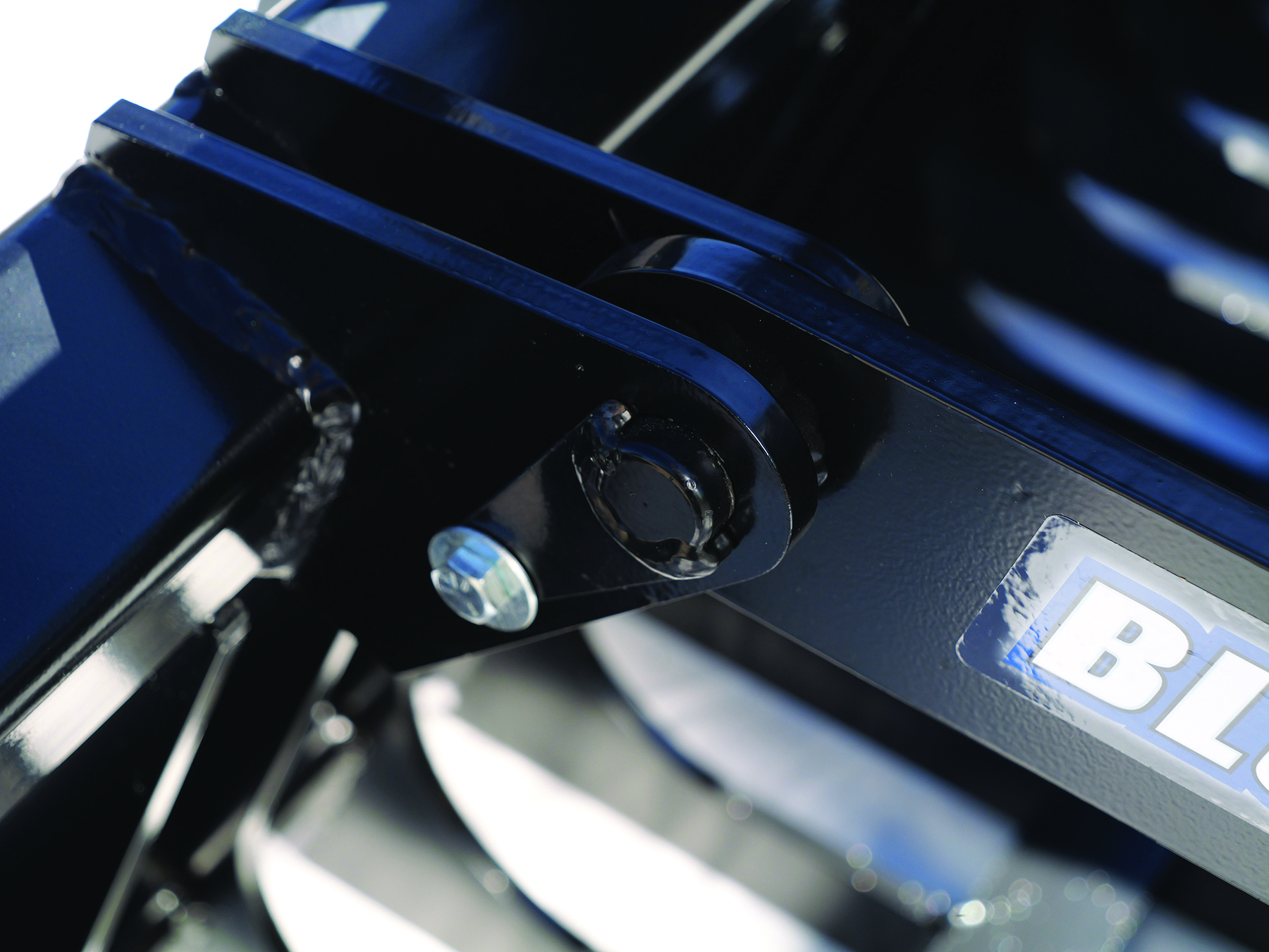

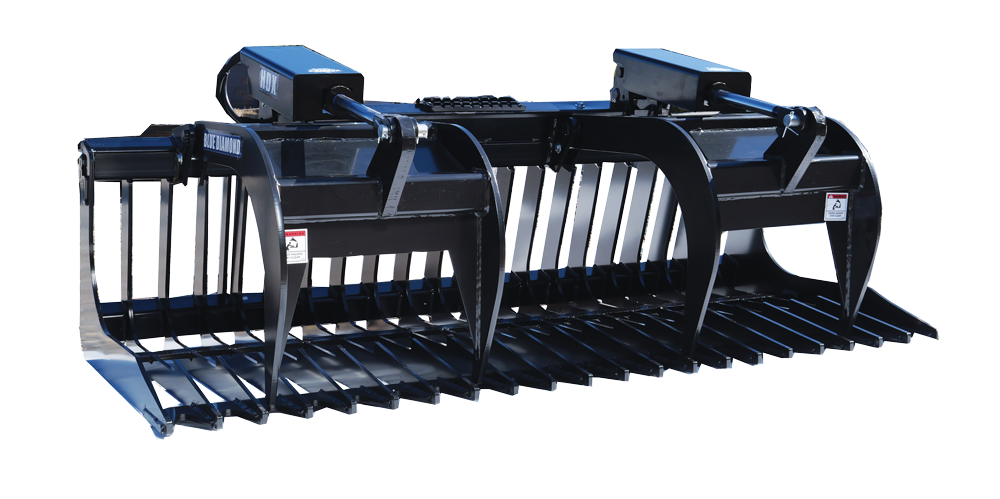

Rock Bucket Grapple HDX trans left angle Rock Bucket Grapple HDX trans right Rock Bucket Grapple HDX cylinder Rock Bucket Grapple HDX pin Rock Bucket Grapple HDX trans pivot point Rock Bucket Grapple HDX step

Product Details

Download Brochure
  • 72" wide and 39" deep
  • Opens to 32"
  • 3″ spacing between reinforced tines

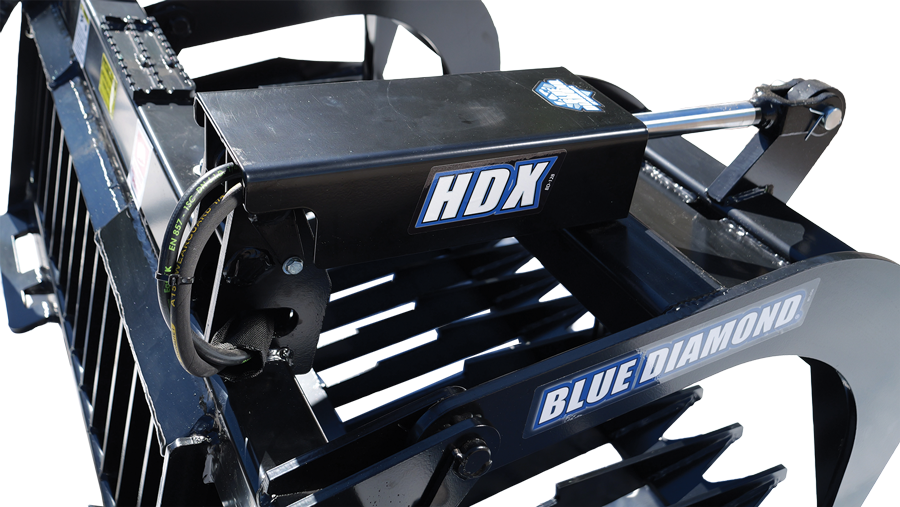

  • Fully welded hydraulic cylinders
  • Upgraded cylinder and hose protection
  • 1/2″ thick dual top clamps

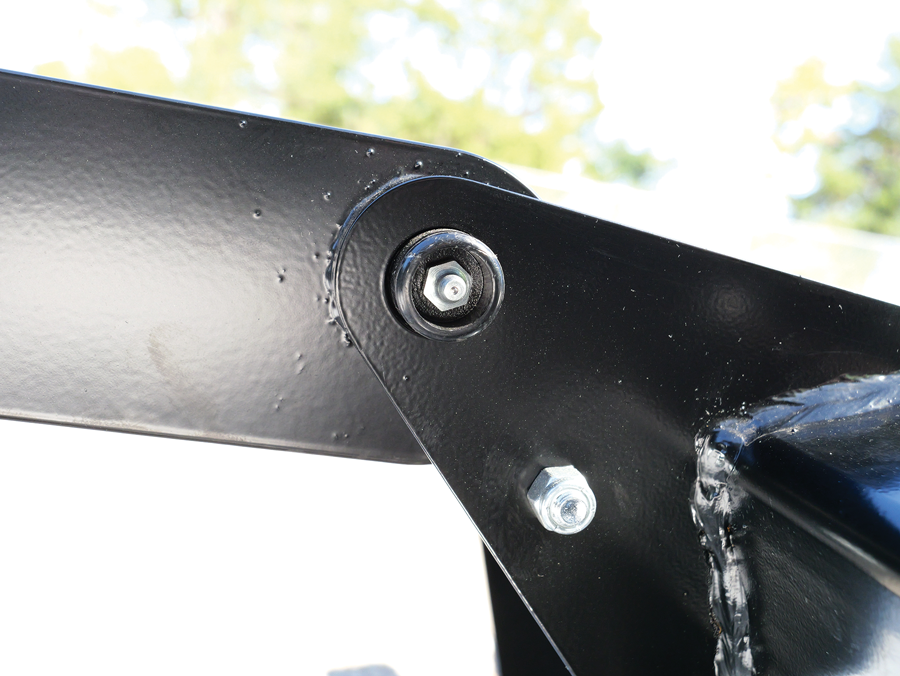

  • Greaseable pivot points
  • Durable powder coated finish
  • Best suited for machines up to 75 hp or 3,000 lb lift capacity
  • Universal Skid Steer mount
Part Number Model Weight
Part Number108348 Model72" Rock Grapple Bucket, HDX, Dual Clamps Weight700 lbs
