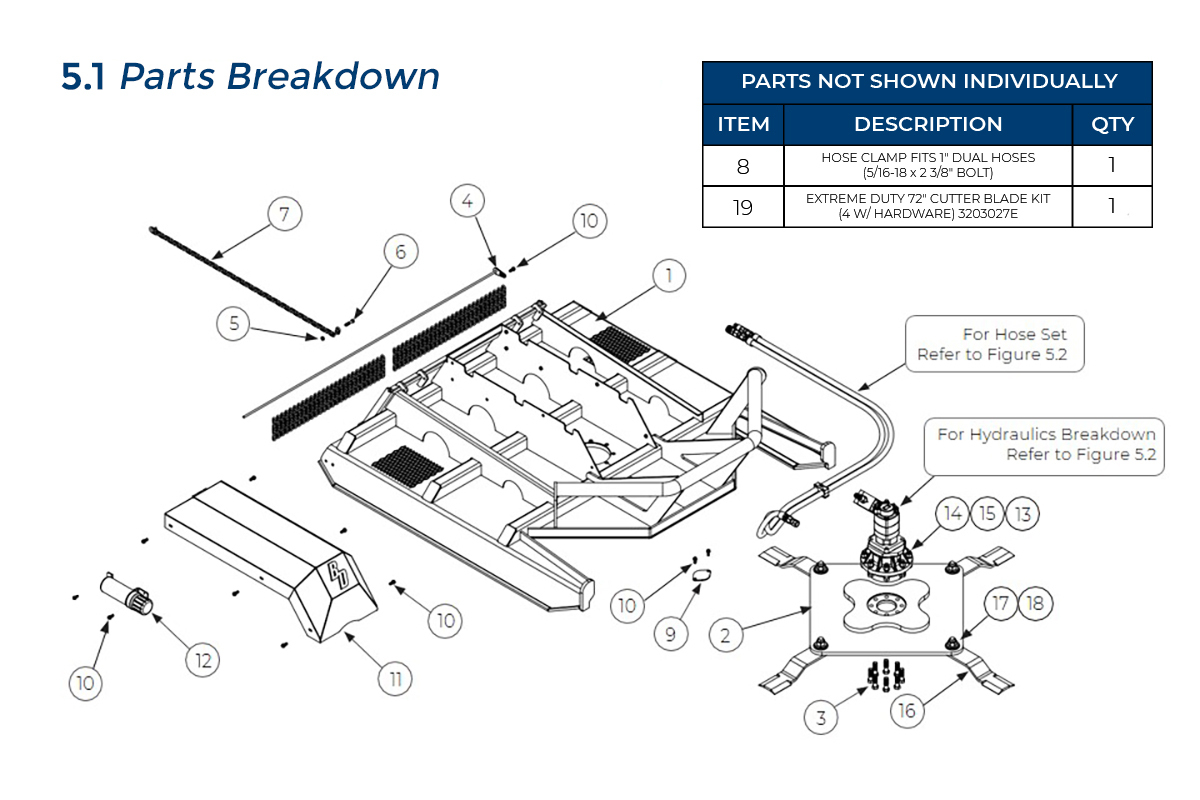

Parts Book

103025-2

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 2 Item:

203044-2 - BRUSH CUTTER EXTREME DUTY SERIES 2 72" BLADE CARRIER 4 BLADE (3/4" bolt holes)

 Qty Per: 1 Price:
$2,154.00
Stock:
In Stock
Qty:
Ref: 1 Item:

203510-2 - BRUSH CUTTER DECK WELDMENT 72" EXTREME DUTY SERIES 2 OPEN FRONT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 3 Item:

299469-F - BOLT GRADE 8 HEX HEAD 3/4"-16 X 2 1/4" (FINE THREAD)

 Qty Per: 8 Price:
$15.79
Stock:
In Stock
Qty:
Ref: 4 Item:

203055-2 - BRUSH CUTTER EXTREME DUTY SERIES 2 CHAIN RETAINER BAR 72"

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 5 Item:

299618 - NYLOCK NUT GRADE 8 HEX HEAD 1/2"-13

 Qty Per: 1 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 6 Item:

299436 - BOLT GRADE 8 HEX 1/2-13 X 3 1/2" ZINC PLATED

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 7 Item:

203048 - BRUSH CUTTER SAFETY CHAIN AND CLEVIS

 Qty Per: 1 Price:
$117.44
Stock:
In Stock
Qty:
Ref: 24 Item:

BC75-SAE-C - FLUIDGEAR DIRECT DRIVE ASSEMBLY BC75-SAE-C

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 8 Item:

206825 - HOSE CLAMP FITS 1" DUAL HOSES (5/16-18 x 2 3/8" BOLT)

 Qty Per: 1 Price:
$88.34
Stock:
In Stock
Qty:
Ref: 26 Item:

203787 - BRUSH CUTTER EXTREME DUTY SERIES 2 RELIEF BLOCK (FITS 203785)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 9 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:
Ref: 28 Item:

203789 - BRUSH CUTTER EXTREME DUTY SERIES 2 RELIEF BLOCK O-RING (FITS 203785)

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 10 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 11 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 29 Item:

203783 - BRUSH CUTTER EXTREME DUTY SERIES 2 MOTOR TO DIRECT DRIVE ORING FITS BC75-SAE-C DRIVE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 11 Item:

203005-2 - BRUSH CUTTER MOTOR COVER FOR 72" EXTREME DUTY SERIES 2

 Qty Per: 1 Price:
$575.01
Stock:
In Stock
Qty:
Ref: 12 Item:

216402 - STORAGE TUBE FOR MANUAL

 Qty Per: 1 Price:
$24.53
Stock:
In Stock
Qty:
Ref: 13 Item:

299855 - LOCK WASHER 3/4" GRADE 8

 Qty Per: 8 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 14 Item:

299628 - NYLOCK NUT GRADE 8 HEX 3/4"-10

 Qty Per: 8 Price:
$6.60
Stock:
In Stock
Qty:
Ref: 15 Item:

299470 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 3 1/2"

 Qty Per: 8 Price:
$11.61
Stock:
In Stock
Qty:
Ref: 16 Item:

203027 - BRUSH CUTTER BLADE, 72" EXTREME AND HEAVY DUTY note: get length if going on a 60" unit

For Kit, use 203027E-KIT

Qty Per: 4 Price:
$81.99
Stock:
In Stock
Qty:
Ref: 17 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 18 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 19 Item:

203027E-KIT - EXTREME DUTY 72" CUTTER BLADE KIT (4 W/ HARDWARE) 3203027E

 Qty Per: 1 Price:
$468.44
Stock:
In Stock
Qty:
Ref: 20 Item:

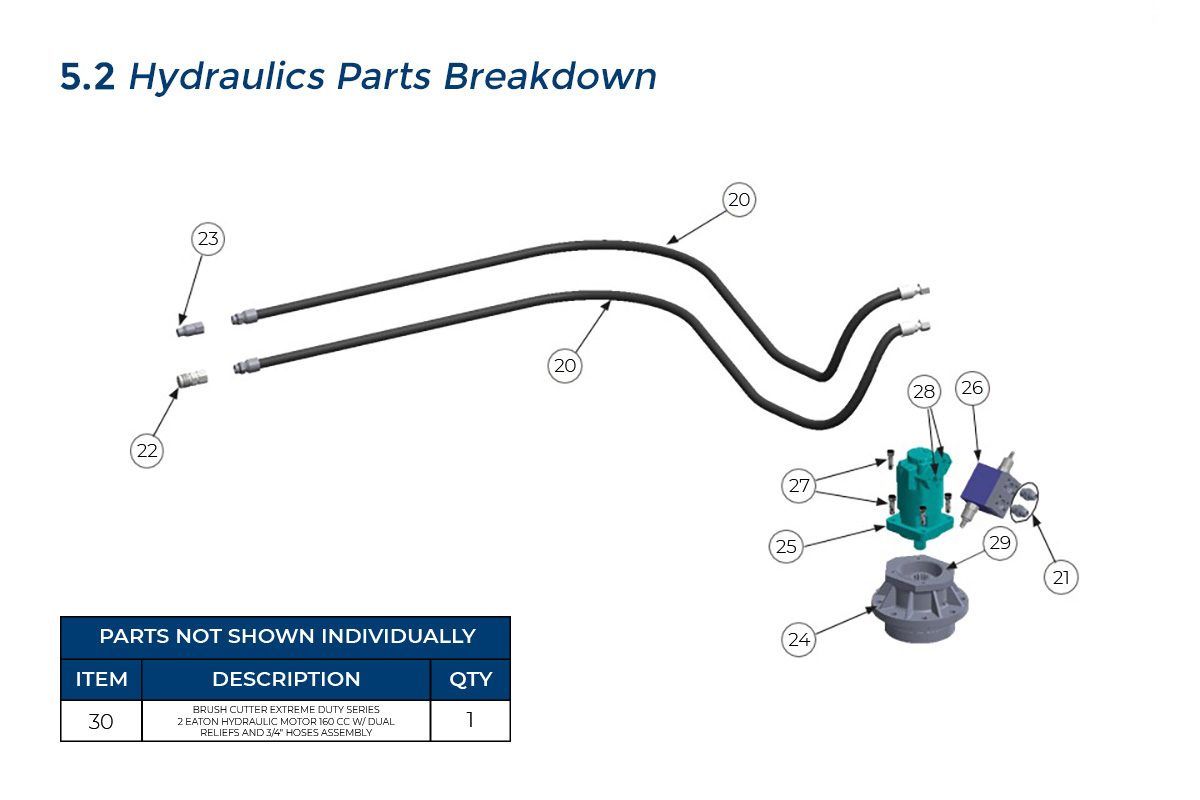

203782 - BRUSH CUTTER EXTREME DUTY SERIES 2 HOSE SET #12 FEMALE JIC TO #12 MALE ORB (NO COUPLERS)

 Qty Per: 1 Price:
$316.84
Stock:
In Stock
Qty:
Ref: 21 Item:

295010-M12JIC-M12ORB - HYDRAULIC STRAIGHT FITTING MALE #12 JIC X MALE #12 ORING BOSS

 Qty Per: 2 Price:
$11.63
Stock:
In Stock
Qty:
Ref: 22 Item:

224011 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$92.97
Stock:
In Stock
Qty:
Ref: 23 Item:

224012 - COUPLER, MALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$77.80
Stock:
In Stock
Qty:
Ref: 25 Item:

203781 - BRUSH CUTTER EXTREME DUTY SERIES 2 MOTOR 160CC (FOR 203785)

 Qty Per: 1 Price:
$3,131.00
Stock:
In Stock
Qty:
Ref: 27 Item:

299332 - BOLT GRADE 8 ALLEN HEAD 1/2"-13 X 1 3/4"

 Qty Per: 4 Price:
$3.65
Stock:
In Stock
Qty:
Ref: 30 Item:

203785 - BRUSH CUTTER EXTREME DUTY SERIES 2 EATON HYDRAULIC MOTOR 160CC W/ DUAL RELIEFS AND HOSES ASSEMBLY

 Qty Per: 1 Price:
$4,077.00
Stock:
In Stock
Qty:
