Parts Book

103127

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 2 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:

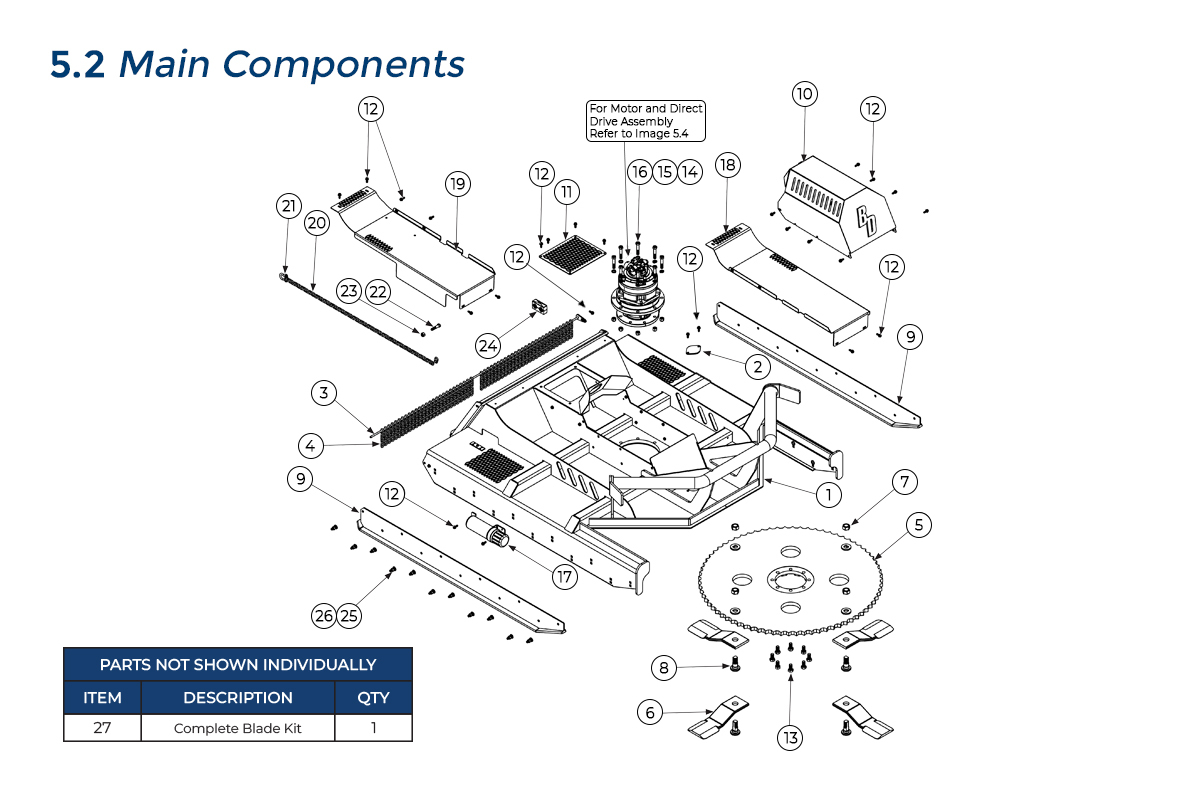

Ref: 1 Item:

203400 - 72" Deck Weldment

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 3 Item:

203055 - BRUSH CUTTER 72" CHAIN RETAINER BAR(FITS HD AND EXT. DUTY)

 Qty Per: 1 Price:
$150.38
Stock:
In Stock
Qty:
Ref: 9 Item:

203464 - Skid Shoe

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 4 Item:

203045 - BRUSH CUTTER STD 4 LINK DISCHARGE CHAIN

 Qty Per: 55 Price:
$16.20
Stock:
In Stock
Qty:
Ref: 18 Item:

203480-L - Left Debris Cover

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 5 Item:

203438 - BRUSH CUTTER SEVERE DUTY SERIES 2 BLADE CARRIER 72" WITH 4 ACCESS HOLES

 Qty Per: 1 Price:
$3,052.00
Stock:
Low Stock
Qty:
Ref: 19 Item:

203480-R - Right Debris Cover

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 6 Item:

203025 - BRUSH CUTTER BLADE, SEVERE DUTY

For complete blade kit with hardware, use 203025-KIT

Qty Per: 4 Price:
$149.93
Stock:
In Stock
Qty:
Ref: 21 Item:

299340 - Steel Clevis & 7/16" Pin Shackle (Included with Item #20)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 7 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 22 Item:

299414 - 9/16"–12 x 2 1/2" Bolt Hex Head Grade 8

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 8 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 23 Item:

299619 - 9/16"–12 Lock Nut Grade 8

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 10 Item:

203404-2 - BRUSH CUTTER 72" SEVERE DUTY SERIES 2 MOTOR COVER

 Qty Per: 1 Price:
$718.79
Stock:
Low Stock
Qty:
Ref: 28 Item:

203472 - Valve Block to Machine Hose 20" OAL 3/4" ID 45 Degree Female #12 JIC to Straight Female #12 JIC

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 11 Item:

203436 - BRUSH CUTTER SEVERE DUTY SERIES 2 ACCESS COVER

 Qty Per: 1 Price:
$173.45
Stock:
Low Stock
Qty:
Ref: 29 Item:

203476 - Machine Side Hose Set & Hose Wrap 106" OAL 3/4" ID Straight Female #12 JIC to Straight Male #12 O–Ring Boss

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 12 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 29 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 31 Item:

295010-F08NPT-F04NPT - Hydraulic Straight Fitting Female #8 Pipe Thread to Female #4 Pipe Thread

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 13 Item:

299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2"

 Qty Per: 8 Price:
$15.39
Stock:
In Stock
Qty:
Ref: 36 Item:

203474 - H–Valve

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 14 Item:

299845 - LOCK WASHER 5/8" GRADE 8

 Qty Per: 8 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 38 Item:

295050-M12JIC-M12JICM12ORB - Hydraulic Tee Fitting Male #12 JIC x Male #12 JIC x Male #12 O–Ring Boss

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 15 Item:

299627 - NYLOCK NUT GRADE 8 HEX 5/8"-11

 Qty Per: 8 Price:
$4.24
Stock:
In Stock
Qty:
Ref: 39 Item:

295050-F12JIC-M12JICF04ORB - Hydraulic Tee FItting Female #12 JIC x Male #12 JIC x Female #4 O–Ring Boss

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 16 Item:

299445 - BOLT GRADE 8 HEX 5/8-11 X 3 1/4"

 Qty Per: 8 Price:
$11.31
Stock:
In Stock
Qty:
Ref: 40 Item:

295030-M04JIC-M04ORB - Hydraulic 90 Degree FItting Male #4 JIC x Male #4 O–Ring Boss

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 17 Item:

216402 - STORAGE TUBE FOR MANUAL

 Qty Per: 1 Price:
$24.53
Stock:
In Stock
Qty:
Ref: 41 Item:

295010-M04BSPP-M06JIC - Case Drain Hydraulic Straight Fitting Male #4 BSPP x Male #6 JIC

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 20 Item:

203048 - BRUSH CUTTER SAFETY CHAIN AND CLEVIS

 Qty Per: 1 Price:
$117.44
Stock:
In Stock
Qty:
Ref: 42 Item:

203478 - U–Bolt

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 24 Item:

206825 - HOSE CLAMP FITS 1" DUAL HOSES (5/16-18 x 2 3/8" BOLT)

 Qty Per: 1 Price:
$88.34
Stock:
In Stock
Qty:
Ref: 43 Item:

295010-M12JIC-M16ORB - Hydraulic Straight Fitting Male #12 JIC x Male #16 O–Ring Boss

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 25 Item:

299336 - CARRIAGE BOLT 1/2-13 X 1 1/2" GRADE 8

 Qty Per: 22 Price:
$6.80
Stock:
In Stock
Qty:
Ref: 45 Item:

203427-1B - Pressure Gauge Bolt 10–24 x 1/2"

 Qty Per: 3 Price: N/A Stock:
Unavailable
Ref: 26 Item:

299655 - STOVER NUT GRADE 8 1/2-13 (FITS CYLINDER ON SEVERE DUTY HYDRAULIC PALLET FORK)

 Qty Per: 22 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 47 Item:

203405-H/IR - Hydraulic Piston Motor with Integrated 3500 PSI Relief Valves 200cc

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 27 Item:

203025-KIT - SEVERE DUTY 72" CUTTER BLADE KIT (4 BLADES W/ HARDWARE) 3203025

 Qty Per: 1 Price:
$715.02
Stock:
In Stock
Qty:
Ref: 70 Item:

202816 - Bearing – Cup

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 30 Item:

203428 - BRUSH CUTTER SEVERE DUTY HOSE ONLY FOR PRESSURE GAUGE

 Qty Per: 1 Price:
$197.87
Stock:
Low Stock
Qty:
Ref: 71 Item:

202818 - Bearing – Cone

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 32 Item:

203413 - BRUSH CUTTER, SKID STEER SEVERE DUTY, CASE DRAIN LINE

 Qty Per: 1 Price:
$300.35
Stock:
In Stock
Qty:
Ref: 78 Item:

202832 - Plug – Pipe

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 33 Item:

224012 - COUPLER, MALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

If your machine has 3/4 body couplers, use 224057. If your machine has 5/8 body couplers, use 224052

Qty Per: 1 Price:
$77.80
Stock:
In Stock
Qty:
Ref: 83 Item:

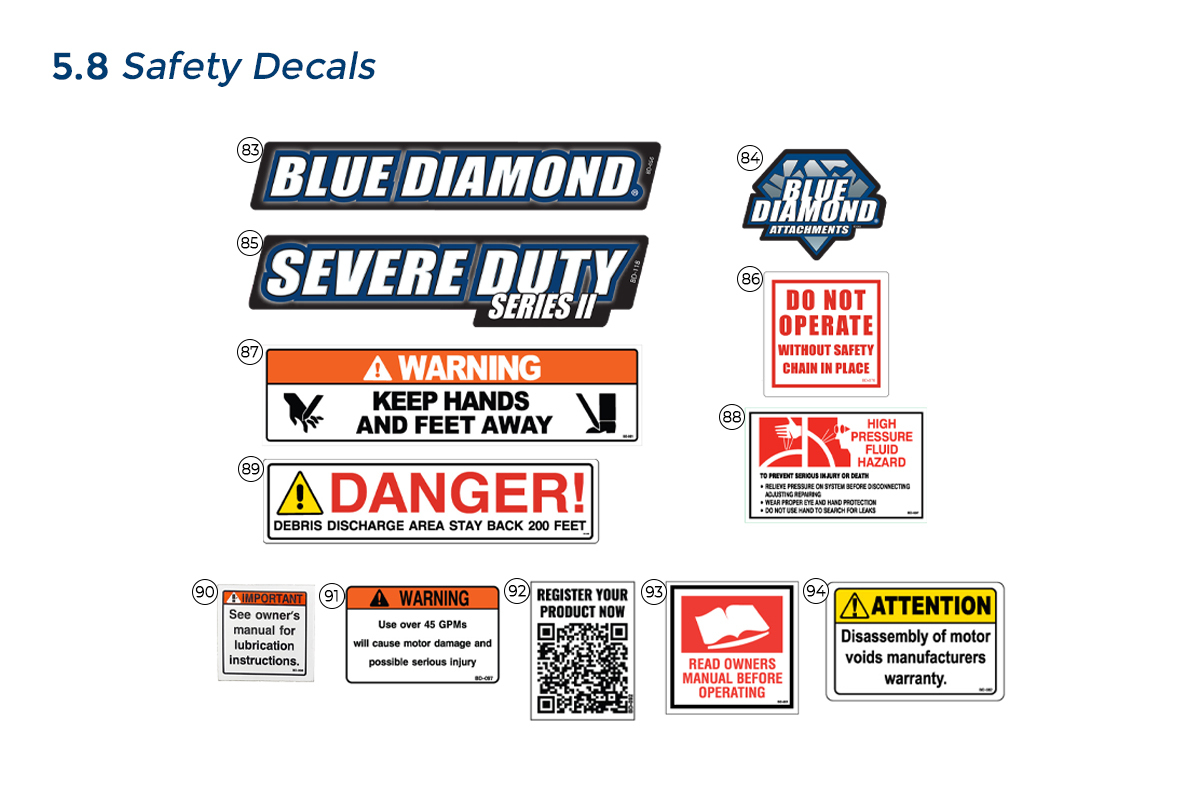

BD-057 - 3.0" x 17.0" Decal, Blue Diamond

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 34 Item:

224011 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

If your machine has 3/4 bocy couplers, use 224055. If your machine has 5/8 body couplers, use 224050

Qty Per: 1 Price:
$92.97
Stock:
In Stock
Qty:
Ref: 84 Item:

BD-060 - 2.4375” x 3.375” Decal, Blue Diamond Attachments

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 35 Item:

224063 - COUPLER FEMALE FLAT FACE 3/8" BODY 1/2" NPT

For machines needing Male coupler, use 224064

Qty Per: 1 Price:
$80.79
Stock:
In Stock
Qty:
Ref: 85 Item:

BD-118-2 - 1.875" x 8.125" Decal, Severe Duty

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 37 Item:

203475 - SEVERE DUTY 72" SERIES 2 BRUSH CUTTER H VALVE CHECK VALVE ONLY - NO FITTINGS

 Qty Per: 1 Price:
$126.96
Stock:
In Stock
Qty:
Ref: 86 Item:

BD-070 - Decal, Do Not Operate Without Safety Chain in Place

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 44 Item:

203414 - BRUSH CUTTER SEVERE DUTY SERIES 2 MOTOR COVER PRESSURE GAUGE

 Qty Per: 1 Price:
$281.26
Stock:
In Stock
Qty:
Ref: 87 Item:

BD-081 - 3.0" x 12.0" Decal, Warning Keep Hands and Feet Away

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 46 Item:

203427-1N - BRUSH CUTTER SEVERE DUTY PRESSURE GAUGE NUT 10-24

 Qty Per: 3 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 88 Item:

BD-007 - DECAL, HIGH PRESSURE FLUID HAZARD 3.0 X 4.75

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 48 Item:

203350 - BRUSH CUTTER DIRECT DRIVE ASSEMBLY FOR SEVERE DUTY SERIES 2 BRUSH CUTTER

 Qty Per: 1 Price:
$3,189.00
Stock:
In Stock
Qty:
Ref: 89 Item:

BD-055 - DECAL, DANGER DEBRIS DISCHARGE AREA STAY BACK 200 FEET 3.0 X 11.9062

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 49 Item:

203395 - BRUSH CUTTER SEVERE DUTY PISTON MOTOR DISTRIBUTOR VALVE WITH BUILT IN 3500 PSI RELIEFS

 Qty Per: 1 Price:
$1,196.00
Stock:
In Stock
Qty:
Ref: 90 Item:

BD-008 - Decal, See Owner's Manual for Lubrication Instructions

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 62 Item:

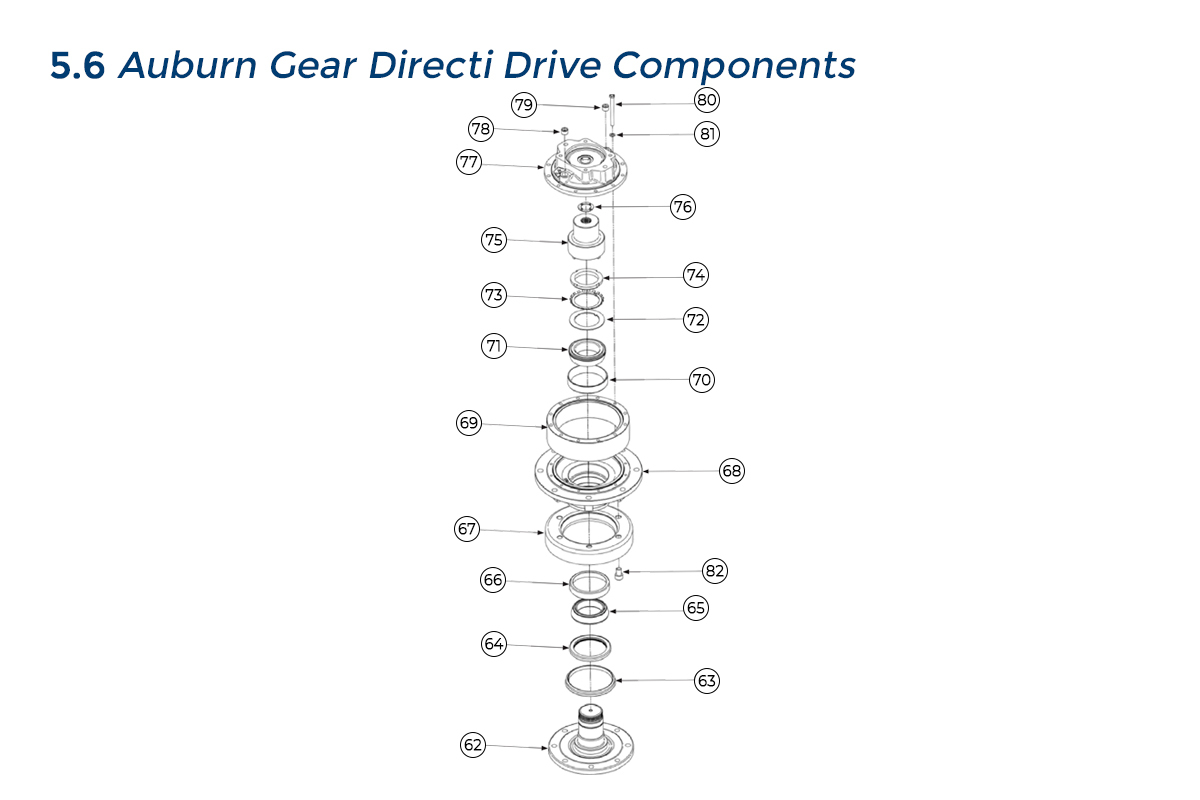

202800 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SHAFT OUT PUT (SPINDLE)

 Qty Per: 1 Price:
$2,342.00
Stock:
Low Stock
Qty:
Ref: 91 Item:

BD-085 - 2.5" x 4.0" Decal, Max Flow 38 GPMs

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 63 Item:

202802 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SEAL - V RING

 Qty Per: 1 Price:
$219.05
Stock:
In Stock
Qty:
Ref: 92 Item:

BD-092 - 1.5” x 2.0” Decal, Warranty Registration QR

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 64 Item:

202804 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SEAL - OIL

 Qty Per: 1 Price:
$84.11
Stock:
In Stock
Qty:
Ref: 93 Item:

BD-001 - 3.0” x 3.0” Decal, Read Owner’s Manual

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 65 Item:

202806 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BEARING - CONE

 Qty Per: 1 Price:
$381.60
Stock:
In Stock
Qty:
Ref: 94 Item:

BD-082 - 2.0" x 3.0" Decal, Attention Disassembly of Motor Voids Warranty

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 66 Item:

202808 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BEARING - CUP

 Qty Per: 1 Price:
$280.36
Stock:
In Stock
Qty:
Ref: 67 Item:

202810 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 GUARD

 Qty Per: 1 Price:
$265.43
Stock:
In Stock
Qty:
Ref: 68 Item:

202812 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 HUB

 Qty Per: 1 Price:
$1,862.00
Stock:
Low Stock
Qty:
Ref: 69 Item:

202814 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 GEAR - RING

 Qty Per: 1 Price:
$706.67
Stock:
Low Stock
Qty:
Ref: 72 Item:

202820 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - THRUST

 Qty Per: 1 Price:
$36.95
Stock:
In Stock
Qty:
Ref: 73 Item:

202822 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - LOCK

 Qty Per: 1 Price:
$71.71
Stock:
In Stock
Qty:
Ref: 74 Item:

202824 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 NUT - LOCK

 Qty Per: 1 Price:
$486.73
Stock:
Low Stock
Qty:
Ref: 75 Item:

202826 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 COUPLING

 Qty Per: 1 Price:
$655.82
Stock:
Low Stock
Qty:
Ref: 76 Item:

202828 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - THRUST 2

 Qty Per: 1 Price:
$13.01
Stock:
In Stock
Qty:
Ref: 77 Item:

202830 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 COVER

 Qty Per: 1 Price:
$862.77
Stock:
Low Stock
Qty:
Ref: 79 Item:

202834 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 PLUG - PIPE 2

 Qty Per: 1 Price:
$6.04
Stock:
In Stock
Qty:
Ref: 80 Item:

202836 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 BOLT - HEX HEAD

 Qty Per: 12 Price:
$20.78
Stock:
In Stock
Qty:
Ref: 81 Item:

202838 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 WASHER - FLAT

 Qty Per: 12 Price:
$10.87
Stock:
In Stock
Qty:
Ref: 82 Item:

202840 - BRUSH CUTTER DIRECT DRIVE SEVERE DUTY SERIES 2 SCREW - SKT - HD CAP

 Qty Per: 6 Price:
$5.04
Stock:
In Stock
Qty:
