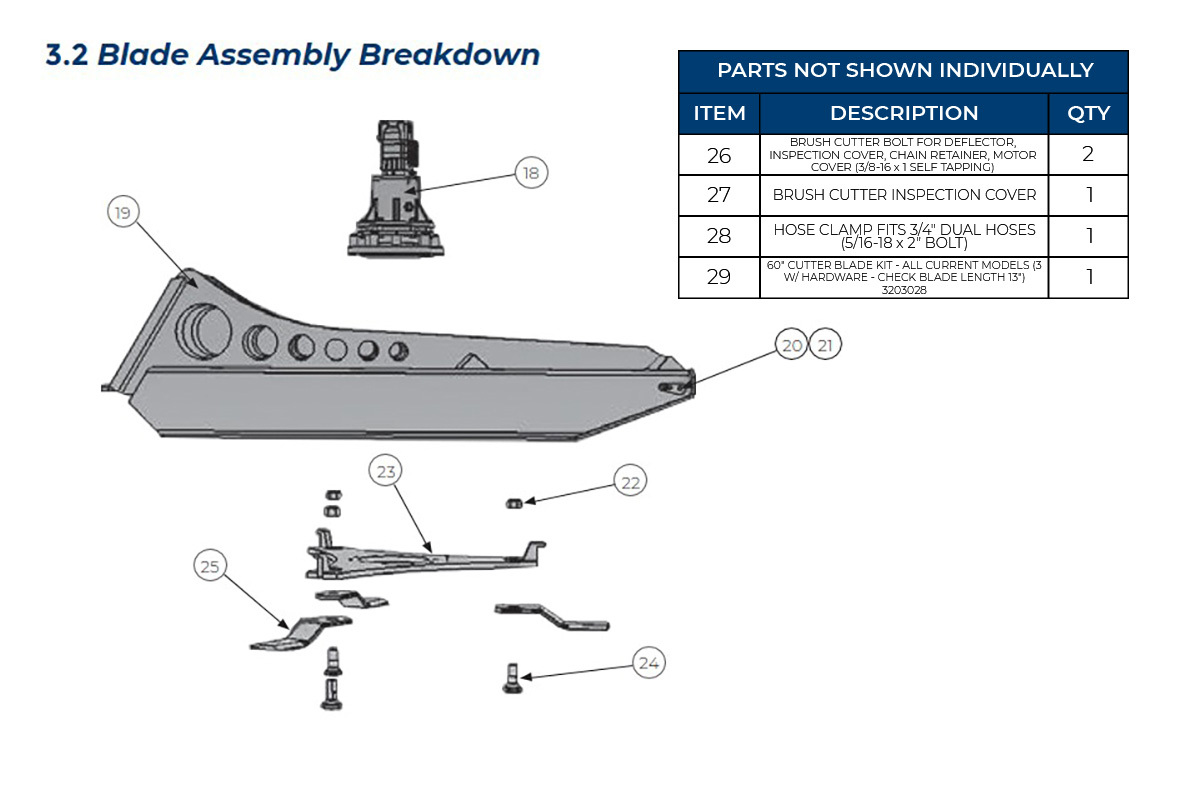

Parts Book

103004

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 1 Item:

203068 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY TAPERED STYLE get S/N (Requires 3/4" blade carrier bolts)

Units manufactured 2014 and older and a selection in 2022 have straight spindle 203064

Qty Per: 1 Price:
$1,411.00
Stock:
In Stock
Qty:
Ref: 19 Item:

203500 - BRUSH CUTTER DECK WELDMENT 60" HD

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 2 Item:

203914 - BRUSH CUTTER WIRE PROTECTION, LOWER BUSHING & BOLT-REQUIRES 5

Units manufactured before 2014 with 10 bolt holes on the drive spindle use 203130 (1x)

Qty Per: 5 Price:
$30.09
Stock:
In Stock
Qty:
Ref: 3 Item:

203134 - BRUSH CUTTER UPPER SEAL GUARD RING (ring style) 3/4" holes

Units manufactured 2014 and before with 1/2" housing bolts, use 203135

Qty Per: 1 Price:
$302.14
Stock:
In Stock
Qty:
Ref: 4 Item:

203056 - BRUSH CUTTER HOUSING BOLT & NUT 3/4" (short for ring style wire protection)

Units 2014 & older with 1/2" housing bolts use 203061 & 299655

Qty Per: 6 Price:
$12.15
Stock:
In Stock
Qty:
Ref: 5 Item:

299657 - 3/4-10 STOVER NUT GRADE C ZINC PLATED

 Qty Per: 6 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 6 Item:

203086 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, LARGE BEARING STYLE (GET S/N) for 3" spindle

Units manufactured 2014 and older and a selection in 2022 with straight spindles use 203085

Qty Per: 1 Price:
$123.85
Stock:
In Stock
Qty:
Ref: 7 Item:

203074 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE (5" DIAMETER) get S/N for 3" spindle

Units manufactured 2014 and older and a selection in 2022 with straight spindles do not use this bearing, see 203075

Qty Per: 1 Price:
$222.73
Stock:
In Stock
Qty:
Ref: 8 Item:

203076 - BRUSH CUTTER DIRECT DRIVE HOUSING ONLY, WIDE TOP C-FLANGE

Units manufactured 2014 and older will need to replace the whole direct drive if the straight spindle housing needs to be replaced. 203073. If making this change, a motor and motor flange seal will also be needed

Qty Per: 1 Price:
$1,417.00
Stock:
In Stock
Qty:
Ref: 9 Item:

203072 - GREASE ZERK FOR BRUSH CUTTER DIRECT DRIVE HOUSING, PICKUP BROOM

Units manufactured 2014 and older with a site glass do not have a grease zerk. Sight glass is 203915

Qty Per: 1 Price:
$5.33
Stock:
In Stock
Qty:
Ref: 10 Item:

203075 - BRUSH CUTTER DIRECT DRIVE BEARING AND RACE (4.5" DIAMETER) 2 5/8" spindle requires 2, 3" spindle requires 1x + 1x 203074

Units manufactured 2014 and older and a selection in 2022 use 2 of this bearing

Qty Per: 1 Price:
$158.72
Stock:
In Stock
Qty:
Ref: 11 Item:

203105 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT LOWER

 Qty Per: 1 Price:
$41.79
Stock:
In Stock
Qty:
Ref: 12 Item:

203095 - BRUSH CUTTER DIRECT DRIVE LOCK RING

 Qty Per: 1 Price:
$96.68
Stock:
In Stock
Qty:
Ref: 13 Item:

203100 - BRUSH CUTTER STAR LOCK WASHER

 Qty Per: 1 Price:
$38.77
Stock:
In Stock
Qty:
Ref: 14 Item:

203090 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT UPPER

 Qty Per: 1 Price:
$32.68
Stock:
In Stock
Qty:
Ref: 15 Item:

203760 - BRUSH CUTTER, MOTOR, 80CC C-FLANGE, WITH CROSSPORT RELIEF VALVE (203770 BLOCK)

2018 and older units with magneto (oval) motor flange use 203715

Qty Per: 1 Price:
$1,757.00
Stock:
In Stock
Qty:
Ref: 16 Item:

203087 - BRUSH CUTTER DIRECT DRIVE, RETENTION RING (FITS LARGE BEARING STYLE SEAL UNITS)

 Qty Per: 1 Price:
$38.12
Stock:
In Stock
Qty:
Ref: 17 Item:

203109 - BRUSH CUTTER, DIRECT DRIVE BELLOW ASSEMBLY (SMALL STRAIGHT THREAD FOR GREASE OUTLET)

Units manufactured between 2015 & 2017 had no bellows. 2014 & older use 203108

Qty Per: 1 Price:
$61.09
Stock:
In Stock
Qty:
Ref: 18 Item:

203073 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, TAPERED SPINDLE, WIDE TOP HIGH FLOW OR SEVERE DUTY, FITS 3/4" blade carrier bolts

Units manufactured 2014 and older and a selection in 2022 were built with a straight spindle and need to change to this assembly

Qty Per: 1 Price:
$3,051.00
Stock:
In Stock
Qty:
Ref: 20 Item:

203045 - BRUSH CUTTER STD 4 LINK DISCHARGE CHAIN

 Qty Per: 36 Price:
$16.20
Stock:
In Stock
Qty:
Ref: 21 Item:

203050 - BRUSH CUTTER 60" CHAIN RETAINER BAR(FITS HD AND EXT. DUTY)

 Qty Per: 1 Price:
$106.51
Stock:
Low Stock
Qty:
Ref: 22 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 23 Item:

203043 - BRUSH CUTTER BLADE CARRIER 60" HD/EXTREME 3/4 BOLT HOLES (3 BLADE)

Units made 2016 and earlier with 1/2" blade carrier bolts use 203046

Qty Per: 1 Price:
$1,097.00
Stock:
Low Stock
Qty:
Ref: 24 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 25 Item:

203028 - BRUSH CUTTER BLADE, HD Series 2 (13 1/8" LONG FROM THE CENTER OF THE BOLT HOLE) (60" only)

For Kit, use 203028-KIT

Qty Per: 3 Price:
$117.70
Stock:
In Stock
Qty:
Ref: 26 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 2 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 27 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:
Ref: 28 Item:

206820 - HOSE CLAMP FITS 3/4" DUAL HOSES (5/16-18 x 2" BOLT)

 Qty Per: 1 Price:
$44.97
Stock:
In Stock
Qty:
Ref: 29 Item:

203028-KIT - 60" CUTTER BLADE KIT - ALL CURRENT MODELS (3 W/ HARDWARE - CHECK BLADE LENGTH 13") 3203028

 Qty Per: 1 Price:
$363.19
Stock:
In Stock
Qty:
