Parts Book
103820
Revision: 000
Ref | Item | Qty Per | Price | Stock | Qty | |
---|---|---|---|---|---|---|

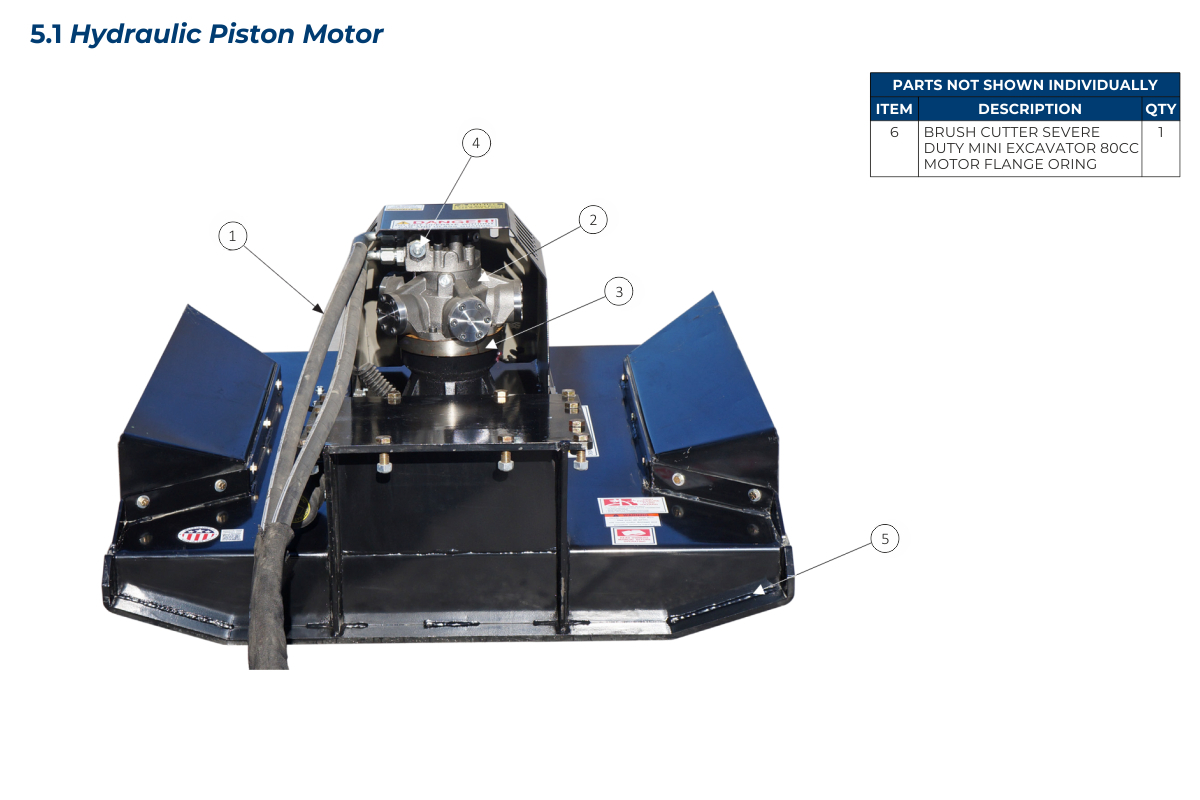

Ref: 1 |
![]() |
Item: | Qty Per: 1 |
Price:
$606.32
|
Stock:
Low Stock
|
Qty: |
Ref: 5 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
Ref: 2 |
![]() |
Item:
203800 - BRUSH CUTTER, MINI EXCAVATOR, SEVERE DUTY, 80CC PISTON MOTOR WITH INTEGRATED RELIEF BLOCK The motor on some 2017 units had a side mounted valve block. Some 2017-2018 units had an external relief hose on the header. This is a direct replacement for either. |
Qty Per: 1 |
Price:
$2,621.00
|
Stock:
In Stock
|
Qty: |
Ref: 6 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
Ref: 3 |
![]() |
Item: | Qty Per: 1 |
Price:
$358.73
|
Stock:
In Stock
|
Qty: |
Ref: 19 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
Ref: 4 |
![]() |
Item:
203815 - BRUSH CUTTER MINI EXCAVATOR SEVERE DUTY VALVE CARTRIDGE FOR 80CC IAM MOTOR Check the print on your valve and match it. This one will say FPM. If yours says VLP, use 203816 |
Qty Per: 2 |
Price:
$275.57
|
Stock:
In Stock
|
Qty: |
Ref: 20 | Item: | Qty Per: 4 | Price: N/A | Stock: Unavailable |
||
Ref: 4 |
![]() |
Item:
Check the print on your valve and match it. This one will say VLP. If yours says FPM, use 203815 |
Qty Per: 2 |
Price:
$360.35
|
Stock:
In Stock
|
Qty: |
Ref: 21 | Item: | Qty Per: 5 | Price: N/A | Stock: Unavailable |
||

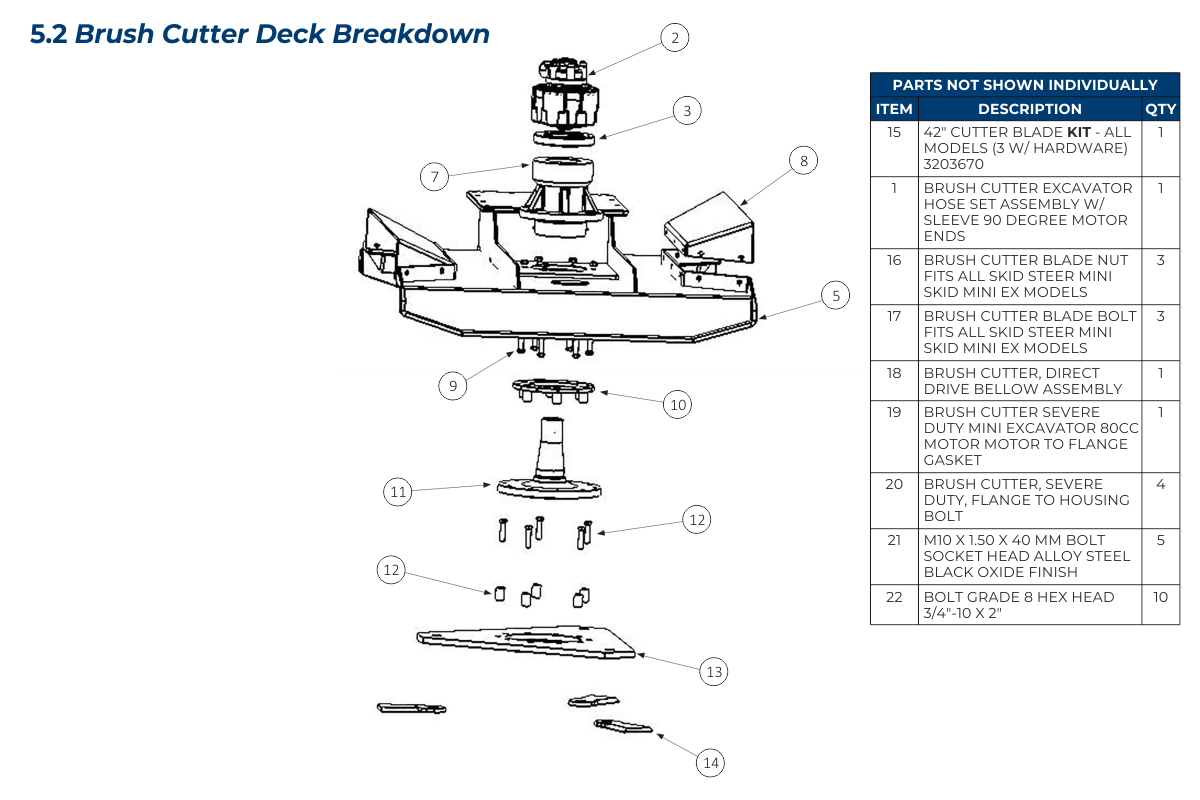

Ref: 7 |
![]() |
Item:
Units manufactured 2014 and older and a selection in 2022 were built with a straight spindle and need to change to this assembly |
Qty Per: 1 |
Price:
$2,768.00
|
Stock:
In Stock
|
Qty: |
Ref: 8 |
![]() |
Item: | Qty Per: 1 |
Price:
$614.79
|
Stock:
In Stock
|
Qty: |
Ref: 9 |
![]() |
Item:
203056 - BRUSH CUTTER HOUSING BOLT & NUT 3/4" (short for ring style wire protection) Units 2014 & older with 1/2" housing bolts use 203061 & 299655 |
Qty Per: 6 |
Price:
$11.02
|
Stock:
In Stock
|
Qty: |
Ref: 10 |
![]() |
Item: | Qty Per: 1 |
Price:
$274.13
|
Stock:
In Stock
|
Qty: |
Ref: 11 |
![]() |
Item:
Units manufactured 2014 and older and a selection in 2022 have straight spindle 203064 |
Qty Per: 1 |
Price:
$1,279.00
|
Stock:
In Stock
|
Qty: |
Ref: 12 |
![]() |
Item: | Qty Per: 5 |
Price:
$27.30
|
Stock:
In Stock
|
Qty: |
Ref: 13 |
![]() |
Item: | Qty Per: 1 |
Price:
$921.20
|
Stock:
Low Stock
|
Qty: |
Ref: 14 |
![]() |
Item:
203670 - BRUSH CUTTER, MINI-EX BLADE FOR 42" (FITS 3 BLADE STYLE CARRIER) For complete kit with hardware, use 203670-KIT |
Qty Per: 3 |
Price:
$100.57
|
Stock:
In Stock
|
Qty: |
Ref: 15 |
![]() |
Item: | Qty Per: 1 |
Price:
$384.71
|
Stock:
In Stock
|
Qty: |
Ref: 16 |
![]() |
Item: | Qty Per: 3 |
Price:
$10.15
|
Stock:
In Stock
|
Qty: |
Ref: 17 |
![]() |
Item: | Qty Per: 3 |
Price:
$36.21
|
Stock:
In Stock
|
Qty: |
Ref: 18 |
![]() |
Item:
203109 - BRUSH CUTTER, DIRECT DRIVE BELLOW ASSEMBLY (SMALL STRAIGHT THREAD FOR GREASE OUTLET) Units manufactured between 2015 & 2017 had no bellows. 2014 & older use 203108 |
Qty Per: 1 |
Price:
$55.43
|
Stock:
In Stock
|
Qty: |
Ref: 22 |
![]() |
Item:
299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2" Blade Carrier Bolt - Units made 2016 & earlier with 1/2" blade carrier bolts use 203062 and 299655 |
Qty Per: 10 |
Price:
$13.96
|
Stock:
In Stock
|
Qty: |

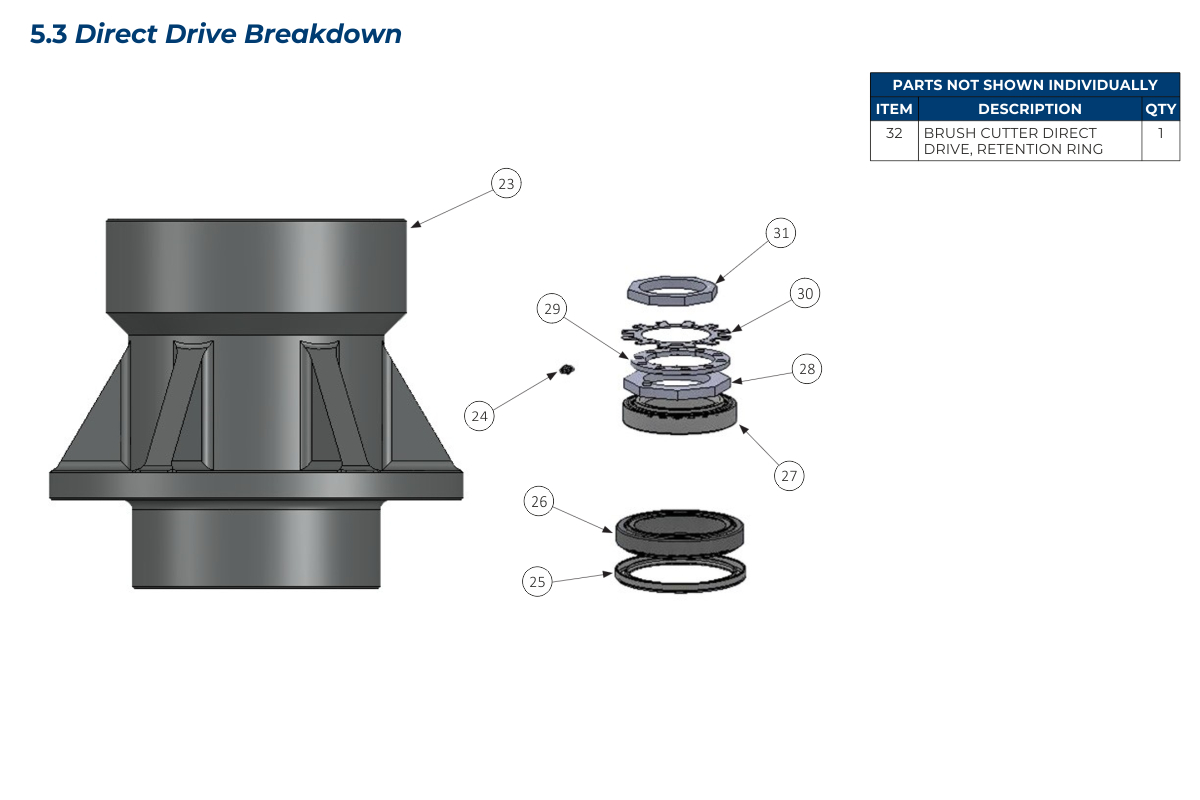

Ref: 23 |
![]() |
Item: | Qty Per: 1 |
Price:
$1,286.00
|
Stock:
Low Stock
|
Qty: |
Ref: 24 |
![]() |
Item: | Qty Per: 1 |
Price:
$4.84
|
Stock:
In Stock
|
Qty: |
Ref: 25 |
![]() |
Item: | Qty Per: 1 |
Price:
$112.37
|
Stock:
In Stock
|
Qty: |
Ref: 26 |
![]() |
Item: | Qty Per: 1 |
Price:
$202.08
|
Stock:
In Stock
|
Qty: |
Ref: 27 |
![]() |
Item: | Qty Per: 1 |
Price:
$144.01
|
Stock:
In Stock
|
Qty: |
Ref: 28 |
![]() |
Item: | Qty Per: 1 |
Price:
$37.92
|
Stock:
In Stock
|
Qty: |
Ref: 29 |
![]() |
Item: | Qty Per: 1 |
Price:
$87.72
|
Stock:
In Stock
|
Qty: |
Ref: 30 |
![]() |
Item: | Qty Per: 1 |
Price:
$35.18
|
Stock:
In Stock
|
Qty: |
Ref: 31 |
![]() |
Item: | Qty Per: 1 |
Price:
$29.65
|
Stock:
In Stock
|
Qty: |
Ref: 32 |
![]() |
Item: | Qty Per: 1 |
Price:
$34.59
|
Stock:
In Stock
|
Qty: |
