Parts Book

303865

Revision: 001
Ref Item Qty Per Price Stock Qty
Ref: 4 Item:

299655 - STOVER NUT GRADE 8 1/2-13 (FITS CYLINDER ON SEVERE DUTY HYDRAULIC PALLET FORK)

 Qty Per: 16 Price:
$3.26
Stock:
In Stock
Qty:

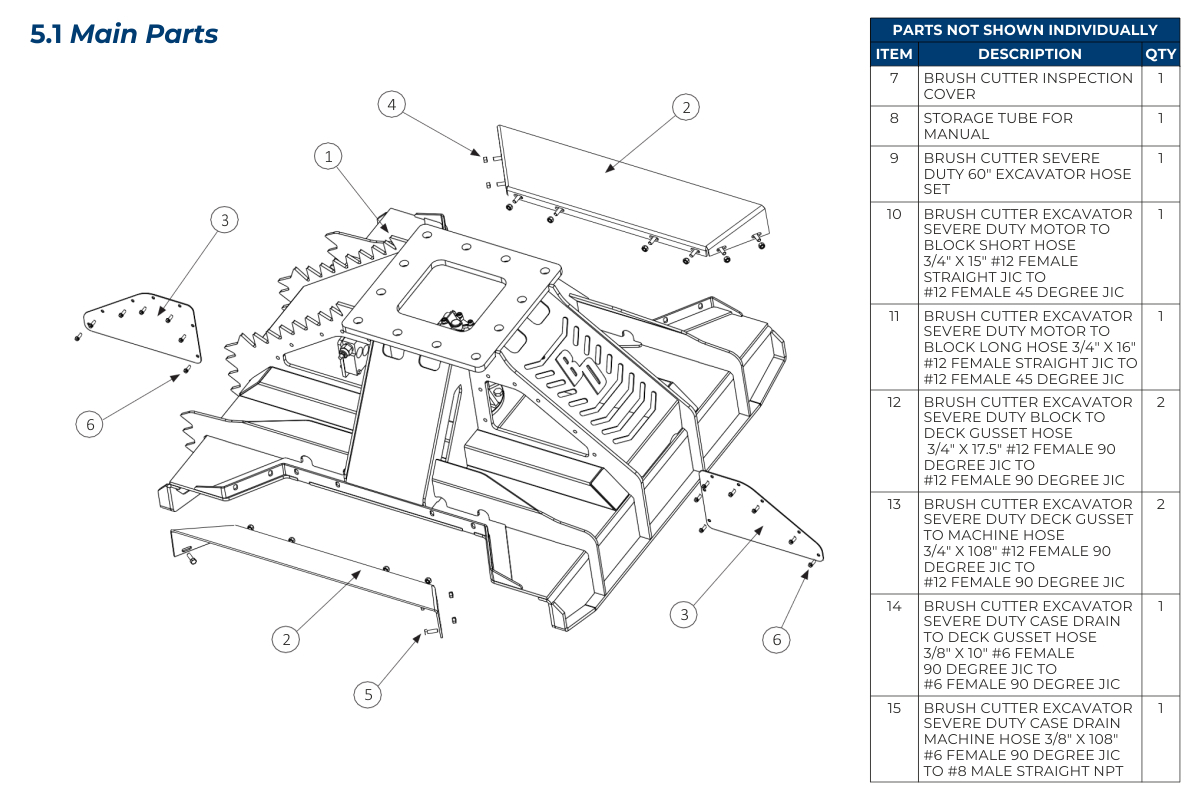

Ref: 1 Item:

203890 - BRUSH CUTTER EXCAVATOR SEVERE DUTY MAIN DECK WELDMENT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 5 Item:

299431 - BOLT GRADE 8 HEX HEAD 1/2"-13 X 1

 Qty Per: 16 Price:
$3.28
Stock:
In Stock
Qty:
Ref: 2 Item:

203885 - BRUSH CUTTER SEVERE DUTY EXCAVATOR DISCHARGE DEFLECTOR WITH HARDWARE (REQ'S 2)

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 6 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 18 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 3 Item:

203889 - BRUSH CUTTER EXCAVATOR SEVERE DUTY SIDE ACCESS COVER SET

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 7 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:
Ref: 9 Item:

203870 - BRUSH CUTTER SEVERE DUTY 60" EXCAVATOR HOSE SET

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 8 Item:

216402 - STORAGE TUBE FOR MANUAL

 Qty Per: 1 Price:
$24.53
Stock:
In Stock
Qty:
Ref: 10 Item:

203864 - BRUSH CUTTER EXCAVATOR SEVERE DUTY MOTOR TO BLOCK SHORT HOSE 3/4" X 15" #12 FEMALE STRAIGHT JIC TO #12 FEMALE 45 DEGREE JIC

 Qty Per: 1 Price: N/A Stock:
Unavailable

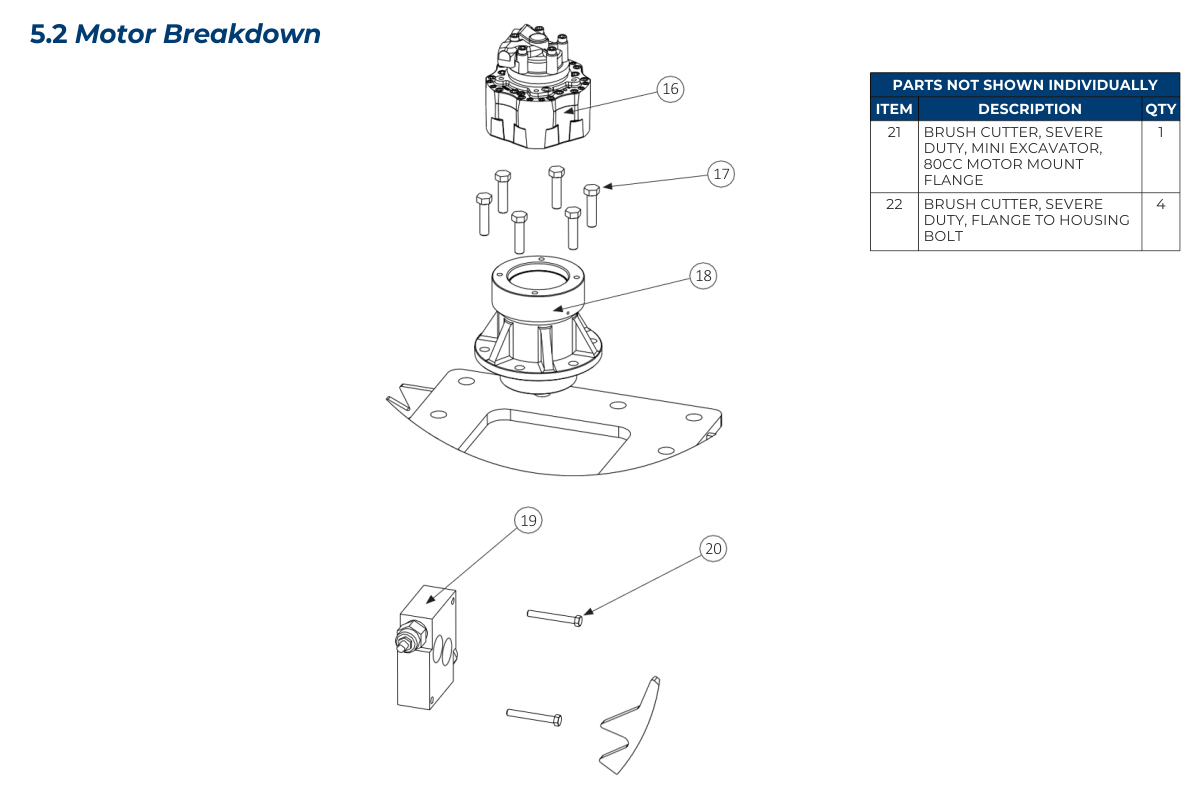

Ref: 16 Item:

203405-H - BRUSH CUTTER, SEVERE DUTY, PISTON MOTOR (200cc)

 Qty Per: 1 Price:
$3,308.00
Stock:
In Stock
Qty:
Ref: 11 Item:

203865 - BRUSH CUTTER EXCAVATOR SEVERE DUTY MOTOR TO BLOCK LONG HOSE 3/4" X 16" #12 FEMALE STRAIGHT JIC TO #12 FEMALE 45 DEGREE JIC

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 18 Item:

203071 - BRUSH CUTTER, DIRECT DRIVE, HOUSING ONLY (LARGE BEARING STYLE)

 Qty Per: 1 Price:
$1,416.00
Stock:
Limited Stock - Call for Availability
Qty:
Ref: 12 Item:

203866 - BRUSH CUTTER EXCAVATOR SEVERE DUTY BLOCK TO DECK GUSSET HOSE 3/4" X 17.5" #12 FEMALE 90 DEGREE JIC TO #12 FEMALE 90 DEGREE JIC

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 19 Item:

203417 - BRUSH CUTTER, SEVERE DUTY, VALVE BLOCK FOR PISTON MOTORS 150CC, 200CC, 250CC

 Qty Per: 1 Price:
$884.03
Stock:
In Stock
Qty:
Ref: 13 Item:

203867 - BRUSH CUTTER EXCAVATOR SEVERE DUTY DECK GUSSET TO MACHINE HOSE 3/4" X 108" #12 FEMALE 90 DEGREE JIC TO #12 FEMALE 90 DEGREE JIC

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 21 Item:

203810 - BRUSH CUTTER, SEVERE DUTY, MINI EXCAVATOR, 80CC MOTOR MOUNT FLANGE

 Qty Per: 1 Price:
$395.38
Stock:
Low Stock
Qty:
Ref: 14 Item:

203868 - BRUSH CUTTER EXCAVATOR SEVERE DUTY CASE DRAIN TO DECK GUSSET HOSE 3/8" X 10" #6 FEMALE 90 DEGREE JIC TO #6 FEMALE 90 DEGREE JIC

 Qty Per: 1 Price: N/A Stock:
Unavailable

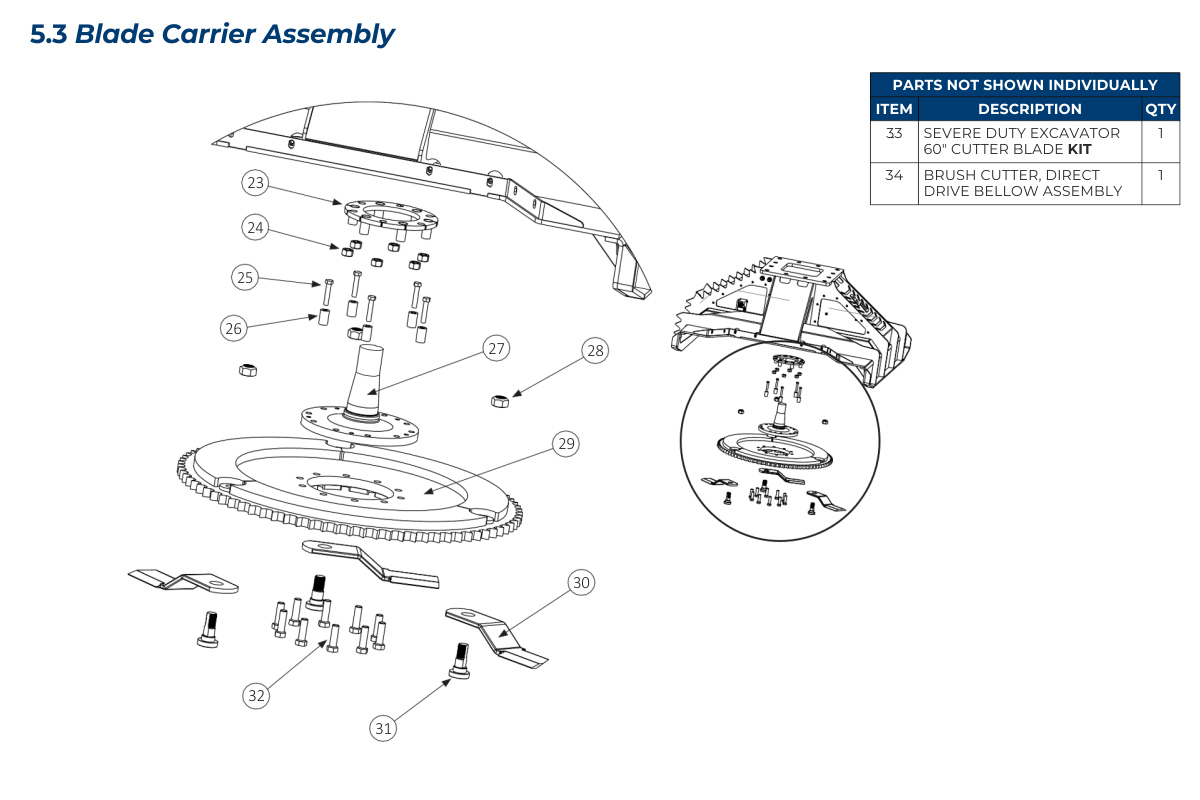

Ref: 23 Item:

203134 - BRUSH CUTTER UPPER SEAL GUARD RING (ring style) 3/4" holes

 Qty Per: 1 Price:
$302.14
Stock:
Low Stock
Qty:
Ref: 15 Item:

203869 - BRUSH CUTTER EXCAVATOR SEVERE DUTY CASE DRAIN MACHINE HOSE 3/8" X 108" #6 FEMALE 90 DEGREE JIC TO #8 MALE STRAIGHT NPT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 24 Item:

216571 - 3/4" LOCK NUT FOR PLOW BOLT ON PICKUP BROOM

 Qty Per: 6 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 17 Item:

299464 - 3/4-10 X 3 BOLT HEX HEAD GRADE 8 ZINC YELLOW CHROMATE PLATED

 Qty Per: 6 Price: N/A Stock:
Unavailable
Ref: 25 Item:

203914 - BRUSH CUTTER WIRE PROTECTION, LOWER BUSHING & BOLT-REQUIRES 5

 Qty Per: 5 Price:
$30.09
Stock:
In Stock
Qty:
Ref: 20 Item:

299425 - BOLT GRADE 8 HEX HEAD 3/8"-16 X 3"

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 27 Item:

203068 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY TAPERED STYLE get S/N (Requires 3/4" blade carrier bolts)

A short selections of unit built in 2022 have straight spindle 203064

Qty Per: 1 Price:
$1,411.00
Stock:
In Stock
Qty:
Ref: 22 Item:

203811 - BRUSH CUTTER, SEVERE DUTY, FLANGE TO HOUSING BOLT

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 28 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 26 Item:

N/A - Wire Protection Bushing (included with #3)

 Qty Per: 5 Price: N/A Stock:
Unavailable
Ref: 30 Item:

203029 - BRUSH CUTTER BLADE SEVERE DUTY EXCAVATOR (13 1/8" LONG x 3/4" THICK) (60" only)

 Qty Per: 3 Price:
$149.36
Stock:
In Stock
Qty:
Ref: 29 Item:

203880 - BRUSH CUTTER SEVERE DUTY EXCAVATOR BLADE CARRIER WITH WEIGHT RING FOR 60"

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 31 Item:

203031 - BRUSH CUTTER BLADE BOLT FITS 3/4" THICK BLADES SEVERE DUTY 60" EXCAVATOR CUTTER ONLY

 Qty Per: 3 Price:
$93.01
Stock:
In Stock
Qty:
Ref: 33 Item:

203029-KIT - SEVERE DUTY EXCAVATOR 60" CUTTER BLADE KIT (3 BLADES W/ HARDWARE)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 32 Item:

299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2"

 Qty Per: 10 Price:
$15.39
Stock:
In Stock
Qty:
Ref: 34 Item:

203109 - BRUSH CUTTER, DIRECT DRIVE BELLOW ASSEMBLY (SMALL STRAIGHT THREAD FOR GREASE OUTLET)

 Qty Per: 1 Price:
$61.09
Stock:
In Stock
Qty:

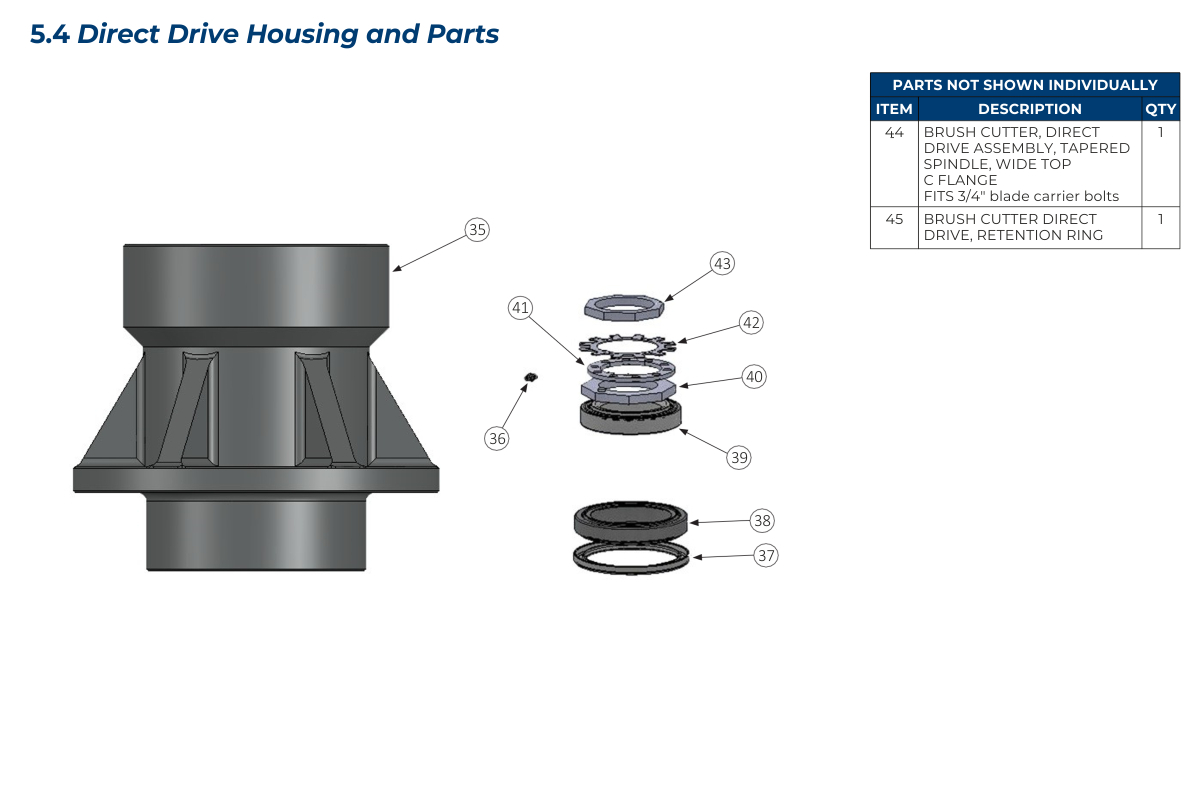

Ref: 35 Item:

203071 - BRUSH CUTTER, DIRECT DRIVE, HOUSING ONLY (LARGE BEARING STYLE)

 Qty Per: 1 Price:
$1,416.00
Stock:
Limited Stock - Call for Availability
Qty:
Ref: 36 Item:

203072 - GREASE ZERK FOR BRUSH CUTTER DIRECT DRIVE HOUSING, PICKUP BROOM

 Qty Per: 1 Price:
$5.33
Stock:
In Stock
Qty:
Ref: 37 Item:

203086 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, LARGE BEARING STYLE (GET S/N) for 3" spindle

A short selections of unit built in 2022 with straight spindles use 203085

Qty Per: 1 Price:
$123.85
Stock:
In Stock
Qty:
Ref: 38 Item:

203074 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE (5" DIAMETER) get S/N for 3" spindle

Select units manufactured in 2022 with straight spindles do not use this bearing, see 203075

Qty Per: 1 Price:
$222.73
Stock:
In Stock
Qty:
Ref: 39 Item:

203075 - BRUSH CUTTER DIRECT DRIVE BEARING AND RACE (4.5" DIAMETER) 2 5/8" spindle requires 2, 3" spindle requires 1x + 1x 203074

A short selections of unit built in 2022; use 2 of this bearing

Qty Per: 1 Price:
$158.72
Stock:
In Stock
Qty:
Ref: 40 Item:

203105 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT LOWER

 Qty Per: 1 Price:
$41.79
Stock:
In Stock
Qty:
Ref: 41 Item:

203095 - BRUSH CUTTER DIRECT DRIVE LOCK RING

 Qty Per: 1 Price:
$96.68
Stock:
In Stock
Qty:
Ref: 42 Item:

203100 - BRUSH CUTTER STAR LOCK WASHER

 Qty Per: 1 Price:
$38.77
Stock:
In Stock
Qty:
Ref: 43 Item:

203090 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT UPPER

 Qty Per: 1 Price:
$32.68
Stock:
In Stock
Qty:
Ref: 44 Item:

203073 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, TAPERED SPINDLE, WIDE TOP HIGH FLOW OR SEVERE DUTY, FITS 3/4" blade carrier bolts

A short selections of unit built in 2022 were built with a straight spindle and need to change to this assembly

Qty Per: 1 Price:
$3,051.00
Stock:
In Stock
Qty:
Ref: 45 Item:

203087 - BRUSH CUTTER DIRECT DRIVE, RETENTION RING (FITS LARGE BEARING STYLE SEAL UNITS)

 Qty Per: 1 Price:
$38.12
Stock:
In Stock
Qty:
