Parts Book

103020

Revision: 000
Ref Item Qty Per Price Stock Qty

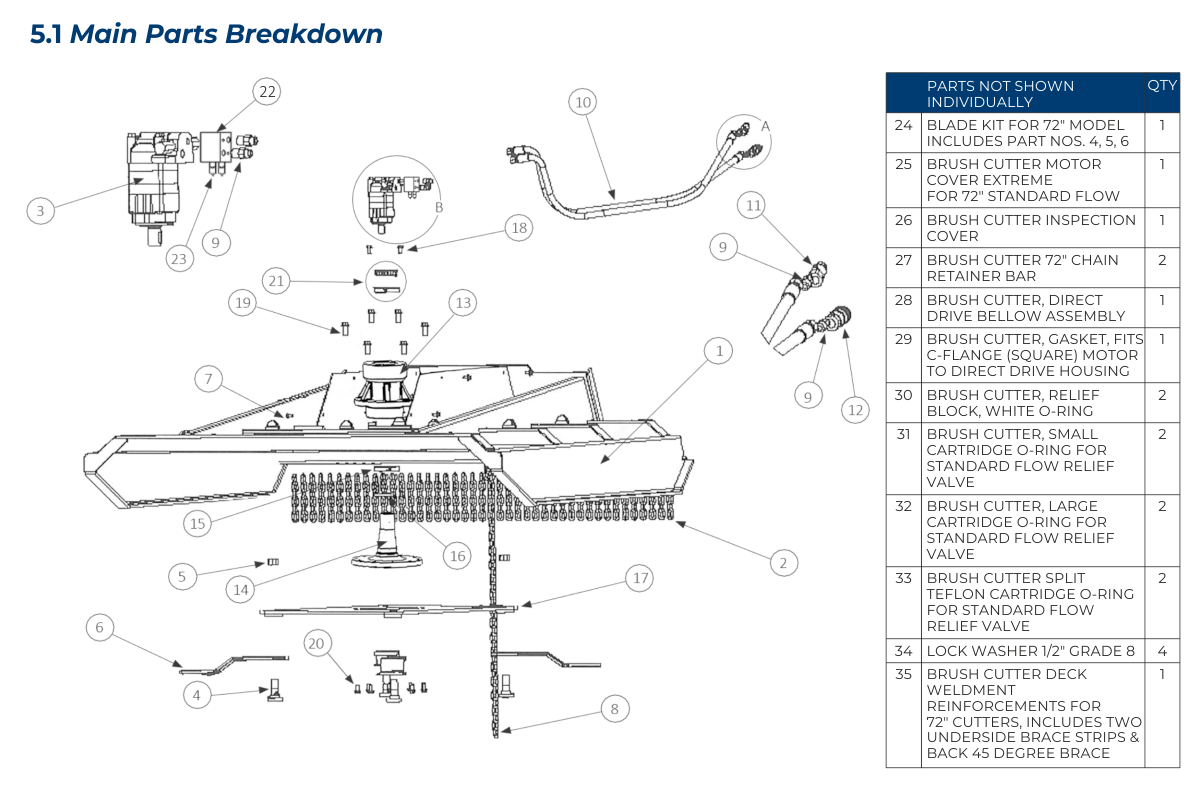

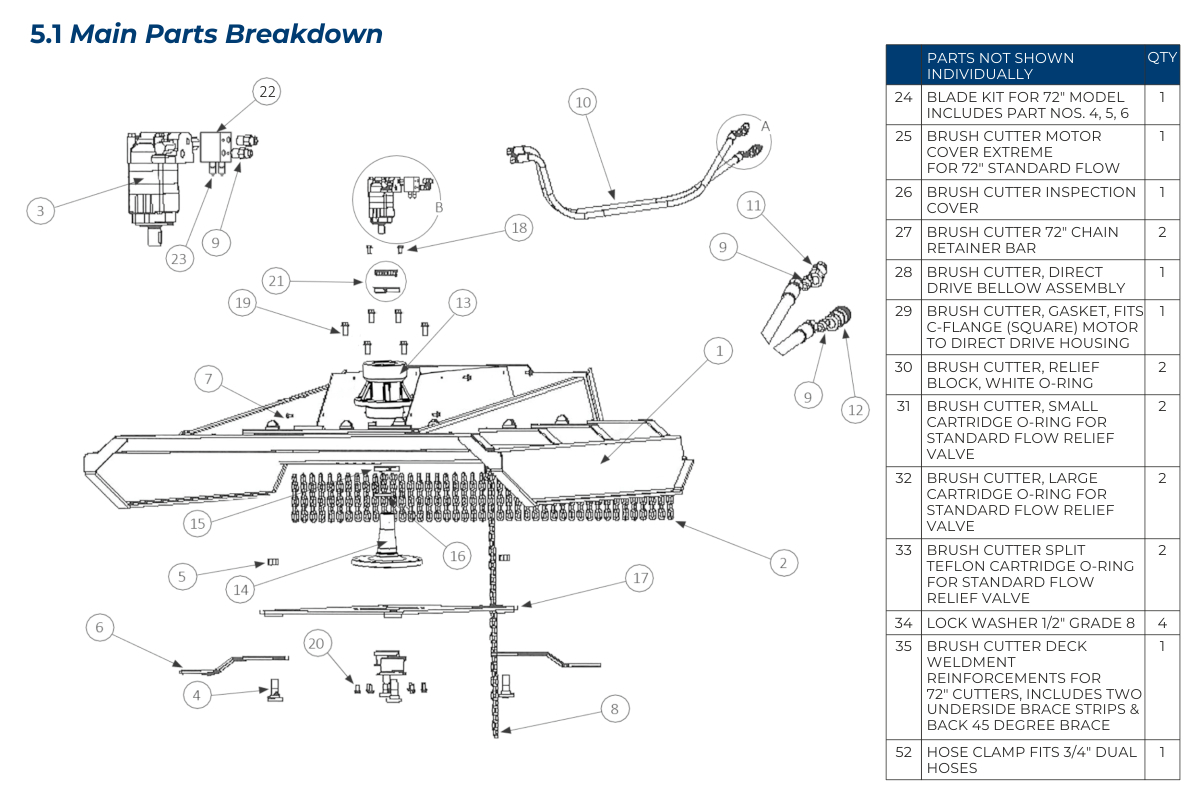

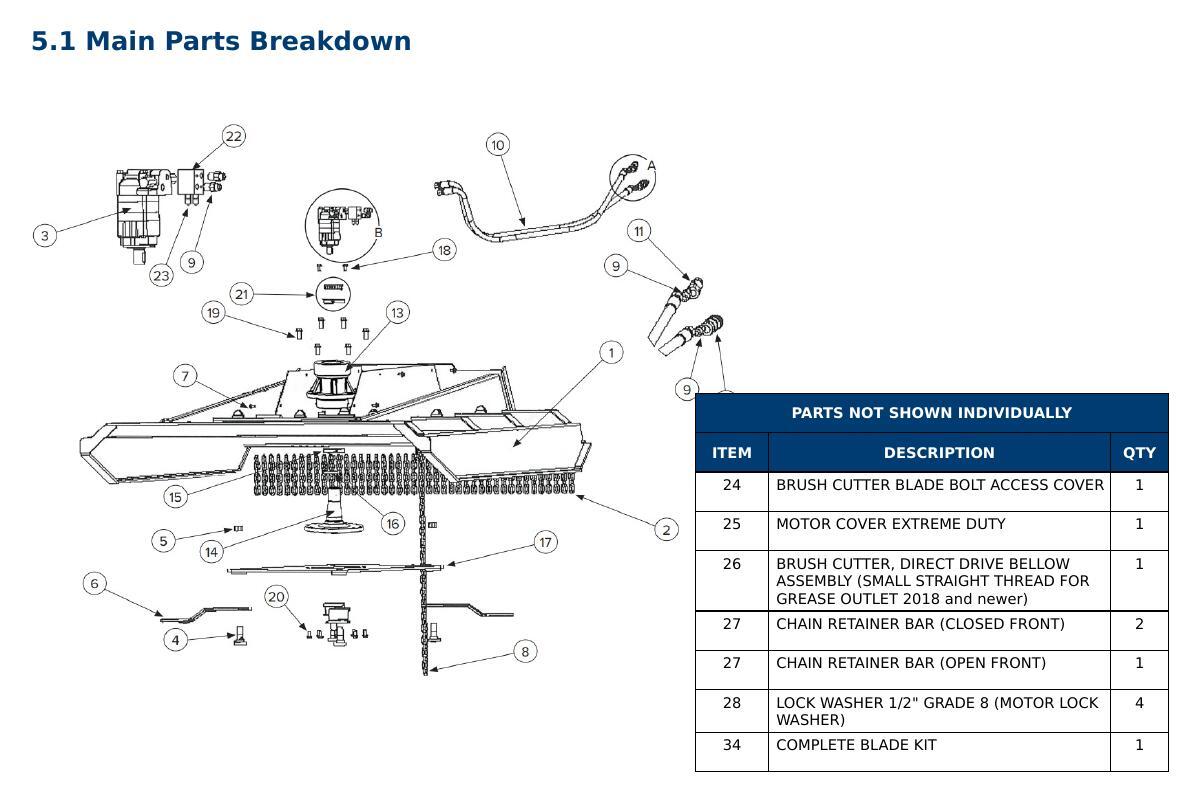

Ref: 2 Item:

203045 - BRUSH CUTTER STD 4 LINK DISCHARGE CHAIN

 Qty Per: 85 Price:
$14.70
Stock:
In Stock
Qty:
Ref: 1 Item:

203505 - BRUSH CUTTER DECK WELDMENT 72" EXTREME DUTY CLOSED FRONT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 3 Item:

203768 - BRUSH CUTTER, MOTOR, 160CC C-FLANGE, WITH CROSSPORT RELIEF VALVE

2018 and older units with magneto (oval) motor flange use 203711-1

Qty Per: 1 Price:
$1,997.00
Stock:
In Stock
Qty:
Ref: 34 Item:

299830 - LOCK WASHER 1/2" GRADE 8

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 4 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$36.21
Stock:
In Stock
Qty:
Ref: 46 Item:

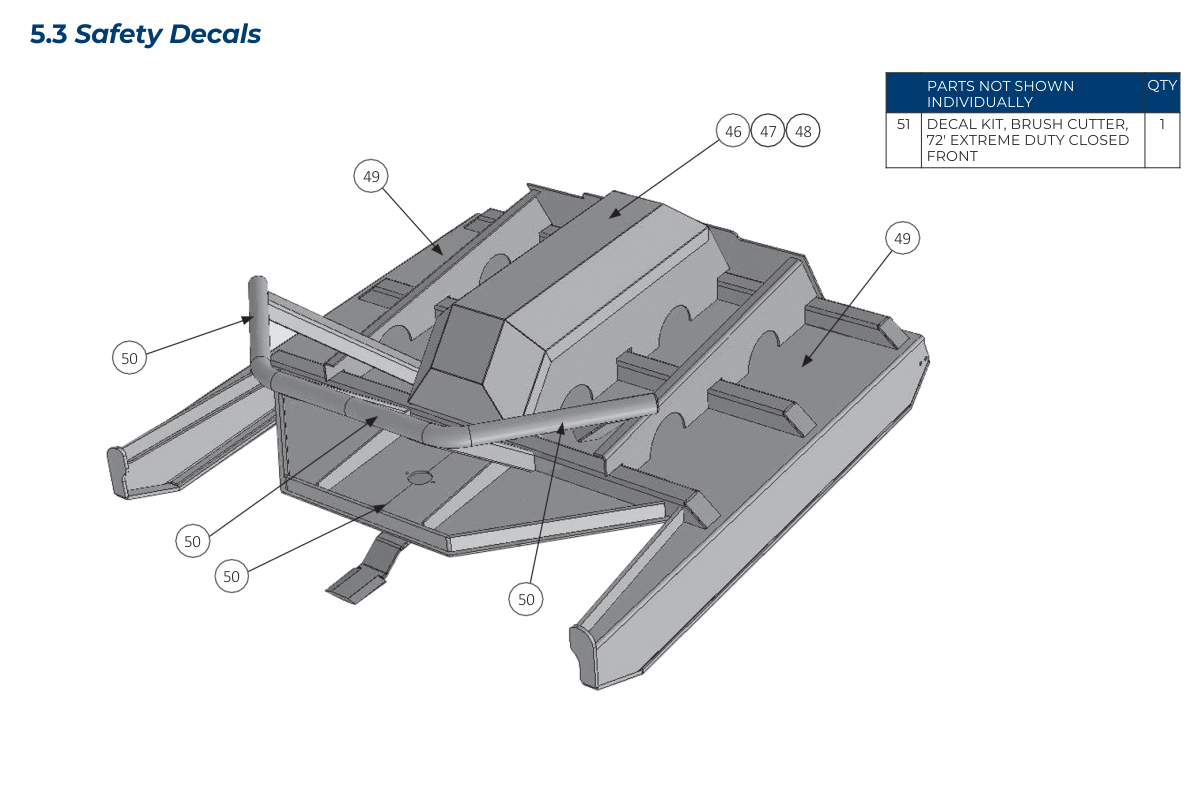

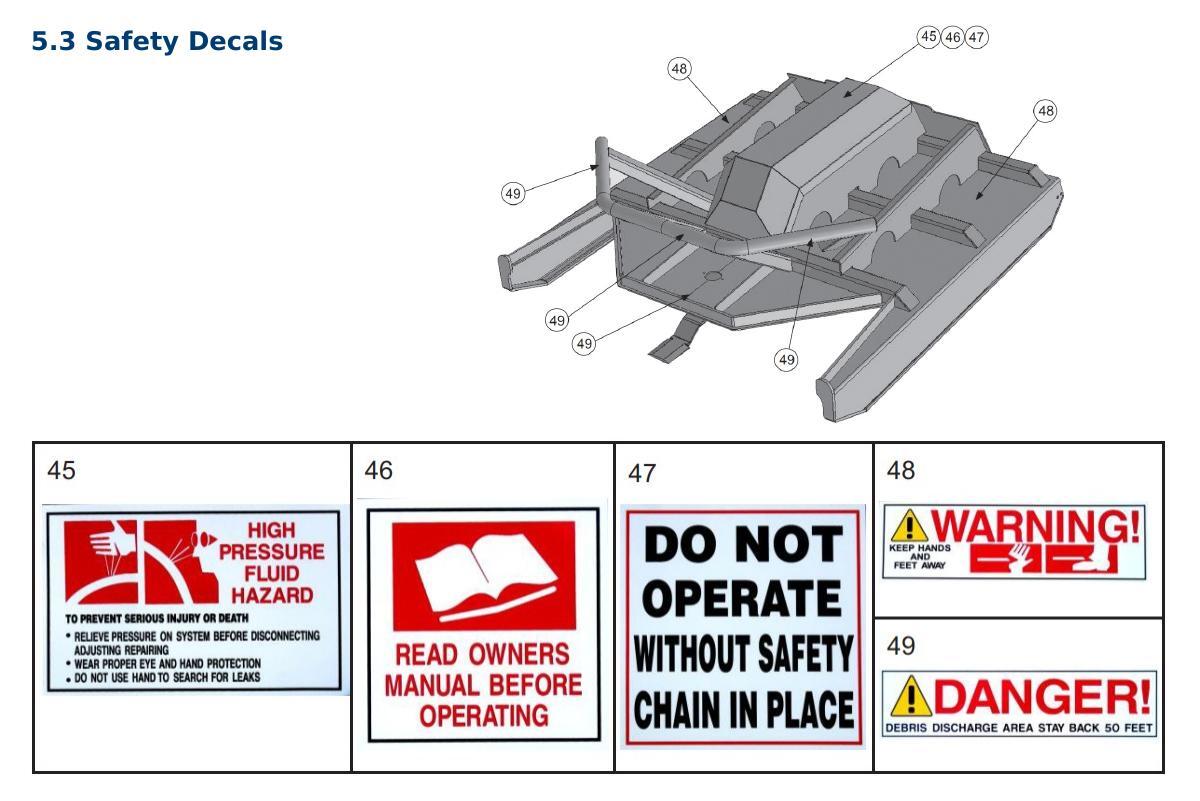

BD-007 - DECAL, HIGH PRESSURE FLUID HAZARD 3.0 X 4.75

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 5 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$10.15
Stock:
In Stock
Qty:
Ref: 47 Item:

BD-001 - DECAL, READ OWNERS MANUAL 3x3

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 6 Item:

203027 - BRUSH CUTTER BLADE, 72" EXTREME AND HEAVY DUTY note: get length if going on a 60" unit

For Kit, use 203027E-KIT

Qty Per: 4 Price:
$74.39
Stock:
In Stock
Qty:
Ref: 48 Item:

BD-070 - DECAL DO NOT OPERATE WITHOUT SAFETY CHAIN IN PLACE BD-03 IN MANUALS

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 7 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 10 Price:
$3.65
Stock:
In Stock
Qty:
Ref: 49 Item:

BD-081 - Decal - WARNING Keep Hands and Feet Away 3"x12"

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 8 Item:

203048 - BRUSH CUTTER SAFETY CHAIN AND CLEVIS

 Qty Per: 1 Price:
$106.55
Stock:
In Stock
Qty:
Ref: 50 Item:

BD-055 - DECAL, DANGER DEBRIS DISCHARGE AREA STAY BACK 200 FEET 3.0 X 11.9062

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 9 Item:

295010-M12JIC-M12ORB - HYDRAULIC STRAIGHT FITTING MALE #12 JIC X MALE #12 ORING BOSS

 Qty Per: 4 Price:
$10.55
Stock:
In Stock
Qty:
Ref: 51 Item:

BDKIT-03002 - DECAL KIT, BRUSH CUTTER, 72' EXTREME DUTY CLOSED FRONT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 10 Item:

203039 - BRUSH CUTTER HOSE SET ASSEMBLY, LOW FLOW W/SLEEVE NO COUPLERS (Heavy Duty Mini Ex and Standard Flow Extreme Duty Skid Steer) STRAIGHT ENDS

 Qty Per: 1 Price:
$438.26
Stock:
In Stock
Qty:
Ref: 11 Item:

224012 - COUPLER, MALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$64.17
Stock:
In Stock
Qty:
Ref: 12 Item:

224011 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$76.68
Stock:
In Stock
Qty:
Ref: 13 Item:

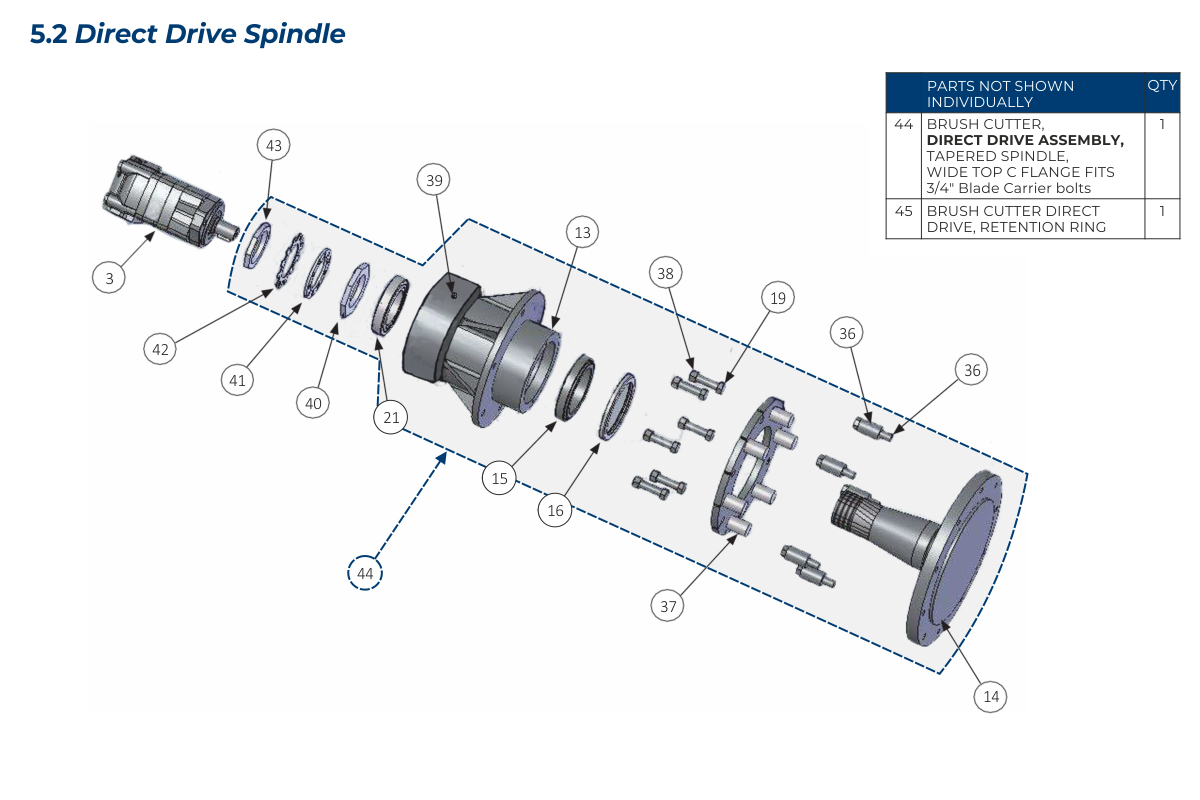

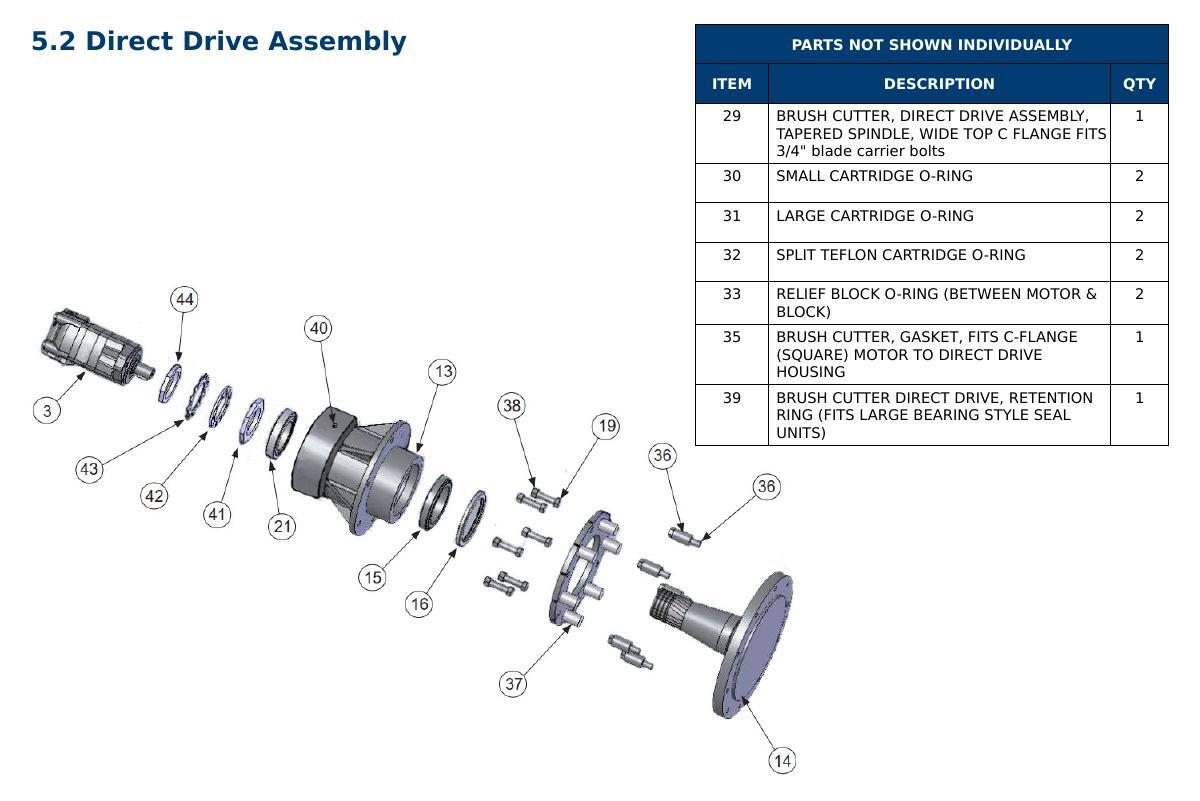

203076 - BRUSH CUTTER DIRECT DRIVE HOUSING ONLY, WIDE TOP C-FLANGE

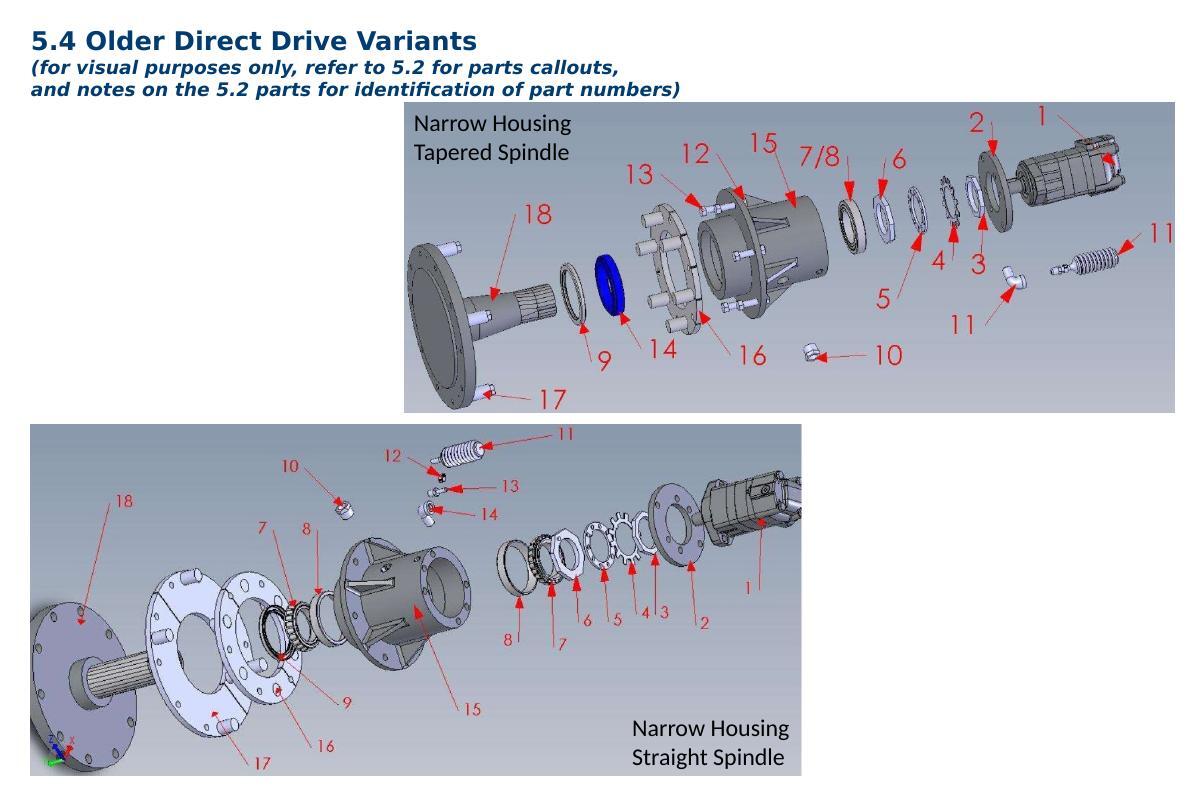

Units manufactured 2017 and older with 6-bolt fange on top of direct drive will need a replacement direct drive assembly 203073

Qty Per: 1 Price:
$1,286.00
Stock:
Low Stock
Qty:
Ref: 14 Item:

203068 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY TAPERED STYLE get S/N (Requires 3/4" blade carrier bolts)

Units manufactured 2014 and older and a selection in 2022 have straight spindle 203064

Qty Per: 1 Price:
$1,279.00
Stock:
In Stock
Qty:
Ref: 15 Item:

203074 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE (5" DIAMETER) get S/N for 3" spindle

Units manufactured 2014 and older and a selection in 2022 with straight spindles do not use this bearing, see 203075

Qty Per: 1 Price:
$202.08
Stock:
In Stock
Qty:
Ref: 16 Item:

203086 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, LARGE BEARING STYLE (GET S/N) for 3" spindle

Units manufactured 2014 and older and a selection in 2022 with straight spindles use 203085

Qty Per: 1 Price:
$112.37
Stock:
In Stock
Qty:
Ref: 17 Item:

203044 - BRUSH CUTTER, EXTREME 72" BLADE CARRIER 4 BLADE (3/4" bolt holes)

Units made 2016 and earlier with 1/2" blade carrier bolts use 203040

Qty Per: 1 Price:
$1,136.00
Stock:
In Stock
Qty:
Ref: 18 Item:

299433 - BOLT GRADE 8 HEX HEAD 1/2"-13 X 2"

Units manufactured 2017 and older use 203167

Qty Per: 4 Price:
$6.60
Stock:
In Stock
Qty:
Ref: 19 Item:

203056 - BRUSH CUTTER HOUSING BOLT & NUT 3/4" (short for ring style wire protection)

Units 2014 & older with 1/2" housing bolts use 203061 & 299655

Qty Per: 6 Price:
$11.02
Stock:
In Stock
Qty:
Ref: 20 Item:

299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2"

Units made 2016 & earlier with 1/2" blade carrier bolts use 203062 and 299655

Qty Per: 10 Price:
$13.96
Stock:
In Stock
Qty:
Ref: 21 Item:

203075 - BRUSH CUTTER DIRECT DRIVE BEARING AND RACE (4.5" DIAMETER) 2 5/8" spindle requires 2, 3" spindle requires 1x + 1x 203074

Units manufactured 2014 and older and a selection in 2022 use 2 of this bearing

Qty Per: 1 Price:
$144.01
Stock:
In Stock
Qty:
Ref: 22 Item:

203770 - BRUSH CUTTER, CROSS PORT RELIEF VALVE BLOCK, FITS STANDARD FLOW MOTORS

Reverse compatible for all previous side mounted standard flow relief valve assemblies

Qty Per: 1 Price:
$803.77
Stock:
In Stock
Qty:
Ref: 23 Item:

203136-1 - BRUSH CUTTER VALVE CARTRIDGE FOR RELIEF BLOCK VALVE ON ALL SS & EXCAVATOR HEAVY & EXTREME DUTY STANDARD FLOW BRUSH CUTTER MOTORS

 Qty Per: 2 Price:
$168.63
Stock:
In Stock
Qty:
Ref: 24 Item:

203027E-KIT - EXTREME DUTY 72" CUTTER BLADE KIT (4 W/ HARDWARE) 3203027E

 Qty Per: 1 Price:
$468.44
Stock:
In Stock
Qty:
Ref: 25 Item:

203005 - BRUSH CUTTER MOTOR COVER EXTREME FOR 72" STANDARD FLOW

 Qty Per: 1 Price:
$466.79
Stock:
Low Stock
Qty:
Ref: 26 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$36.34
Stock:
In Stock
Qty:
Ref: 27 Item:

203055 - BRUSH CUTTER 72" CHAIN RETAINER BAR(FITS HD AND EXT. DUTY)

 Qty Per: 2 Price:
$136.44
Stock:
In Stock
Qty:
Ref: 28 Item:

203109 - BRUSH CUTTER, DIRECT DRIVE BELLOW ASSEMBLY (SMALL STRAIGHT THREAD FOR GREASE OUTLET)

Units manufactured between 2015 & 2017 had no bellows. 2014 & older use 203108

Qty Per: 1 Price:
$55.43
Stock:
In Stock
Qty:
Ref: 29 Item:

203775 - BRUSH CUTTER, GASKET, FITS C-FLANGE (SQUARE) MOTOR TO DIRECT DRIVE HOUSING

Units manufactured before 2018 with oval motor flange use 203152, 203150, 203151

Qty Per: 1 Price:
$37.65
Stock:
In Stock
Qty:
Ref: 30 Item:

203908 - BRUSH CUTTER, RELIEF BLOCK, WHITE O-RING

 Qty Per: 2 Price:
$21.03
Stock:
In Stock
Qty:
Ref: 31 Item:

203916 - BRUSH CUTTER, SMALL CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

Units manufactured before 2014 with integrated relief valves do not have replacement seals available

Qty Per: 2 Price:
$12.53
Stock:
In Stock
Qty:
Ref: 32 Item:

203917 - BRUSH CUTTER, LARGE CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

Units manufactured before 2014 with integrated relief valves do not have replacement seals available

Qty Per: 2 Price:
$16.35
Stock:
In Stock
Qty:
Ref: 33 Item:

203919 - BRUSH CUTTER SPLIT TEFLON CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

Units manufactured before 2014 with integrated relief valves do not have replacement seals available

Qty Per: 2 Price:
$1.28
Stock:
In Stock
Qty:
Ref: 35 Item:

203512 - BRUSH CUTTER DECK WELDMENT REINFORCEMENTS FOR 72" CUTTERS INCLUDES TWO UNDERSIDE BRACE STRIPS AND BA

 Qty Per: 1 Price:
$286.59
Stock:
Low Stock
Qty:
Ref: 36 Item:

203914 - BRUSH CUTTER WIRE PROTECTION, LOWER BUSHING & BOLT-REQUIRES 5

Units manufactured before 2014 with 10 bolt holes on the drive spindle use 203130 (1x)

Qty Per: 5 Price:
$27.30
Stock:
In Stock
Qty:
Ref: 37 Item:

203134 - BRUSH CUTTER UPPER SEAL GUARD RING (ring style) 3/4" holes

Units manufactured 2014 and before with 1/2" housing bolts, use 203135

Qty Per: 1 Price:
$274.13
Stock:
In Stock
Qty:
Ref: 38 Item:

299657 - 3/4-10 STOVER NUT GRADE C ZINC PLATED

 Qty Per: 6 Price:
$2.95
Stock:
In Stock
Qty:
Ref: 39 Item:

203072 - GREASE ZERK FOR BRUSH CUTTER DIRECT DRIVE HOUSING, PICKUP BROOM

Units manufactured 2014 and older with a site glass do not have a grease zerk. Sight glass is 203915

Qty Per: 1 Price:
$4.84
Stock:
In Stock
Qty:
Ref: 40 Item:

203105 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT LOWER

 Qty Per: 1 Price:
$37.92
Stock:
In Stock
Qty:
Ref: 41 Item:

203095 - BRUSH CUTTER DIRECT DRIVE LOCK RING

 Qty Per: 1 Price:
$87.72
Stock:
In Stock
Qty:
Ref: 42 Item:

203100 - BRUSH CUTTER STAR LOCK WASHER

 Qty Per: 1 Price:
$35.18
Stock:
In Stock
Qty:
Ref: 43 Item:

203090 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT UPPER

 Qty Per: 1 Price:
$29.65
Stock:
In Stock
Qty:
Ref: 44 Item:

203073 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, TAPERED SPINDLE, WIDE TOP HIGH FLOW OR SEVERE DUTY, FITS 3/4" blade carrier bolts

Units manufactured 2014 and older and a selection in 2022 were built with a straight spindle and need to change to this assembly

Qty Per: 1 Price:
$2,768.00
Stock:
In Stock
Qty:
Ref: 45 Item:

203087 - BRUSH CUTTER DIRECT DRIVE, RETENTION RING (FITS LARGE BEARING STYLE SEAL UNITS)

 Qty Per: 1 Price:
$34.59
Stock:
In Stock
Qty:
