Parts Book

103040

Revision: 000
Ref Item Qty Per Price Stock Qty

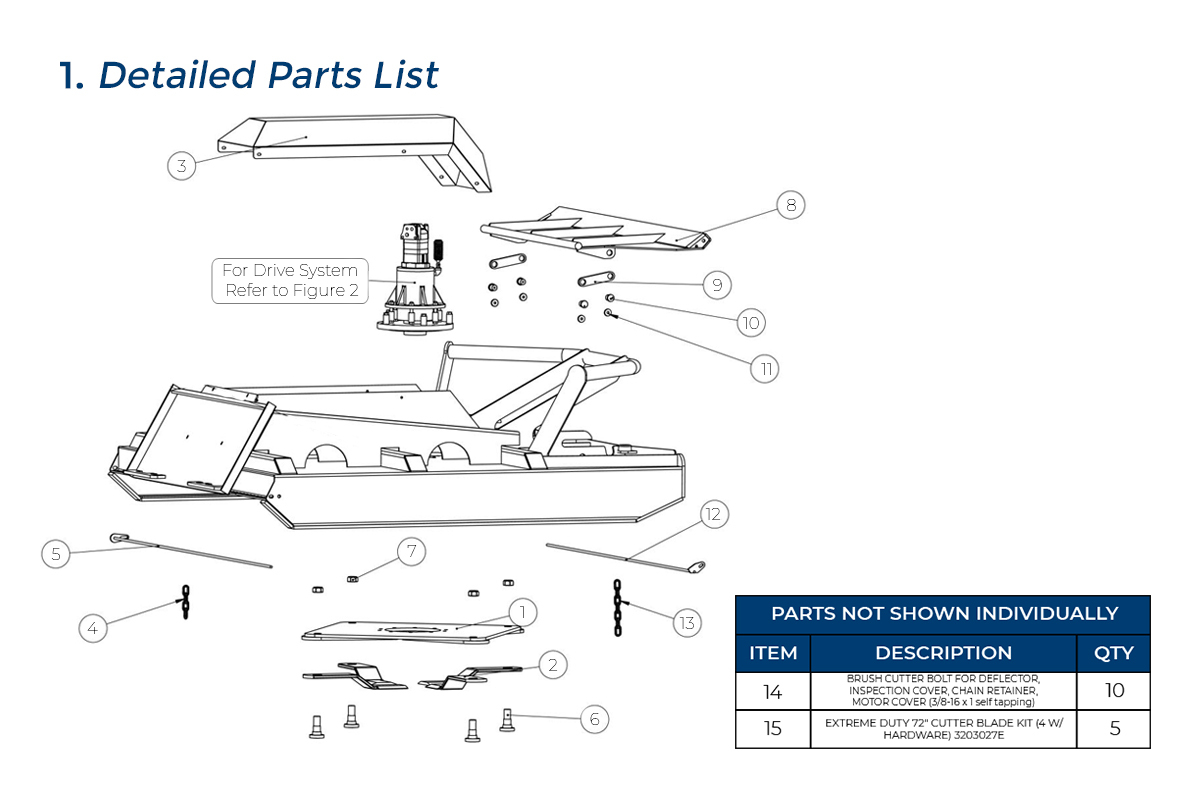

Ref: 1 Item:

203040 - BRUSH CUTTER, EXTREME 72" BLADE CARRIER 4 BLADE (1/2" bolt holes)

 Qty Per: 1 Price:
$1,252.00
Stock:
In Stock
Qty:
Ref: 8 Item:

203310 - BRUSH CUTTER HINGED FRONT, PIVOT DECK

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 2 Item:

203027 - BRUSH CUTTER BLADE, 72" EXTREME AND HEAVY DUTY note: get length if going on a 60" unit

For Kit, use 203027E-KIT

Qty Per: 4 Price:
$81.99
Stock:
In Stock
Qty:
Ref: 12 Item:

203330 - BRUSH CUTTER HINGED FRONT, FRONT SAFETY CHAIN RETAINER BAR

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 3 Item:

203005 - BRUSH CUTTER MOTOR COVER EXTREME FOR 72" STANDARD FLOW

 Qty Per: 1 Price:
$514.49
Stock:
Low Stock
Qty:
Ref: 32 Item:

203151 - BRUSH CUTTER FLANGE GASKET ROUND FOR FLANGE TO HOUSING (ROUND GASKET - <2018 CUTTERS WITH SMALL 6-BOLT HOUSING)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 4 Item:

203045 - BRUSH CUTTER STD 4 LINK DISCHARGE CHAIN

 Qty Per: 42 Price:
$16.20
Stock:
In Stock
Qty:
Ref: 33 Item:

203152 - BRUSH CUTTER MOTOR TO FLANGE GASKET FOR MAGNETO MOTORS

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 5 Item:

203055 - BRUSH CUTTER 72" CHAIN RETAINER BAR(FITS HD AND EXT. DUTY)

 Qty Per: 1 Price:
$150.38
Stock:
In Stock
Qty:
Ref: 6 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 7 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 9 Item:

203315 - BRUSH CUTTER HINGED FRONT, PIVOT LINK ARM

 Qty Per: 2 Price:
$70.57
Stock:
In Stock
Qty:
Ref: 10 Item:

203320 - BRUSH CUTTER HINGED FRONT, PIVOT LINK BOLT, THREADED PIN AND GREASE ZERK

 Qty Per: 4 Price:
$69.83
Stock:
In Stock
Qty:
Ref: 11 Item:

203325 - BRUSH CUTTER HINGED FRONT, PIVOT LINK WASHER

 Qty Per: 4 Price:
$31.65
Stock:
In Stock
Qty:
Ref: 13 Item:

203335 - BRUSH CUTTER HINGED FRONT, 7 LINK DISCHARGE CHAIN

 Qty Per: 41 Price:
$19.71
Stock:
In Stock
Qty:
Ref: 14 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 10 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 15 Item:

203027E-KIT - EXTREME DUTY 72" CUTTER BLADE KIT (4 W/ HARDWARE) 3203027E

 Qty Per: 1 Price:
$468.44
Stock:
In Stock
Qty:
Ref: 16 Item:

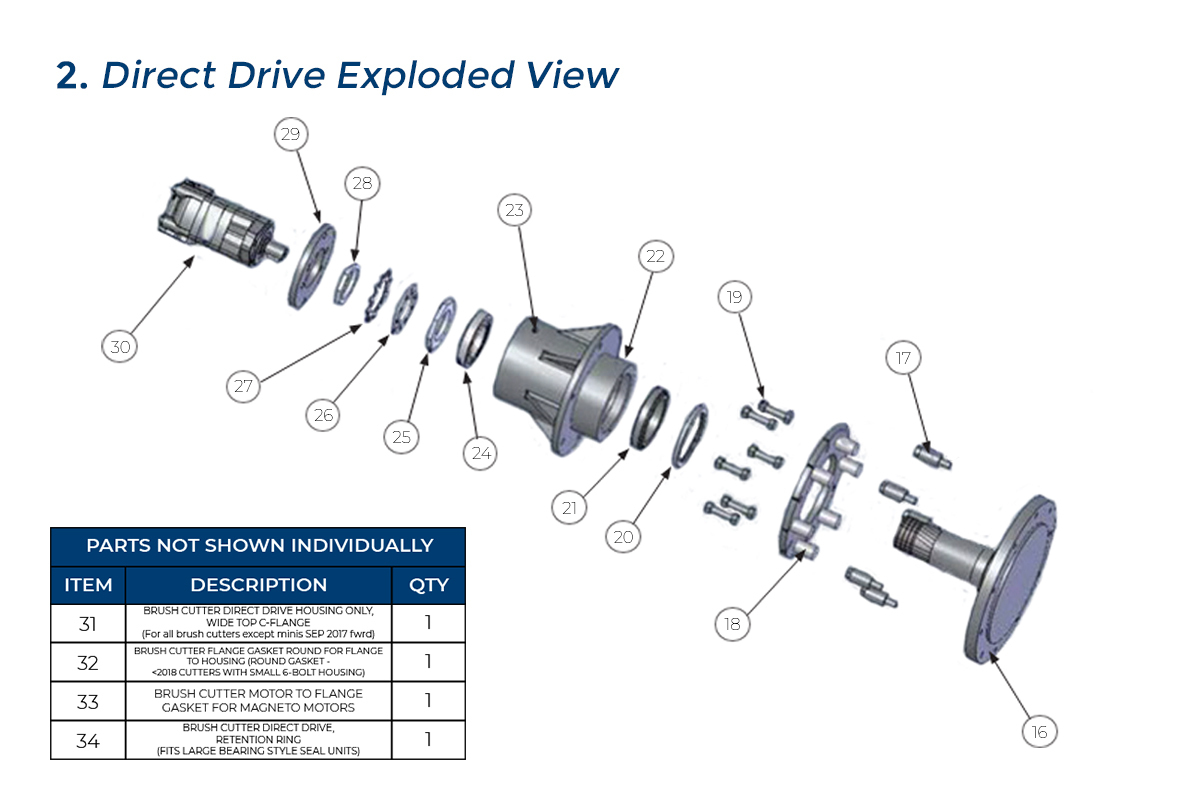

203068 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY TAPERED STYLE get S/N (Requires 3/4" blade carrier bolts)

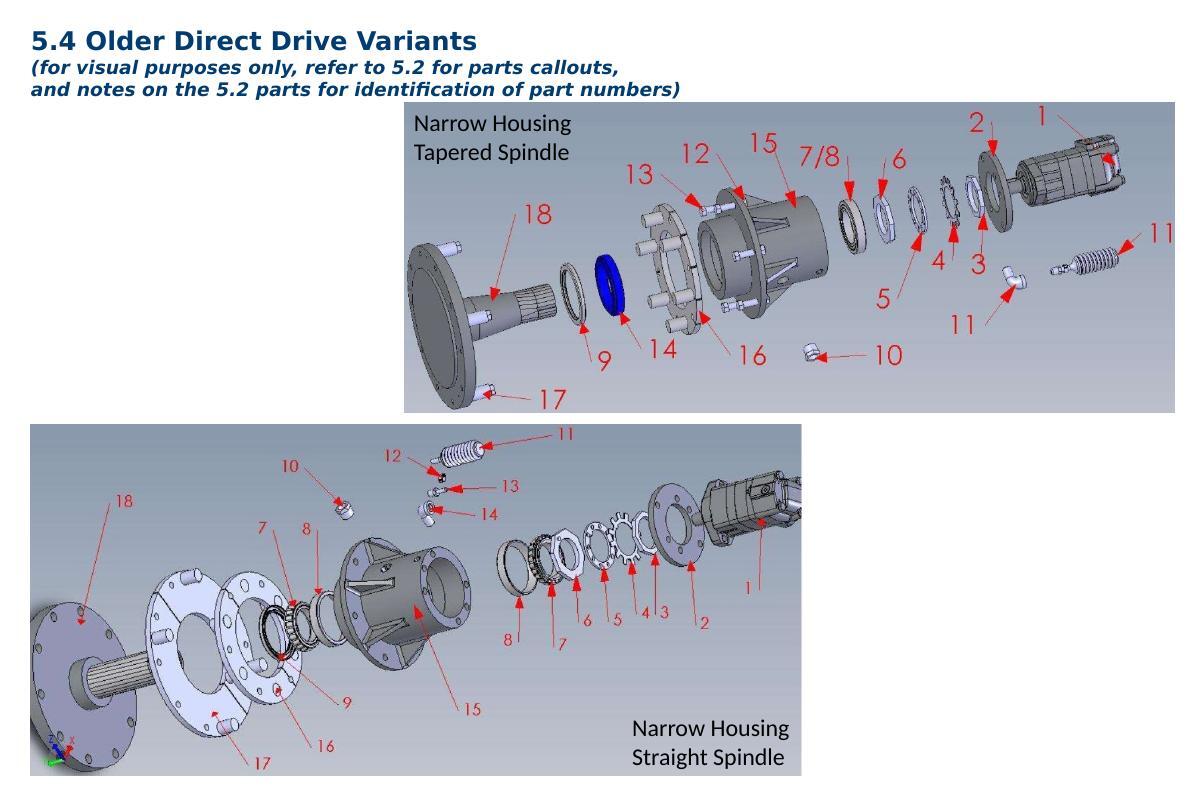

Units manufactured 2014 and older have straight spindle 203064

Qty Per: 1 Price:
$1,411.00
Stock:
In Stock
Qty:
Ref: 17 Item:

203914 - BRUSH CUTTER WIRE PROTECTION, LOWER BUSHING & BOLT-REQUIRES 5

Units manufactured before 2014 with 10 bolt holes on the drive spindle use 203130 (1x)

Qty Per: 5 Price:
$30.09
Stock:
In Stock
Qty:
Ref: 18 Item:

203134 - BRUSH CUTTER UPPER SEAL GUARD RING (ring style) 3/4" holes

Units manufactured 2014 and before with 1/2" housing bolts, use 203135

Qty Per: 1 Price:
$302.14
Stock:
In Stock
Qty:
Ref: 19 Item:

203056 - BRUSH CUTTER HOUSING BOLT & NUT 3/4" (short for ring style wire protection)

Units 2014 & older with 1/2" housing bolts use 203061 & 299655

Qty Per: 6 Price:
$12.15
Stock:
In Stock
Qty:
Ref: 20 Item:

203086 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, LARGE BEARING STYLE (GET S/N) for 3" spindle

Units manufactured 2014 and older with straight spindles use 203085

Qty Per: 1 Price:
$123.85
Stock:
In Stock
Qty:
Ref: 21 Item:

203074 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE (5" DIAMETER) get S/N for 3" spindle

Units manufactured 2014 and older with straight spindles do not use this bearing, see 203075

Qty Per: 1 Price:
$222.73
Stock:
In Stock
Qty:
Ref: 22 Item:

203071 - BRUSH CUTTER, DIRECT DRIVE, HOUSING ONLY (LARGE BEARING STYLE)

Replace with 203076 and add a motor 203768

Qty Per: 1 Price:
$1,416.00
Stock:
Limited Stock - Call for Availability
Qty:
Ref: 23 Item:

203072 - GREASE ZERK FOR BRUSH CUTTER DIRECT DRIVE HOUSING, PICKUP BROOM

Units manufactured 2014 and older with a site glass do not have a grease zerk. Sight glass is 203915

Qty Per: 1 Price:
$5.33
Stock:
In Stock
Qty:
Ref: 24 Item:

203075 - BRUSH CUTTER DIRECT DRIVE BEARING AND RACE (4.5" DIAMETER) 2 5/8" spindle requires 2, 3" spindle requires 1x + 1x 203074

Units manufactured 2014 and olderuse 2 of this bearing

Qty Per: 1 Price:
$158.72
Stock:
In Stock
Qty:
Ref: 25 Item:

203105 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT LOWER

 Qty Per: 1 Price:
$41.79
Stock:
In Stock
Qty:
Ref: 26 Item:

203095 - BRUSH CUTTER DIRECT DRIVE LOCK RING

 Qty Per: 1 Price:
$96.68
Stock:
In Stock
Qty:
Ref: 27 Item:

203100 - BRUSH CUTTER STAR LOCK WASHER

 Qty Per: 1 Price:
$38.77
Stock:
In Stock
Qty:
Ref: 28 Item:

203090 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT UPPER

 Qty Per: 1 Price:
$32.68
Stock:
In Stock
Qty:
Ref: 29 Item:

203150 - BRUSH CUTTER MOTOR FLANGE (FITS MAGNETO MOTORS)

 Qty Per: 1 Price:
$151.49
Stock:
In Stock
Qty:
Ref: 30 Item:

203711-1 - BRUSH CUTTER, HYDRAULIC MOTOR 160cc W/ HIGH VOLUME CROSS PORT RELIEF VALVE, LARGE OUTPUT SHAFT MAGNETO MOUNT(includes fittings)

 Qty Per: 1 Price:
$2,201.00
Stock:
In Stock
Qty:
Ref: 31 Item:

203076 - BRUSH CUTTER DIRECT DRIVE HOUSING ONLY, WIDE TOP C-FLANGE

If replacing a narrow housing, order also 203768

Qty Per: 1 Price:
$1,417.00
Stock:
In Stock
Qty:
Ref: 34 Item:

203087 - BRUSH CUTTER DIRECT DRIVE, RETENTION RING (FITS LARGE BEARING STYLE SEAL UNITS)

 Qty Per: 1 Price:
$38.12
Stock:
In Stock
Qty:
