Home | Parts | Serial Number Lookup | Parts Book: 103120 (000)

Parts Book

103120

Revision: 000
Ref Item Qty Per Price Stock Qty

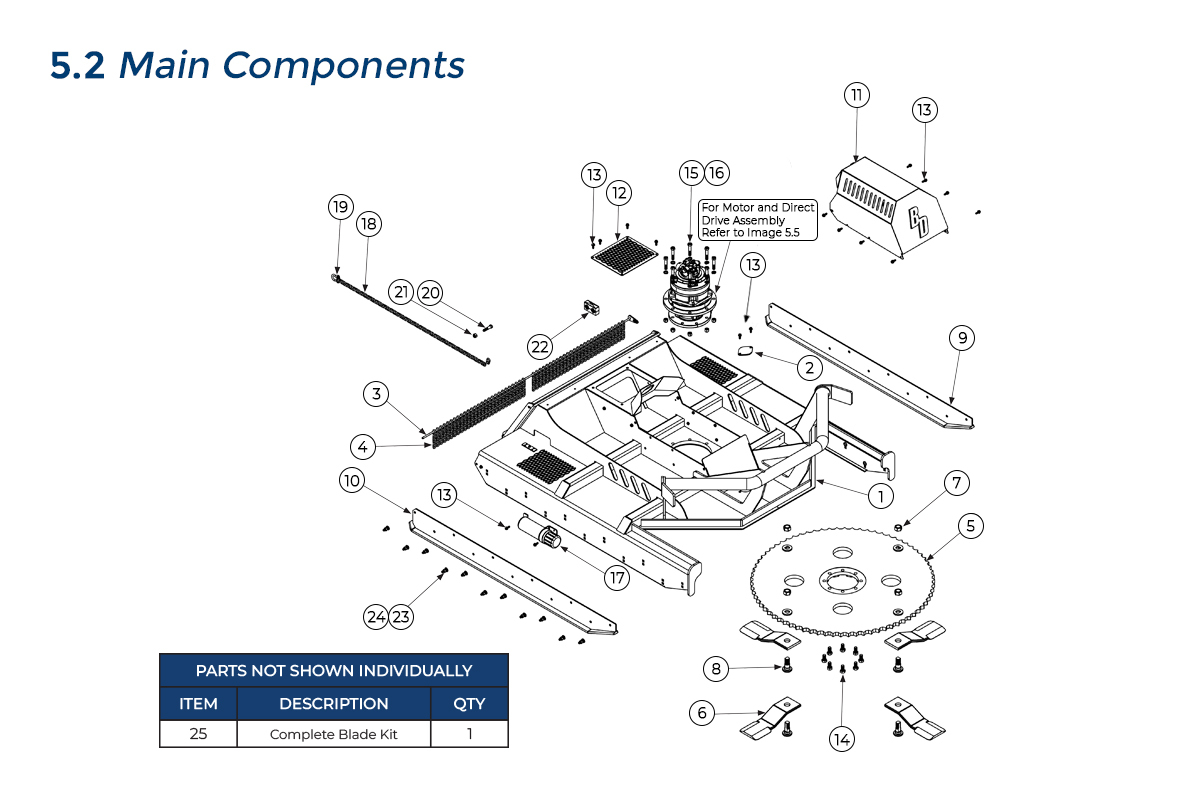

Ref: 2 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:
Ref: 1 Item:

203401 - 72" Deck Weldment

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 3 Item:

203055 - BRUSH CUTTER 72" CHAIN RETAINER BAR(FITS HD AND EXT. DUTY)

 Qty Per: 1 Price:
$150.38
Stock:
In Stock
Qty:
Ref: 9 Item:

203430 - Left Skid Shoe

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 4 Item:

203045 - BRUSH CUTTER STD 4 LINK DISCHARGE CHAIN

 Qty Per: 55 Price:
$16.20
Stock:
In Stock
Qty:
Ref: 15 Item:

Included with Item 16 - 3/4" Nut

 Qty Per: 8 Price: N/A Stock:
Unavailable
Ref: 5 Item:

203439 - BRUSH CUTTER SEVERE DUTY BLADE CARRIER 72" WITH 8 ACCESS HOLES

 Qty Per: 1 Price:
$3,074.00
Stock:
Limited Stock - Call for Availability
Qty:
Ref: 19 Item:

299340 - Steel Clevis & 7/16" Pin Shackle (Included with Item #20)

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 6 Item:

203025 - BRUSH CUTTER BLADE, SEVERE DUTY

For complete blade kit with hardware, use 203025-KIT

Qty Per: 4 Price:
$149.93
Stock:
In Stock
Qty:
Ref: 20 Item:

299414 - 9/16"–12 x 2 1/2" Bolt Hex Head Grade 8

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 7 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 21 Item:

299619 - 9/16"–12 Lock Nut Grade 8

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 8 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 4 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 34 Item:

299425 - 3/8"–16 x 3" Bolt Hex Head Grade 8

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 10 Item:

203432 - BRUSH CUTTER, SEVERE DUTY, SKID SHOE, RIGHT SIDE

 Qty Per: 1 Price:
$558.21
Stock:
Low Stock
Qty:
Ref: 38 Item:

- Pressure Gauge Hose 1/4" ID

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 11 Item:

203404 - BRUSH CUTTER 72" SEVERE DUTY SERIES 1 MOTOR COVER

 Qty Per: 1 Price:
$585.62
Stock:
Low Stock
Qty:
Ref: 40 Item:

295010-M12JIC-M16ORB - Hydraulic Straight Fitting Male #12 JIC x Male #16 O–Ring Boss

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 12 Item:

203436 - BRUSH CUTTER SEVERE DUTY SERIES 2 ACCESS COVER

 Qty Per: 1 Price:
$173.45
Stock:
Low Stock
Qty:
Ref: 49 Item:

203469 - Motor to Direct Drive Adapter Flange

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 13 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 11 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 51 Item:

203811 - Flange to Direct Drive Bolts

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 14 Item:

299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2"

 Qty Per: 10 Price:
$15.39
Stock:
In Stock
Qty:
Ref: 55 Item:

203232 - Flange to Direct Drive Gasket

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 16 Item:

203056 - BRUSH CUTTER HOUSING BOLT & NUT 3/4" (short for ring style wire protection)

 Qty Per: 8 Price:
$12.15
Stock:
In Stock
Qty:
Ref: 72 Item:

Included with item 71 - Bushing (Lower Wire Guard)

 Qty Per: 5 Price: N/A Stock:
Unavailable
Ref: 17 Item:

216402 - STORAGE TUBE FOR MANUAL

 Qty Per: 1 Price:
$24.53
Stock:
In Stock
Qty:
Ref: 75 Item:

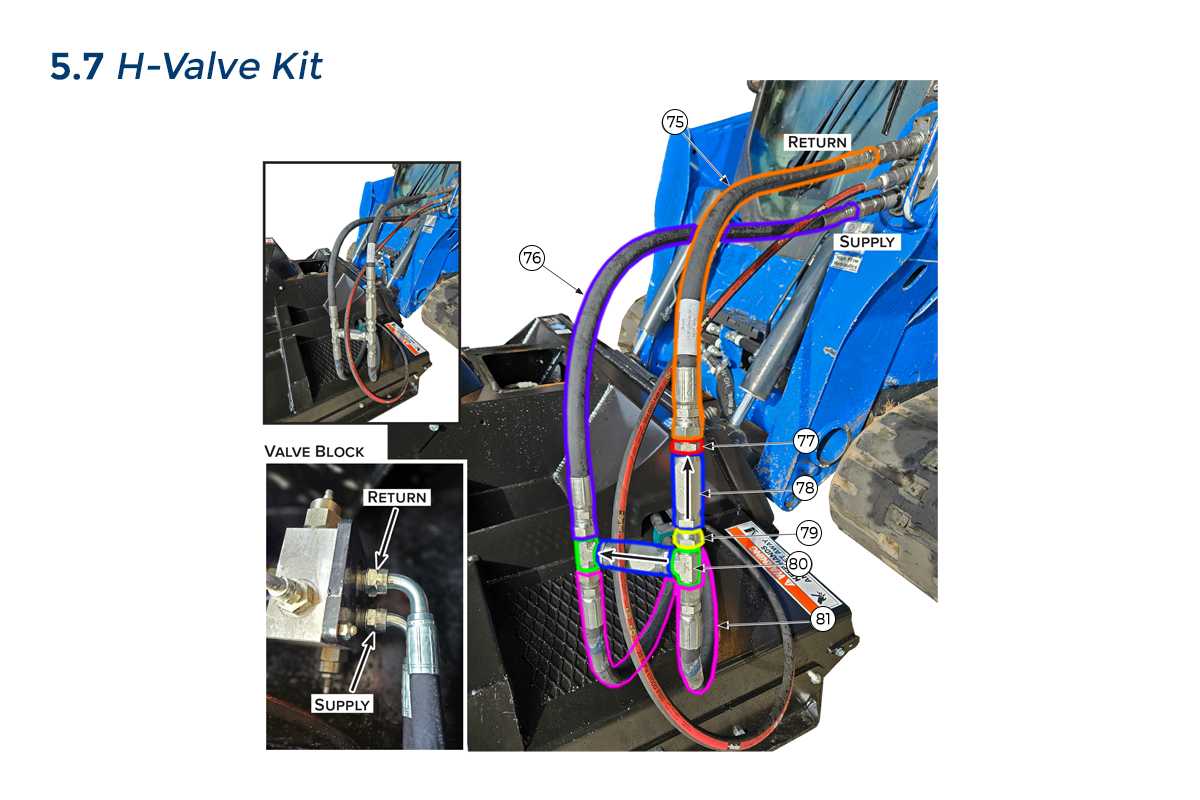

203448 - Hose, 36" OAL 3/4" ID 12FJX x 12 FJX 4000 PSI

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 18 Item:

203048 - BRUSH CUTTER SAFETY CHAIN AND CLEVIS

 Qty Per: 1 Price:
$117.44
Stock:
In Stock
Qty:
Ref: 76 Item:

203449 - Hose, 41" OAL 3/4" ID 12FJX x 12 FJX 4000 PSI

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 22 Item:

206825 - HOSE CLAMP FITS 1" DUAL HOSES (5/16-18 x 2 3/8" BOLT)

 Qty Per: 1 Price:
$88.34
Stock:
In Stock
Qty:
Ref: 79 Item:

295010-M12ORB-F12JICS - Hydraulic Straight Fitting Male #12 O–Ring Boss to Female #12 JIC

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 23 Item:

299336 - CARRIAGE BOLT 1/2-13 X 1 1/2" GRADE 8

 Qty Per: 20 Price:
$6.80
Stock:
In Stock
Qty:
Ref: 80 Item:

295050-M12JIC-M12JICM12ORB - Hydraulic Tee Fitting Male #12 JIC x Male #12 JIC x Male #12 O–Ring Boss

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 24 Item:

299655 - STOVER NUT GRADE 8 1/2-13 (FITS CYLINDER ON SEVERE DUTY HYDRAULIC PALLET FORK)

 Qty Per: 20 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 81 Item:

203447 - Hose, 51" OAL 3/4" OAL 12FJX 90 to 12 FJX 4000 PSI

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 25 Item:

203025-KIT - SEVERE DUTY 72" CUTTER BLADE KIT (4 BLADES W/ HARDWARE) 3203025

 Qty Per: 1 Price:
$715.02
Stock:
In Stock
Qty:
Ref: 82 Item:

BD-057 - 3.0" x 17.0" Decal, Blue Diamond

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 26 Item:

203410 - BRUSH CUTTER, SEVERE DUTY, HOSE KIT WITH COUPLERS (MACHINE SIDE - does not include Case Drain or Hose Covers - Add 203413 if needed)

 Qty Per: 1 Price:
$954.90
Stock:
Low Stock
Qty:
Ref: 83 Item:

BD-060 - 2.4375” x 3.375” Decal, Blue Diamond Attachments

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 27 Item:

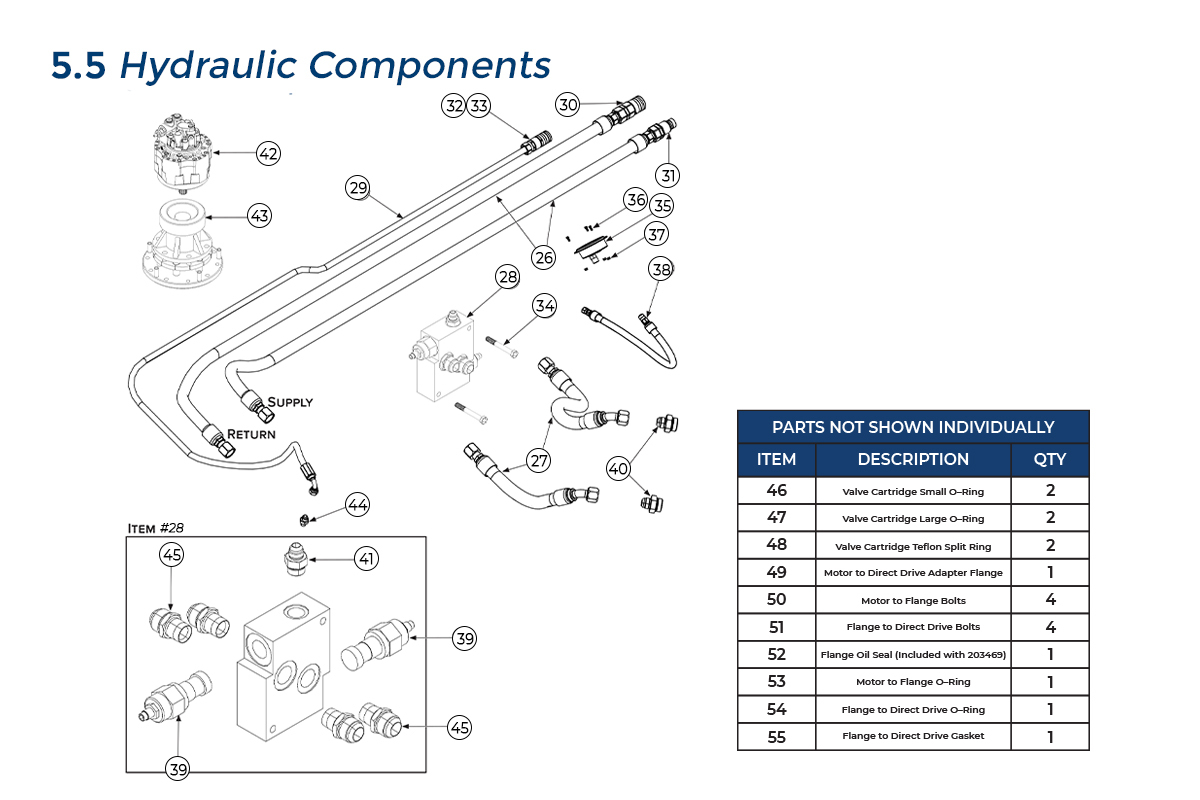

203429 - BRUSH CUTTER SEVERE DUTY HOSE ONLY TO FIT BETWEEN MOTOR AND RELIEF BLOCK (REQ'S 2)

 Qty Per: 2 Price:
$291.15
Stock:
In Stock
Qty:
Ref: 84 Item:

BD-118 - 1.5" x 8.1" Decal, Severe Duty

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 28 Item:

203417 - BRUSH CUTTER, SEVERE DUTY, VALVE BLOCK FOR PISTON MOTORS 150CC, 200CC, 250CC

 Qty Per: 1 Price:
$884.03
Stock:
In Stock
Qty:
Ref: 85 Item:

BD-070 - Decal, Do Not Operate Without Safety Chain in Place

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 29 Item:

203413 - BRUSH CUTTER, SKID STEER SEVERE DUTY, CASE DRAIN LINE

 Qty Per: 1 Price:
$300.35
Stock:
In Stock
Qty:
Ref: 86 Item:

BD-081 - 3.0" x 12.0" Decal, Warning Keep Hands and Feet Away

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 30 Item:

224011 - COUPLER, FEMALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$92.97
Stock:
In Stock
Qty:
Ref: 87 Item:

BD-007 - DECAL, HIGH PRESSURE FLUID HAZARD 3.0 X 4.75

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 31 Item:

224012 - COUPLER, MALE FLAT FACE STYLE, 1/2" body, 3/4" O-RING #12

 Qty Per: 1 Price:
$77.80
Stock:
In Stock
Qty:
Ref: 88 Item:

BD-055 - DECAL, DANGER DEBRIS DISCHARGE AREA STAY BACK 200 FEET 3.0 X 11.9062

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 32 Item:

224060 - COUPLER, FEMALE FLAT FACE, 3/8" BODY, #8 ORING

Confirm whether Male or Female is required for the host machine

Qty Per: 1 Price:
$86.70
Stock:
In Stock
Qty:
Ref: 89 Item:

BD-087 - 2.0" x 4.0" Decal, Grease Drive Every 250 Hours

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 33 Item:

224062 - COUPLER, MALE FLAT FACE, 3/8" BODY, #8 ORING

Confirm whether Male or Female is required for the host machine

Qty Per: 1 Price:
$57.38
Stock:
In Stock
Qty:
Ref: 90 Item:

BD-072 -

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 35 Item:

203427 - BRUSH CUTTER SEVERE DUTY PRESSURE GAUGE AND HOSE TO MOTOR

 Qty Per: 1 Price:
$476.31
Stock:
In Stock
Qty:
Ref: 91 Item:

BD-092 - 1.5” x 2.0” Decal, Warranty Registration QR

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 36 Item:

203427-1B - BRUSH CUTTER SEVERE DUTY PRESSURE GAUGE BOLT 10-24 X 1/2"

 Qty Per: 3 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 92 Item:

BD-001 - 3.0” x 3.0” Decal, Read Owner’s Manual

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 37 Item:

203427-1N - BRUSH CUTTER SEVERE DUTY PRESSURE GAUGE NUT 10-24

 Qty Per: 3 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 93 Item:

BD-082 - 2.0" x 3.0" Decal, Attention Disassembly of Motor Voids Warranty

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 39 Item:

203424 - BRUSH CUTTER, HIGH FLOW & SEVERE DUTY, LARGE VALVE CARTRIDGE

 Qty Per: 2 Price:
$263.23
Stock:
In Stock
Qty:
Ref: 41 Item:

295010-M10ORB-M06JIC - HYDRAULIC STRAIGHT FITTING MALE #10 ORING BOSS X MALE #6 JIC

 Qty Per: 1 Price:
$11.10
Stock:
Low Stock
Qty:
Ref: 42 Item:

203402-H - BRUSH CUTTER SEVERE DUTY PISTON MOTOR 150cc WITH HIGH PRESSURE SEAL)

 Qty Per: 1 Price:
$3,226.00
Stock:
In Stock
Qty:
Ref: 43 Item:

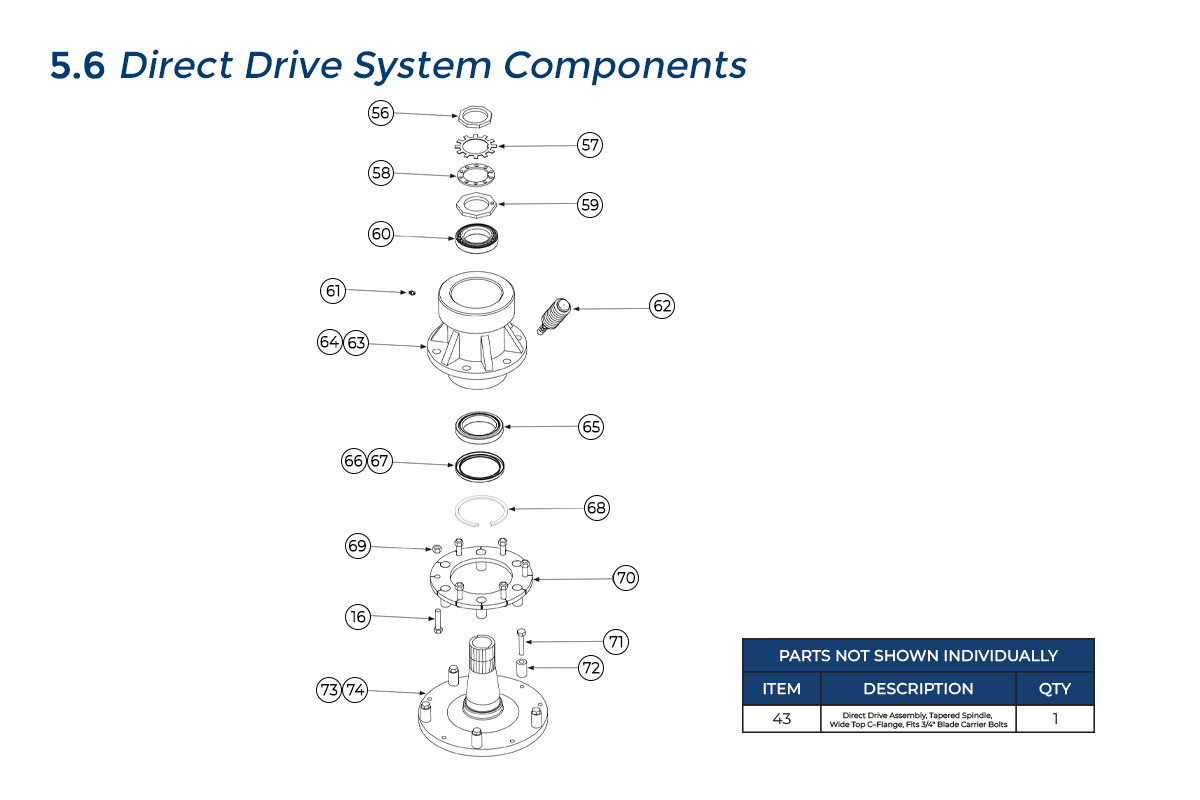

203073 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, TAPERED SPINDLE, WIDE TOP HIGH FLOW OR SEVERE DUTY, FITS 3/4" blade carrier bolts

 Qty Per: 1 Price:
$3,051.00
Stock:
In Stock
Qty:
Ref: 44 Item:

203460 - BRUSH CUTTER, HYDRAULIC FITTING FOR CASE DRAIN, FITS 80CC

 Qty Per: 1 Price:
$32.39
Stock:
Low Stock
Qty:
Ref: 45 Item:

295010-M12JIC-M12ORB - HYDRAULIC STRAIGHT FITTING MALE #12 JIC X MALE #12 ORING BOSS

 Qty Per: 4 Price:
$11.63
Stock:
In Stock
Qty:
Ref: 46 Item:

203424-S - BRUSH CUTTER HIGH FLOW VALVE CARTRIDGE O-RING - SMALL (END)

 Qty Per: 2 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 47 Item:

203424-L - BRUSH CUTTER HIGH FLOW VALVE CARTRIDGE O-RING - LARGE (MIDDLE)

 Qty Per: 2 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 48 Item:

203424-T - BRUSH CUTTER HIGH FLOW VALVE CARTRIDGE SPLIT RING

 Qty Per: 2 Price:
$2.13
Stock:
In Stock
Qty:
Ref: 50 Item:

203415 - BRUSH CUTTER, SEVERE DUTY, MOTOR TO FLANGE BOLT

 Qty Per: 4 Price:
$6.11
Stock:
In Stock
Qty:
Ref: 52 Item:

203451 - BRUSH CUTTER SEVERE DUTY MOTOR FLANGE RING OIL SEAL HC05 150 200 250CC

 Qty Per: 1 Price:
$48.90
Stock:
In Stock
Qty:
Ref: 53 Item:

203807 - BRUSH CUTTER MINI EXCAVATOR SEVERE DUTY 80CC PISTON MOTOR INTERNAL ORING

 Qty Per: 1 Price:
$26.74
Stock:
In Stock
Qty:
Ref: 54 Item:

203453 - BRUSH CUTTER SEVERE DUTY MOTOR SAE C-FLANGE O-RING HC05 150 200 250CC

 Qty Per: 1 Price:
$7.69
Stock:
Low Stock
Qty:
Ref: 56 Item:

203090 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT UPPER

 Qty Per: 1 Price:
$32.68
Stock:
In Stock
Qty:
Ref: 57 Item:

203100 - BRUSH CUTTER STAR LOCK WASHER

 Qty Per: 1 Price:
$38.77
Stock:
In Stock
Qty:
Ref: 58 Item:

203095 - BRUSH CUTTER DIRECT DRIVE LOCK RING

 Qty Per: 1 Price:
$96.68
Stock:
In Stock
Qty:
Ref: 59 Item:

203105 - BRUSH CUTTER DIRECT DRIVE SPINDLE NUT LOWER

 Qty Per: 1 Price:
$41.79
Stock:
In Stock
Qty:
Ref: 60 Item:

203075 - BRUSH CUTTER DIRECT DRIVE BEARING AND RACE (4.5" DIAMETER) 2 5/8" spindle requires 2, 3" spindle requires 1x + 1x 203074

If you have a straight spindle, you have 2 of this bearing and no 203074

Qty Per: 1 Price:
$158.72
Stock:
In Stock
Qty:
Ref: 61 Item:

203072 - GREASE ZERK FOR BRUSH CUTTER DIRECT DRIVE HOUSING, PICKUP BROOM

 Qty Per: 1 Price:
$5.33
Stock:
In Stock
Qty:
Ref: 62 Item:

203109 - BRUSH CUTTER, DIRECT DRIVE BELLOW ASSEMBLY (SMALL STRAIGHT THREAD FOR GREASE OUTLET)

 Qty Per: 1 Price:
$61.09
Stock:
In Stock
Qty:
Ref: 63 Item:

203076 - BRUSH CUTTER DIRECT DRIVE HOUSING ONLY, WIDE TOP C-FLANGE

 Qty Per: 1 Price:
$1,417.00
Stock:
Low Stock
Qty:
Ref: 64 Item:

203071 - BRUSH CUTTER, DIRECT DRIVE, HOUSING ONLY (LARGE BEARING STYLE)

If you have a straight spindle and this part needs to be replaced, contact Blue Diamond Product Support to update your unit

Qty Per: 1 Price:
$1,416.00
Stock:
Limited Stock - Call for Availability
Qty:
Ref: 65 Item:

203074 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE (5" DIAMETER) get S/N for 3" spindle

Straight spindles do not use this bearing. See 203075

Qty Per: 1 Price:
$222.73
Stock:
In Stock
Qty:
Ref: 66 Item:

203086 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, LARGE BEARING STYLE (GET S/N) for 3" spindle

 Qty Per: 1 Price:
$123.85
Stock:
In Stock
Qty:
Ref: 67 Item:

203085 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL FOR STRAIGHT SPINDLE (Manufacturing date prior to 11/2014 LAST BUILD 1114313, Check SN 2XXXX build date)

 Qty Per: 1 Price:
$83.84
Stock:
In Stock
Qty:
Ref: 68 Item:

203087 - BRUSH CUTTER DIRECT DRIVE, RETENTION RING (FITS LARGE BEARING STYLE SEAL UNITS)

Fits with 203086 only

Qty Per: 1 Price:
$38.12
Stock:
In Stock
Qty:
Ref: 69 Item:

205210 - AUGER, BIT RETAINER NUT, 3/4"

Included with Item 14

Qty Per: 6 Price:
$3.26
Stock:
In Stock
Qty:
Ref: 70 Item:

203134 - BRUSH CUTTER UPPER SEAL GUARD RING (ring style) 3/4" holes

 Qty Per: 1 Price:
$302.14
Stock:
In Stock
Qty:
Ref: 71 Item:

203914 - BRUSH CUTTER WIRE PROTECTION, LOWER BUSHING & BOLT-REQUIRES 5

 Qty Per: 5 Price:
$30.09
Stock:
In Stock
Qty:
Ref: 73 Item:

203068 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY TAPERED STYLE get S/N (Requires 3/4" blade carrier bolts)

 Qty Per: 1 Price:
$1,411.00
Stock:
In Stock
Qty:
Ref: 74 Item:

203077 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY FORGED STRAIGHT SHAFT 3/4" BOLT HOLES

If you have a straight spindle and this part needs to be replaced, contact Blue Diamond Product Support to update your unit

Qty Per: 1 Price:
$1,291.00
Stock:
Low Stock
Qty:
Ref: 77 Item:

295010-M12JIC-M12ORB - HYDRAULIC STRAIGHT FITTING MALE #12 JIC X MALE #12 ORING BOSS

Upgrade option

Qty Per: 1 Price:
$11.63
Stock:
In Stock
Qty:
Ref: 78 Item:

203475 - SEVERE DUTY 72" SERIES 2 BRUSH CUTTER H VALVE CHECK VALVE ONLY - NO FITTINGS

Upgrade option

Qty Per: 2 Price:
$126.96
Stock:
In Stock
Qty:
